Storage Cabinet (Half-Hanging Door Panel Type)
The Half-Hanging Door Storage Cabinet by Guang'ermei Precision Components is engineered for workshop 6S management and efficient tool/supply access. It integrates drawer storage, door-side pegboard, and heavy-duty shelving into a triple-function design that maximizes space utilization and operational convenience.
Highlights
- Dual drawers + dual adjustable shelves + half-hanging door pegboard for three-dimensional organized storage
- Each drawer supports up to 80 kg; each shelf supports up to 100 kg — robust and reliable construction
- 1.0–1.2 mm cold-rolled steel cabinet body + 1.5 mm reinforced drawer front panels — industrial-grade durability
- Standard RAL5015 blue powder coating, compatible with 6S visual management requirements
Specifications
- Overall Dimensions (W × D × H)
- 1000 × 600 × 1800 mm
- Drawer Specification

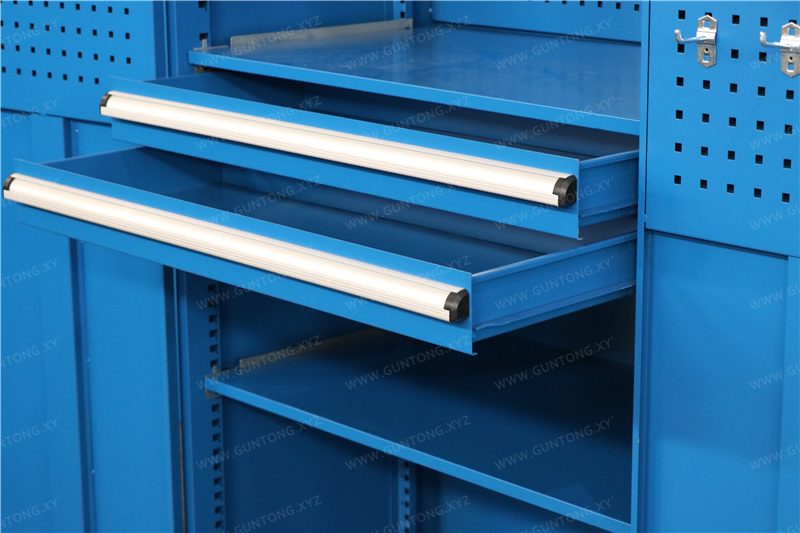

- 2 drawers, 100 mm height, stamped single-rail structure, max load ≤80 kg per drawer
- Shelf Configuration
- 2 adjustable shelves, max load ≤100 kg per shelf
- Pegboard Configuration
- 2 half-hanging square-hole pegboards on inner door side (25 mm hole spacing), compatible with standard hooks
- Main Body Material
- Cabinet body
- Surface Treatment
- Electrostatic powder coating, standard color RAL5015 (blue)
Multi-Functional Storage Cabinet for Lean Production
The Half-Hanging Door Panel Type Storage Cabinet, independently developed by Guang'ErMei Precision Components, is suitable for scenarios with clear requirements for material classification, visual management, and quick access, such as electronic assembly lines, automotive component workstations, mold repair areas, and training teaching sites. The product adopts a modular structural design, supporting coordinated layout with workbenches, tool carts, and other workstation equipment, helping enterprises achieve standardized, visualized, and lightweight on-site management upgrades.
Core Functional Features

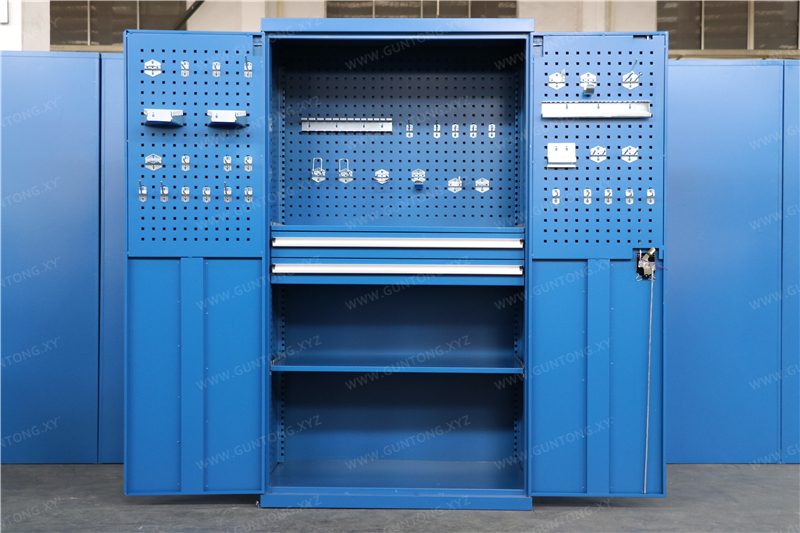

- Dual Drawer + Double-Layer Board + Half-Hanging Board Combined Layout:The lower section is equipped with 2 stamped single-rail drawers (80kg load capacity per drawer), the middle section features 2 adjustable layer boards (100kg load capacity per layer), and the upper cabinet door is embedded with 2 half-hanging square-hole pegboards, meeting the needs for three-dimensional hanging and layered storage of small tools, fixtures, and measuring instruments;
- Industrial-Grade Board Craftsmanship:The main cabinet body is made of 1.0mm or 1.2mm cold-rolled steel plate, with drawer panels thickened to 1.5mm, ensuring structural stability and anti-deformation capability under long-term high-frequency use;
- Compatible with 6S On-Site Management:Uniform blue powder coating (RAL5015 standard color), flat and scratch-resistant surface, supports label sticking and area identification, facilitating the implementation of fixed-position, fixed-location, and fixed-quantity management standards.
Typical Application Scenarios
This storage cabinet is widely used in:
• Segregated storage of fixtures/ESD protective products on electronic manufacturing production lines
• Management of auxiliary materials such as screws/washers/clips at automotive component assembly workstations
• Storage of measuring instruments, cutting tools, and clamping accessories beside fitter benches in hardware mold factories
• Centralized management of tool kits and teaching consumables in vocational college training workshops
