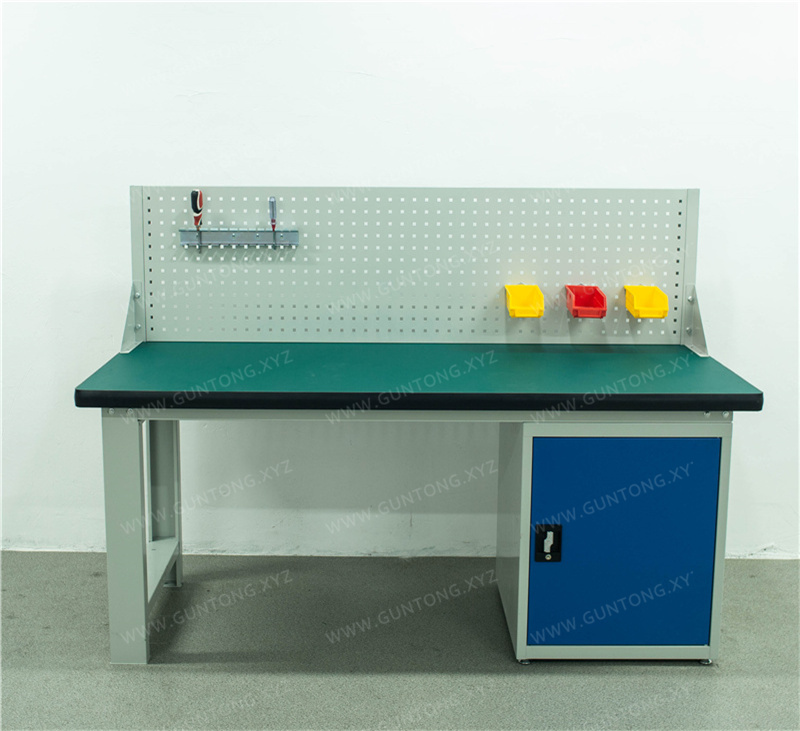

Single Pegboard Single-Door Cabinet Composite Workbench
The Single Pegboard Single-Door Cabinet Composite Workbench from Guang'ermei Precision Components features a modular bolt-together design that balances load capacity, expandability, and 6S workplace management requirements, making it ideal for electronics assembly, automotive parts inspection, hardware mold maintenance, and other manufacturing applications.
Highlights
- Composite Desktop: 50mm thick wear-resistant laminate + high-density board structure, supporting up to 1000kg
- Dual-Mode Pegboard: Square hole + louver combination, 10kg per hole load capacity, highly expandable
- C-Type Cold-Rolled Steel Frame: 1.5mm thick uprights, 1000kg overall load capacity
- Modular Design: Bolted connections for quick assembly, disassembly, and on-site adjustments
- Multi-Scenario Adaptability: Preferred workstation for electronics, automotive, hardware mold, and maintenance & inspection applications
Specifications
- Standard Dimensions (L×W×H + Pegboard H)
- 1500×750×800+500mm｜1800×750×800+500mm｜2100×750×800+500mm
- Desktop Structure
- 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-type uprights (100×50mm cross-section)
- Cabinet Specifications
- 566×600×700mm, 1.0mm cold-rolled steel plate, single door + 1 adjustable shelf
- Pegboard Configuration
- 500mm high square-hole pegboard (10×10mm hole pitch) + 500mm high louver pegboard, 1.0mm bare board thickness
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying + 250°C high-temperature baking
- Packaging
- Knock-down bolted assembly, carton packaging
Composite Workbench Designed for Lean Workstations
The Single Pegboard Single-Door Cabinet Composite Workbench is a classic configuration in Guang'ermei Precision Components' "Composite Desktop Workbench" series, integrating a high-strength load-bearing structure with flexible tool mounting capabilities to meet the comprehensive requirements of modern workshops for functionality, durability, and space utilization.
Core Structural Features
- Composite Desktop System:Total thickness of 50mm, composed of a 2mm green wear-resistant film + 48mm high-density substrate + black PVC edge banding, hot-pressed for excellent wear resistance, oil resistance, and impact resistance, with a static load capacity of up to 1000kg;
- Sturdy Frame System:Constructed with 1.5mm cold-rolled steel stamped C-type uprights (cross-section 100×50mm), the entire unit supports a load capacity of up to 1000kg, suitable for heavy-duty tooling and high-frequency operation environments;
- Practical Cabinet Configuration:Standard single-door cabinet (566×600×700mm) with one adjustable shelf inside for organized storage of commonly used tools, measuring instruments, or small spare parts;
- Dual-Mode Pegboard System:Integrates one 500mm-high square-hole pegboard (hole spacing 10×10mm) and one louvered pegboard of the same height, with a single-hole load capacity of 10kg, supporting quick installation of lean accessories such as hooks, hanging baskets, and universal wheel brackets;
- Industrial-Grade Surface Treatment:Gray-white as the primary color, processed through acid washing and phosphating + powder electrostatic spraying + 250°C high-temperature curing, resulting in strong coating adhesion, corrosion resistance, and easy cleaning.
Flexible Adaptation, Customization Supported
Standard specifications offer three sizes: 1500×750×800+500mm, 1800×750×800+500mm, and 2100×750×800+500mm, available in stock; non-standard sizes, colors, desktop materials (such as anti-static, stainless steel, beech wood, etc.), and cabinet functions (drawers, pull stops, shelf combinations) can all be customized on demand.
Convenient Delivery and Service Guarantee
The entire unit adopts a bolt-connected knock-down structure, packaged in cartons for easy transportation and on-site assembly. Factory inspection, logistics tracking, and optional on-site installation guidance services are supported, accompanied by user instructions and basic maintenance recommendations.
