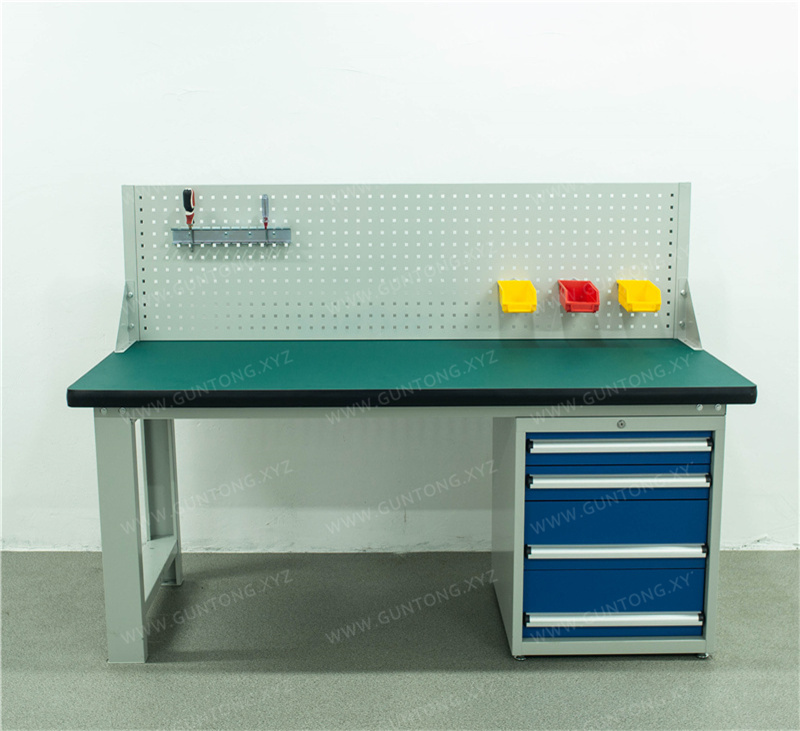

Single Pegboard Four-Drawer Composite Workbench
The Single Pegboard Four-Drawer Composite Workbench, independently developed by Guang'ermei Precision Components, features a modular knock-down structure that combines high load capacity, strong wear resistance, and flexible storage. It is ideal for 6S-managed workshop environments such as electronic assembly, automotive parts sorting, and mold maintenance.
Highlights
- Composite Desktop: 50mm thick wear-resistant laminate + high-density board, supporting up to 1000kg
- C-Type Heavy-Duty Frame: 1.5mm cold-rolled steel, overall load capacity of 1000kg
- Four-Drawer Graduated Design: Mixed-height configuration with label slots to enhance material sorting efficiency
- 500mm Square-Hole Pegboard: 10×10mm hole pitch, 10kg per hole, compatible with louver panel replacement
Specifications
- Standard Dimensions (L×W×H)
- 1500×750×800+500mm / 1800×750×800+500mm / 2100×750×800+500mm
- Desktop Structure
- 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding, total thickness 50mm
- Frame Material
- 1.5mm cold-rolled steel plate, C-section 100×50mm
- Drawer Configuration
- 4 drawers (2×100mm high + 2×200mm high), internal clearance 460×460mm, single slide load capacity 80kg/drawer
- Cabinet Dimensions
- 566×600×700mm, 1.0mm cabinet panel + 1.5mm drawer front panel
- Pegboard Specifications
- 500mm high square-hole pegboard (10×10mm hole pitch), bare panel thickness 1.0mm; louver pegboard optional
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying + 250°C high-temperature baking
- Packaging
- Knock-down bolted assembly, carton packaging
Composite Workstation Platform Designed for Lean Production Lines
The Single Pegboard Four-Drawer Composite Workbench launched by Guang'ermei Precision Components integrates ergonomic layout with industrial-grade structural strength, serving as a standardized workstation solution widely used in electronics manufacturing, automotive parts factories, and hardware mold workshops. The entire unit supports quick assembly and disassembly, on-site adaptation, and long-term durability verification, meeting the basic requirements of ISO 14001 environmental compatibility and GB/T 23467-2009 General Technical Requirements for Industrial Workbenches.
Core Structural Advantages
- Composite Desktop System: Total thickness 50mm, composed of 2mm green wear-resistant film + 48mm high-density substrate + black PVC edge banding, hot-pressed and formed; oil-resistant, scratch-resistant, with a static load capacity of up to 1000kg;
- Heavy-Duty C-Type Frame: Cross-section 100×50mm, bent and welded from 1.5mm cold-rolled steel plate; the entire workbench has a rated load capacity of 1000kg, suitable for placing heavy tools and small equipment;
- Graduated Drawer Configuration: Includes 2 drawers of 100mm height + 2 drawers of 200mm height, internal clearance 460×460mm, equipped with stamped single-rail slides as standard; each drawer supports a load of 80kg and features label slot management;
- Expandable Pegboard System: Standard 500mm-high square-hole pegboard (10×10mm hole pitch), with a single-hole load capacity of 10kg; optional louver pegboard or custom-shaped hanging fixtures available, accommodating high-frequency access needs for wrenches, measuring tools, clamps, and more.
Flexible Adaptation and Delivery Assurance
Available in three in-stock specifications: 1500×750×800+500mm, 1800×750×800+500mm, and 2100×750×800+500mm, with support for custom non-standard dimensions. Surface treatment employs pickling and phosphating + powder electrostatic spraying + 250°C high-temperature curing process. Gray-white is the standard color, with custom color schemes available per customer VI requirements. The entire unit is bolt-connected, packaged in cartons, and supports factory inspection and full logistics tracking.
