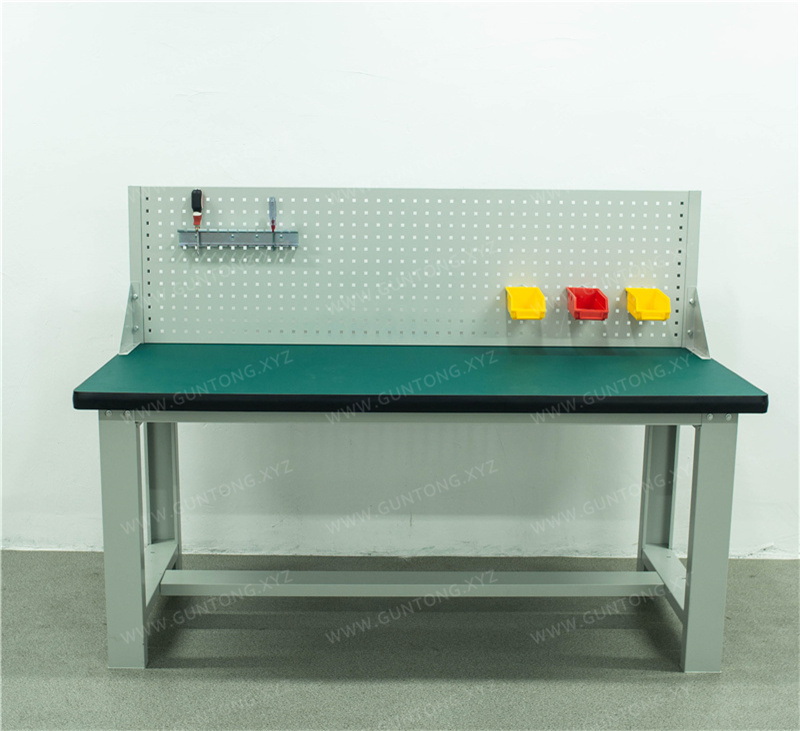

Single Pegboard Composite Workbench with Bottom Crossbar
The Single Pegboard Composite Workbench customized by Guang'ermei Precision Components features a 50mm composite desktop (2mm green wear-resistant laminate + 48mm high-density board + PVC edge banding), a C-type 100×50 frame structure, and a total load capacity of up to 1000kg. It comes standard with a 500mm square-hole pegboard (Φ10×10, 10kg load per hole) and a bottom crossbar, supports light gray electrostatic powder coating (cured at 250°C), and is suitable for 6S workshop environments in electronics, automotive parts, and mold maintenance.
Highlights
- 50mm Composite Desktop | Wear-resistant laminate + high-density board + PVC edge banding, impact-resistant and oil-proof
- C-type 100×50 Main Frame | 1.5mm cold-rolled steel + pickling & phosphating + 250°C high-temperature powder coating
- 500mm Square-Hole Pegboard | Φ10×10 standard hole pitch, 10kg load per hole, supports visual tool management
- Standard Bottom Crossbar | Enhances structural stability and serves as a temporary mounting point for cables or small parts
- Bolt-on Quick Assembly | Weld-free, easy to relocate, adaptable to flexible production line adjustments
Specifications
- Standard Dimensions (L×W×H + Pegboard H)
- 1500×750×800+500 mm / 1800×750×800+500 mm / 2100×750×800+500 mm
- Desktop Structure
- 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding (machine-pressed), total thickness 50mm
- Frame Material & Process
- 1.5mm cold-rolled steel, C-section 100×50mm, pickling & phosphating + electrostatic powder coating (cured at 250°C)
- Pegboard Specifications
- 500mm height square-hole pegboard, 10×10mm hole pitch, 1.0mm board thickness; louver pegboard optional
- Crossbar Configuration
- Single horizontal crossbar under the tabletop, enhances torsional rigidity and expands auxiliary functions
- Load Capacity
- Desktop static load ≥1000kg, overall rated load ≥1000kg
- Color Standard
- Light Gray (RAL 7035), other RAL colors available upon request
- Packaging & Installation
- Carton packaging, bolt-connected knock-down structure, supports easy on-site assembly
Single Pegboard Composite Workbench with Bottom Crossbar — Modular Workstation Core Load-Bearing Platform
The Single Pegboard Composite Workbench launched by Guang'ermei Precision Components is specifically designed for frontline workstations in the manufacturing industry, balancing high load capacity, visual tool management, and rapid assembly requirements. The product adopts a standardized structure combined with non-standard adjustable configurations, and is widely used in electronic assembly lines, automotive parts inspection workstations, hardware mold maintenance areas, and vocational training workshops.
Core Structural Advantages
- Composite Desktop System: Total thickness of 50mm, composed of a 2mm green wear-resistant film (oil-resistant and scratch-resistant), a 48mm high-density board substrate, and black PVC edge banding applied by machine pressing. The surface has high flatness, remains deformation-free over long-term use, and the desktop static load capacity is ≥1000kg;
- C-Type Main Frame: Cross-section of 100×50mm, formed by bending 1.5mm cold-rolled steel plate, treated with acid pickling, phosphating, and powder electrostatic spraying, cured by baking at 250°C. The structure features high rigidity and a high anti-corrosion grade;
- Functional Pegboard System: Standard configuration includes one 500mm-high square-hole pegboard (hole spacing 10×10mm, board thickness 1.0mm), with a single-hole load capacity of 10kg, supporting flexible installation of hooks, tool racks, cable clips, and other accessories; louver pegboard is also available as an option to enhance ventilation and visual transparency;
- Practical Bottom Crossbar Configuration: A horizontal crossbar is integrated beneath the workbench body to enhance overall torsional rigidity, while also providing auxiliary support points for cable management and small fixture hanging;
- Convenient Assembly Method: Fully bolted knock-down structure, shipped in carton packaging, allowing rapid on-site assembly without welding or heavy equipment, suitable for production line relocation and workstation iteration requirements.
Specifications and Configuration Options
| Model Dimensions (L×W×H + Pegboard Height) | Desktop Load Capacity | Overall Workbench Load Capacity | Gross Weight (Approx.) | Delivery Method |
|---|---|---|---|---|
| 1500×750×800+500 mm | ≥1000 kg | ≥1000 kg | 70.1 kg | In Stock |
| 1800×750×800+500 mm | ≥1000 kg | ≥1000 kg | 78.6 kg | In Stock |
| 2100×750×800+500 mm | ≥1000 kg | ≥1000 kg | 88.6 kg | In Stock |
Other sizes, colors (e.g., RAL color system customization), pegboard types (square-hole/louver/grid), additional shelves or drawer modules are all supported for non-standard customization. Engineers will provide 3D layout drawings and configuration lists within 1 working day.
