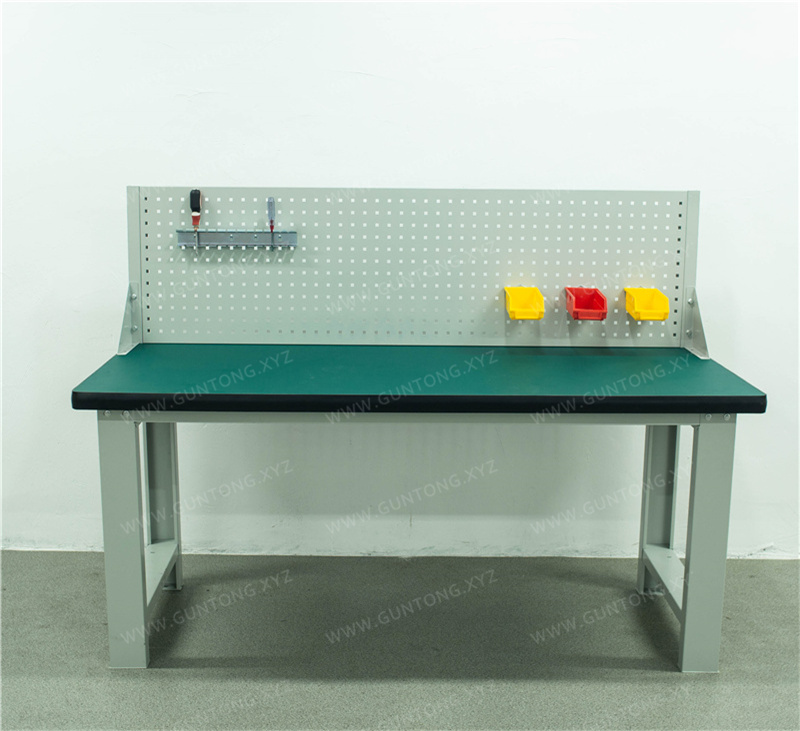

Single Pegboard Composite Workbench
Developed independently by Guang'ermei Precision Components, the Single Pegboard Composite Workbench features a high-density board and wear-resistant laminate composite top, paired with a C-type cold-rolled steel frame and a standardized square-hole pegboard system. It balances load capacity, modular expandability, and 6S workplace management compatibility, supporting multi-size in-stock supply and custom configurations.
Highlights
- Composite Top Structure: 50mm total thickness, wear-resistant laminate + high-density board, 1000kg load capacity
- C-Type Cold-Rolled Steel Frame: 1.5mm sheet metal, 1000kg overall load capacity, stable and reliable structure
- Single Pegboard Expansion System: 500mm-high square-hole pegboard for flexible mounting of tools, cables, and accessories
- Modular Bolted Assembly: Pre-assembled and calibrated at factory for rapid on-site installation, adaptable to production line relocation and layout adjustments
Specifications
- Standard Dimensions (L×W×H + Pegboard H)
- 1500×750×800+500mm / 1800×750×800+500mm / 2100×750×800+500mm
- Top Structure
- 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding, machine-pressed one-piece molding
- Frame Material & Specification
- C-type cold-rolled steel, 100×50mm cross-section, 1.5mm thickness
- Pegboard Configuration
- 1 pc 500mm-high square-hole pegboard (10×10mm hole pitch), 10kg load per hole; louver pegboard optional
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying, cured at 250°C
- Packaging
- Knock-down carton packaging, including structural components, pegboard, fasteners, and installation manual
Single Pegboard Composite Workbench Optimized for Manufacturing Workstations
Guangermei Precision Components has been deeply engaged in the workshop workstation equipment field for over a decade. The Single Pegboard Composite Workbench series integrates three core advantages: structural stability, functional scalability, and on-site management compatibility. The products are widely used in production scenarios with clear requirements for tool access efficiency and space planning, such as electronic assembly, automotive parts assembly, hardware mold debugging, and maintenance & inspection.
Core Structural Features
- Composite High-Strength Worktop: Total thickness 50mm, integrally hot-pressed from a 2mm green wear-resistant film, 48mm high-density board, and black PVC edge banding strip, offering excellent wear resistance, oil resistance, and impact resistance, with a static load capacity of up to 1000kg;
- C-Type Cold-Rolled Steel Frame: Cross-section 100×50mm, sheet thickness 1.5mm, overall table load capacity 1000kg, structurally stable and designed for long-term high-frequency use;
- Standardized Single Pegboard System: Equipped with a 500mm-high square-hole pegboard (hole spacing 10×10mm), single-hole load capacity 10kg, allowing flexible mounting of tool hooks, universal wheel brackets, cable management boxes, and other accessories; louvered pegboard is also available as an option to enhance ventilation and visual transparency;
- Modular Knock-Down Structure: Full bolted connection design for easy transportation, on-site assembly, and later adjustments; carton packaging, compatible with factory logistics and installation schedules.
Basic Specifications and Configuration Options
| Model Specification (L×W×H + Pegboard Height) | Worktop Material | Frame Material | Standard Color | Gross Weight (Approx.) |
|---|---|---|---|---|
| 1500×750×800+500mm | Composite Worktop (Film + High-Density Board) | 1.5mm Cold-Rolled Steel Plate | Gray-White (Pickling & Phosphating + Electrostatic Spraying, Cured at 250℃ High Temperature) | 67.4kg |
| 1800×750×800+500mm | Same as above | Same as above | Custom Colors Supported (RAL Color Code Required) | 75.8kg |
| 2100×750×800+500mm | Same as above | Same as above | — | 85.7kg |
Note: The above are standard in-stock dimensions; other lengths, widths, heights, pegboard quantities/positions, drawer configurations (e.g., two-drawer/three-drawer), pull stops, shelves, foot pedal mechanisms, etc., can all be customized as required.
