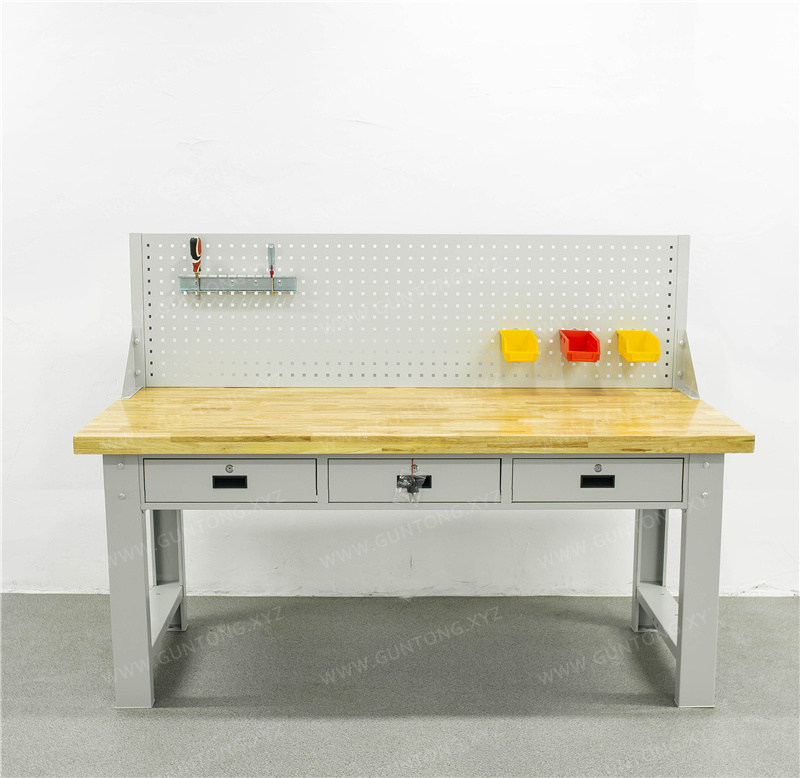

Single Pegboard 3-Drawer Beech Wood Workbench
Guang'ermi Precision Components custom beech wood top workbench, featuring a finger-jointed beech tabletop (50mm thick), C-type cold-rolled steel frame, and modular single pegboard design. Available in 3 standard sizes in stock, combining high load capacity, structural stability, and 6S workplace management compatibility.
Highlights
- Finger-jointed beech tabletop, 50mm thick, static load capacity 1000kg
- C-type cold-rolled steel frame, overall load capacity 1000kg, stable and durable structure
- 3-tier drawer storage, 80kg per drawer, suitable for tool and material classification management
- 500mm high standardized square-hole pegboard, supports visual tool hanging and quick adjustment
Specifications
- Standard Dimensions (L×W×H)
- 1500×750×800+500mm | 1800×750×800+500mm | 2100×750×800+500mm
- Tabletop
- Finger-jointed beech board, 50mm total thickness, sanded surface finish, 1000kg load capacity
- Frame
- C-type structure, 100×50mm cross-section, 1.5mm cold-rolled steel plate, pickling & phosphating + electrostatic powder coating
- Drawers
- 3 horizontal drawers, 115mm height, internal depth 320/420/520mm × 430mm width, 80kg per slide rail
- Pegboard
- 1 pc 500mm high square-hole pegboard (10×10mm hole spacing), 1.0mm thick, 10kg per hole
- Color
- Standard light grey (RAL 7035), RAL color chart customization available
- Structure
- Knock-down bolted assembly, carton packaging, on-site installation guidance available
Beech Wood Workstation Solution Optimized for Manufacturing Sites
The Single Pegboard 3-Drawer Beech Wood Workbench by Guang'ermei Precision Components is designed for electronic assembly, automotive parts inspection, hardware mold fitting, and school training scenarios, combining the functionality of a solid wood top with industrial-grade structural reliability. The entire workbench is manufactured to ISO 9001 process standards. The tabletop is reinforced with finger-joint construction and moisture-proof treatment, while the frame is formed from 1.5mm cold-rolled steel plate bent into shape, ensuring long-term use without deformation or loosening.
Core Structural Features
- High-Strength Beech Wood Tabletop: Total thickness of 50mm, precision finger-jointed and pressed from multiple layers of beech wood boards, with a static load capacity of 1000kg. Impact-resistant and scratch-proof, suitable for light mechanical processing and precision assembly operations;
- C-Type Load-Bearing Frame: Cross-section of 100×50mm, with columns and beams bolt-connected. The entire workbench has a rated load capacity of 1000kg, with reserved mounting positions for leveling feet at the bottom;
- 3-Drawer Storage System: 3 drawers arranged horizontally (height 115mm), with internal depth available in three levels: 320/420/520mm. Standard equipped with stamped single-rail guides, each drawer supports 80kg, offering smooth sliding and reliable locking;
- Standardized Pegboard System: Configured with 1 piece of 500mm high square-hole pegboard (hole spacing 10×10mm), each hole supports 10kg. Supports modular hanging of tools, measuring instruments, cable clips, etc., with an optional louvered pegboard upgrade available;
- Flexible Delivery and Installation: Adopting a knock-down bolt structure, packed in cartons, with support for factory inspection and logistics tracking. Optional on-site installation guidance service is available, compatible with workshop 6S visual management standards.
Specification Overview
| Item | Parameter Description |
|---|---|
| Standard Dimensions (L×W×H) | 1500×750×800+500mm / 1800×750×800+500mm / 2100×750×800+500mm (including pegboard height) |
| Tabletop Material and Thickness | Solid beech wood finger-joint board, total thickness 50mm, sanded surface finish |
| Frame Material | 1.5mm cold-rolled steel plate, C-type bent structure, pickling and phosphating + electrostatic powder coating (gray-white, 250℃ high-temperature curing) |
| Drawer Configuration | 3 horizontal drawers, internal depth in levels (320/420/520mm × 430mm width), single-rail load capacity 80kg/drawer |
| Pegboard Specifications | 1 piece of 500mm high square-hole pegboard (Φ10mm round holes, 10×10mm spacing), 1.0mm bare board base material |
| Packaging and Gross Weight | 1500mm model approx. 87kg | 1800mm model approx. 98.7kg | 2100mm model approx. 109.7kg |
This series supports non-standard size customization, thickened worktops, interchangeable pegboard types, color options (RAL color chart available), and functional expansions (such as pre-embedded vises, integrated power outlets, grounding terminals, etc.). Please provide your workshop layout and usage requirements to obtain an exclusive 3D design solution.
