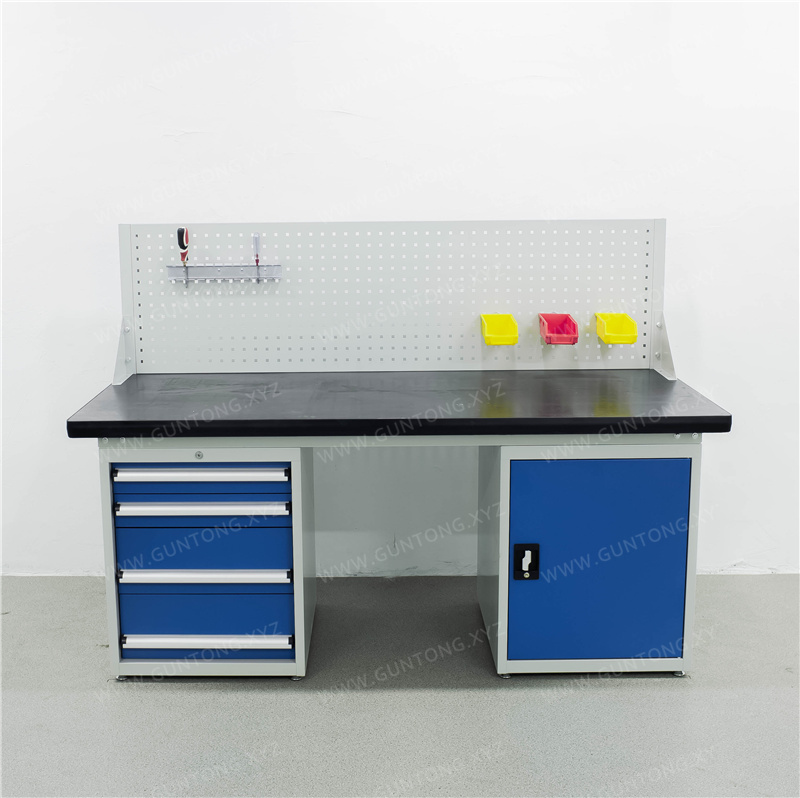

Single Back Panel Single Door 4-Drawer Steel Plate Workbench
The Single Back Panel Single Door 4-Drawer Steel Plate Workbench, independently developed by Guang'er Mei Precision Components, features a composite desktop structure of 5mm raw steel plate and high-density fiberboard. With a total load capacity of 1000kg, it meets the 6S management requirements of manufacturing workshops in electronics, automotive parts, and hardware mold industries. Available in multiple standard sizes in stock and supports non-standard customization.
Highlights
- 5mm raw steel plate composite desktop for high load capacity and long service life
- C-type cold-rolled steel frame with 1000kg total load capacity
- 4-drawer tiered design for organized tool storage by category
- Square hole and louver dual back panels for 6S visual tool management
- Modular bolt-together structure for rapid on-site deployment
Specifications
- Common Dimensions (L×W×H mm)
- 1500×750×800+500 | 1800×750×800+500 | 2100×750×800+500
- Desktop Structure
- 5mm raw steel plate + 45mm high-density fiberboard + black PVC edge banding, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-type cross section 100×50mm
- Drawer Configuration
- Single cabinet with 4 drawers (100mm H×2, 200mm H×2), internal space 460×460mm, 80kg load per drawer
- Back Panel Type
- 500mm high square hole back panel (10×10mm) + 1 louver panel, 10kg load per hole
- Surface Treatment
- Acid washing & phosphating + electrostatic powder coating + 250℃ high-temperature baking, standard gray-white
- Connection Method
- Full bolt-together dismountable structure, carton packaging
Reliable Structure · Scenario Adaptation · Flexible Customization
The Guang'erm Single Back Panel Single Door 4-Drawer Steel Plate Workbench is specifically designed for high-intensity working environments, balancing load-bearing performance, tool storage efficiency, and on-site 6S visual management requirements. The product continues Guang'erm's consistent modular concept for workstation equipment, adopting a C-type cold-rolled steel frame with bolted detachable connection structure for easy transportation, installation, and future adjustments.
Core Configuration Highlights
- Composite Steel Plate Worktop: Total thickness 50mm (5mm raw steel plate + 45mm high-density board + black PVC edge banding), wear-resistant, high-temperature resistant, and impact-resistant surface, with static load capacity ≥1000kg;
- Sturdy Load-Bearing Frame: C-type cross-section 100×50mm, main body made of 1.5mm premium cold-rolled steel plate, rated load capacity of the entire workbench 1000kg;
- Efficient Drawer System: Single cabinet configured with 4 drawers (100mm high × 2 + 200mm high × 2), internal space 460×460mm, standard stamped single rail, single drawer load capacity 80kg, panel made of 1.5mm cold-rolled steel plate, equipped with aluminum alloy handle and label slot;
- Dual-Mode Pegboard System: Integrates one 500mm high square-hole pegboard (10×10mm hole spacing) and one louvered pegboard, single hole load capacity 10kg, supporting standardized hanging management of tools, measuring instruments, fixtures, etc.;
- Industrial-Grade Surface Treatment: Standard gray-white color (acid washing & phosphating + powder electrostatic spraying + 250℃ high-temperature curing), corrosion-resistant and easy to clean; other colors available for customization upon request.
Specifications & Delivery
Three common sizes available in stock:
● 1500×750×800+500mm (including pegboard height)
● 1800×750×800+500mm
● 2100×750×800+500mm
Non-standard sizes supported for quick-response customization. The entire unit is packaged in cartons, with gross weights of 153.9kg / 171.2kg / 187.6kg respectively.
Suitable for scenarios such as electronic assembly lines, automotive parts assembly stations, mold repair areas, inspection laboratories, and vocational college training workshops, seamlessly integrating with lean production and smart warehousing support systems.
