Shelf Tool Cabinet
The Shelf Tool Cabinet, independently developed by Guang'ermei Precision Components, features a 1.0mm cold-rolled steel one-piece construction. Its double-door design paired with 2 high-strength load-bearing shelves supports up to 100kg per shelf, making it ideal for centralized tool storage in workshops, 6S visual management, and high-frequency access applications.
Highlights
- Double-door design for convenient loading and unloading of large tools
- Each shelf supports ≥100kg, meeting heavy-duty tool storage needs
- Cold-rolled steel with electrostatic powder coating for strength and durability
- Modular structure supporting custom non-standard dimensions and shelf heights
Specifications
- Overall Dimensions (W × D × H)
- 1000mm × 500mm × 1100mm
- Number of Shelves
- 2 shelves (standard), customizable from 1 to 4 shelves
- Load Capacity per Shelf
- ≥100kg (uniformly distributed load)
- Cabinet Body Material
- 1.0mm cold-rolled steel
- Shelf Material
- 1.2mm cold-rolled steel with reinforced rib structure
- Surface Treatment
- Epoxy resin powder coating (standard color)
Shelf Tool Cabinet: Sturdy Structure · Efficient Access · 6S Management Compatible
The Shelf Tool Cabinet is a basic workstation equipment developed by Guang'Er Mei Precision Components to meet the centralized tool storage needs on manufacturing shop floors. Unlike drawer-type tool cabinets, this series adopts an open shelf layout, balancing access efficiency and visual management. It is widely used in electronic assembly lines, automotive parts repair stations, hardware and mold workshops, and school training bases.
Core Design Features
- High-Rigidity Cabinet Structure: The main cabinet body is made of 1.0mm high-quality cold-rolled steel plate through bending, welding, and electrostatic powder coating processes, ensuring stable overall load-bearing capacity and strong deformation resistance;

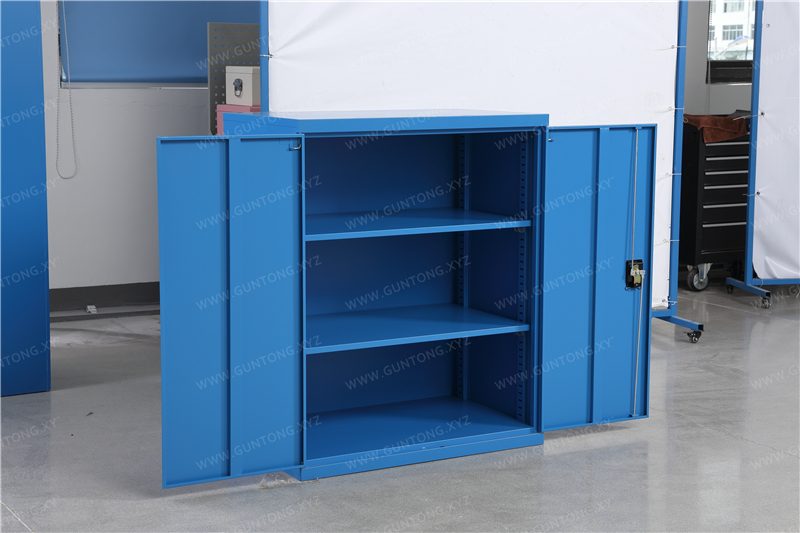

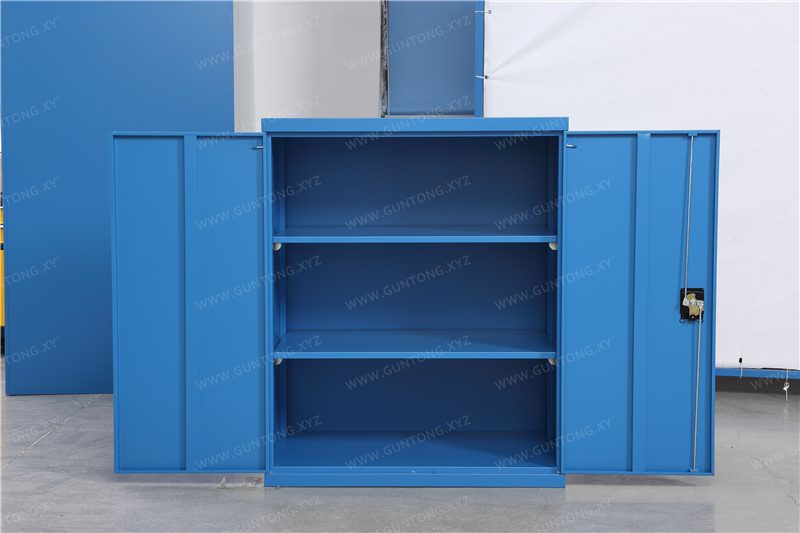

- Double Doors + Double Shelf Layout: Double-swing doors facilitate the loading and unloading of large tools, with 2 adjustable shelves built in (standard configuration), supporting on-demand adjustment of shelf spacing;
- Strong Load-Bearing Capacity: Each shelf has passed static load testing, with a uniform load capacity of ≥100kg per shelf, meeting the storage needs for heavy equipment such as wrenches, jacks, and pneumatic tools;
- Industrial-Grade Surface Treatment: Blue epoxy resin powder coating (RAL5015 standard color), scratch-resistant, wear-resistant, corrosion-proof, and rust-proof, meeting ISO 12944 C2 industrial environment requirements.
Typical Application Scenarios

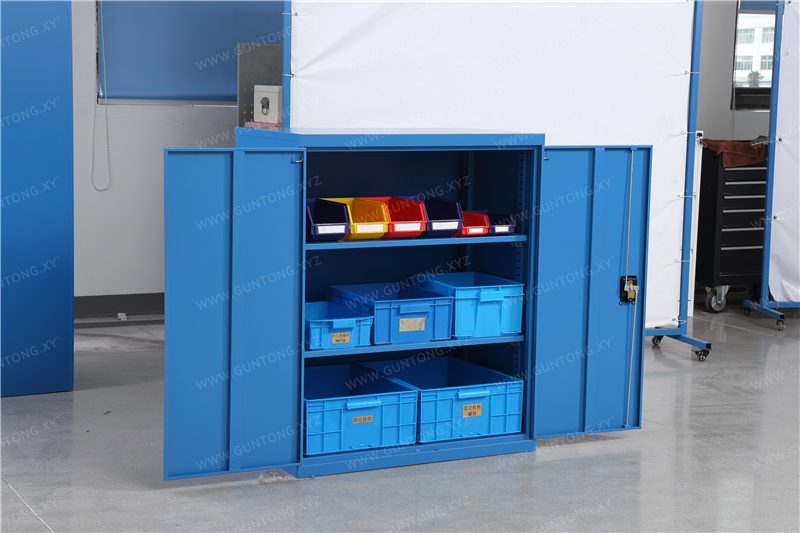

✔ Centralized tool positioning management beside production lines
✔ Quick access at maintenance and inspection workstations
✔ Classified and layered storage of mold accessories
✔ Standardized display of teaching tools in training classrooms
| Item | Parameter |
|---|---|
| Overall Dimensions (W × D × H) | 1000mm × 500mm × 1100mm |
| Number of Shelves | 2 shelves (standard, optional 1–4 shelves) |
| Shelf Material and Thickness | 1.2mm cold-rolled steel plate with stamped reinforcing rib structure |
| Cabinet Plate Thickness | 1.0mm cold-rolled steel plate |
| Door Opening Method | Double swing doors with damping hinges |
| Standard Color | Blue (RAL5015), Custom Colors Supported |
