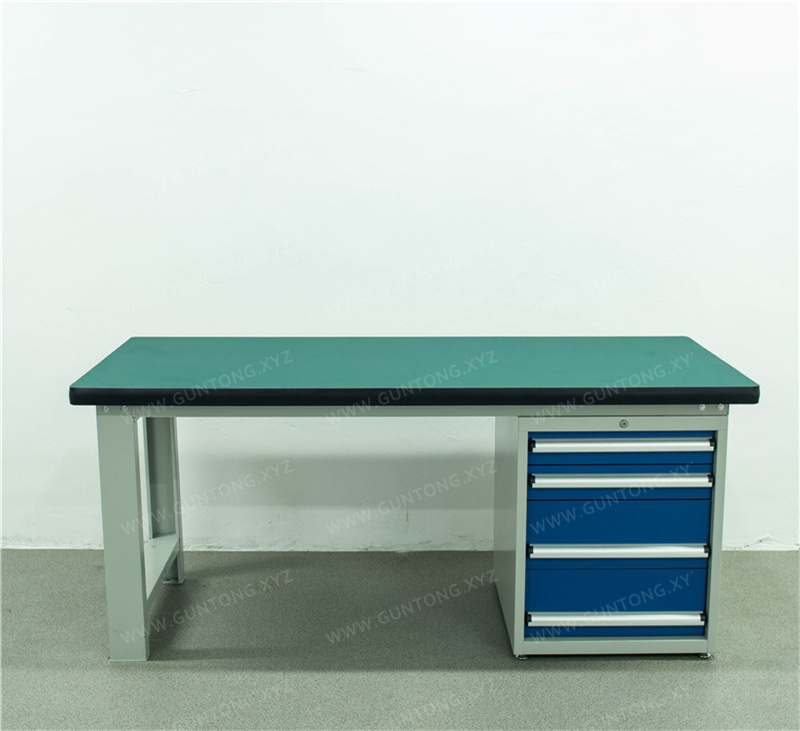

Pegboard-Free 4-Drawer Floor Cabinet Composite Workbench
The Pegboard-Free 4-Drawer Floor Cabinet Composite Workbench, independently developed by Guang'ermei Precision Components, features a modular knock-down structure and a high-load composite desktop. It is designed for workshop environments such as electronics assembly, automotive parts assembly, and hardware mold maintenance, where space optimization and tool storage are critical.
Highlights
- Pegboard-free integrated structure eliminates cantilever deformation risk and enhances long-term stability
- 50mm composite desktop balances strength and functionality, supporting 5S visual management requirements
- Four-tier differentiated drawer layout accommodates organized storage of large and small tools, gauges, and small parts
- Full cold-rolled steel construction with high-temperature cured powder coating, suitable for electronics, automotive, hardware, and similar workshop environments
Specifications
- Standard Dimensions (L×W×H)
- 1500×750×800mm / 1800×750×800mm / 2100×750×800mm
- Desktop Structure
- 2mm green wear-resistant rubber mat + 48mm high-density fiberboard + PVC edge banding, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-section 100×50mm
- Drawer Configuration
- 4 drawers (2×100mm high + 2×200mm high), internal space 460×460mm, 80kg load capacity per drawer
- Cabinet Dimensions
- 566×600×700mm (W×D×H), 1.0mm cold-rolled steel cabinet body
- Surface Treatment
- Acid washing & phosphating + electrostatic powder coating, baked at 250°C, standard gray-white
- Load Capacity
- 1000kg static desktop load, 1000kg rated overall load
- Assembly Method
- Bolt-connected knock-down structure, supports rapid on-site assembly and repositioning
Reliable Structure · Efficient Storage · Easy Installation
This pegboard-free 4-drawer floor cabinet composite workbench is optimized for modern manufacturing workstations. It eliminates the traditional pegboard structure and directly connects the cabinet and desktop with a C-shaped frame, enhancing overall rigidity and long-term stability. The entire unit adopts a bolt-connected assembly structure for easy transportation, on-site assembly, and later adjustments.
Core Configuration
- Composite Desktop: Total thickness 50mm, hot-pressed from 2mm green wear-resistant film + 48mm high-density board + black PVC edge banding, featuring excellent wear resistance, oil resistance, and impact resistance, with a static load capacity of 1000kg;
- Main Frame: C-shaped cross-section 100×50mm, bent and welded from 1.5mm cold-rolled steel plate, treated with pickling and phosphating + powder electrostatic spraying (250℃ high-temperature curing), standard gray-white color, anti-corrosion and anti-rust, custom colors supported;
- 4-Drawer System: Includes 2 drawers 100mm high + 2 drawers 200mm high, internal dimensions 460×460mm, equipped with stamped single rails, each drawer supports 80kg, drawer panels made of 1.5mm cold-rolled plate, standard with aluminum alloy handles and label slots;
- Floor Cabinet: Dimensions 566×600×700mm (W×D×H), 1.0mm cold-rolled plate box structure, integrated load-bearing with the workbench, total rated load capacity 1000kg;
- Specifications & Packaging: Available in three standard sizes in stock: 1500×750×800mm, 1800×750×800mm, 2100×750×800mm, non-standard customization supported; carton packaging, gross weight 92.9kg for the 1500mm model, 100.2kg for the 1800mm model, 109kg for the 2100mm model.
