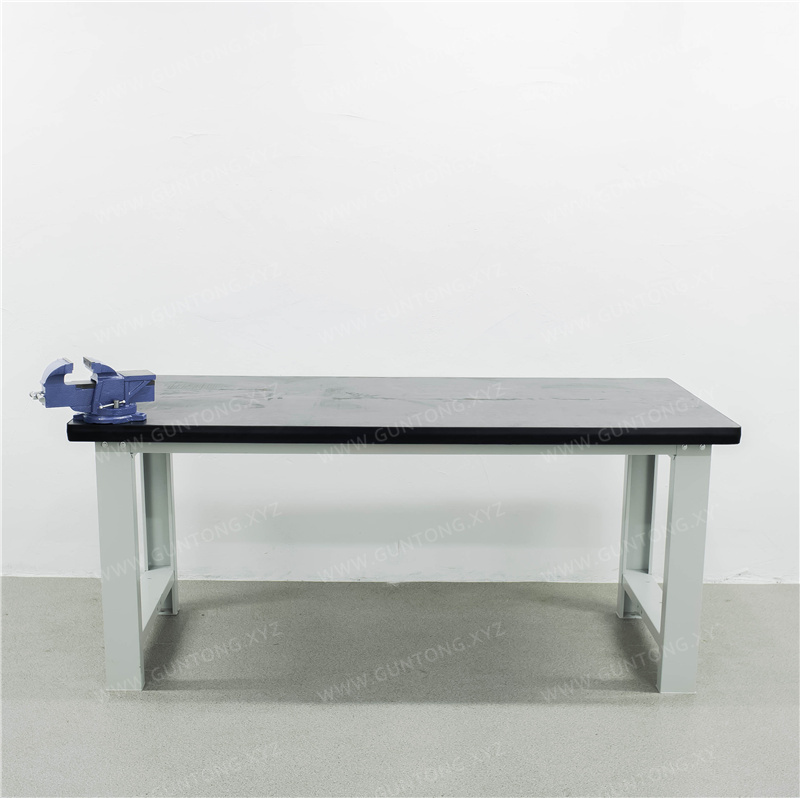

Iron Plate Workbench with Bench Vise
Guang'ermei Precision Components' self-developed iron plate desktop workbench integrates a 4-inch heavy-duty bench vise, suitable for high-precision and high-intensity operations such as fitter assembly, mechanical maintenance, and mold debugging. It adopts a C-type frame with a 5mm raw iron plate composite desktop structure, supporting a total load capacity of 1000kg, balancing rigidity, wear resistance, and on-site adaptability.
Highlights
- 5mm raw iron plate + high-density composite desktop, wear-resistant and impact-resistant
- C-type 100×50mm cold-rolled steel frame, total load capacity of 1000kg
- Standard 4-inch heavy-duty bench vise, jaw width 100mm, opening 120mm
- Full bolt disassembly structure, supporting rapid on-site deployment and flexible expansion
Specifications
- Desktop Structure
- 5mm raw iron plate + 45mm high-density board + black PVC strip, total thickness 50mm
- Frame Material
- 1.5mm cold-rolled steel plate, C-type section 100×50mm
- Bench Vise Specification
- 4-inch (100mm jaw width) heavy-duty bench vise, net weight approx. 11kg
- Surface Treatment
- Pickling and phosphating + powder electrostatic spraying, cured by 250℃ high-temperature baking
- Packaging
- Carton packaging, split-type bolt connection structure
Iron Plate Workbench Designed for Heavy-Duty Fitting Work
The Guang'ermei Iron Plate Workbench with Bench Vise series is developed for frontline manufacturing workstation needs, integrating structural stability, operational convenience, and 6S site management requirements. The products are widely used in automotive parts factories, hardware mold workshops, equipment maintenance centers, and vocational college training bases.
Core Structural Advantages
- Composite Iron Plate Desktop: 5mm raw iron plate + 45mm high-density base material + black PVC edge banding, total thickness 50mm, flat and wear-resistant surface, high temperature resistant, impact resistant, no deformation after long-term use;
- C-Type Reinforced Frame: Cross-section 100×50mm, formed by bending 1.5mm cold-rolled steel plate, fully welded + bolt reinforced, ensuring static load capacity of the entire bench ≥1000kg;
- Standard Heavy-Duty Bench Vise: Equipped with a standard 4-inch (100mm jaw width) industrial-grade bench vise, actual opening up to 120mm, self-locking and stable, strong clamping force, supporting frequent heavy-duty operations;
- Modular Disassembly Design: Full bolt-connected structure, easy for transportation, on-site assembly, and later adjustments, adaptable to different workshop layouts and production line upgrade needs.
Common Specifications and Configurations
| Model | Overall Dimensions (L×W×H, mm) | Desktop Load Capacity | Gross Weight | Bench Vise Configuration |
|---|---|---|---|---|
| GM-TB-1500 | 1500×750×800 | ≥1000kg | 96kg | Standard 4-inch heavy-duty bench vise |
| GM-TB-1800 | 1800×750×800 | ≥1000kg | 113.2kg | Standard 4-inch heavy-duty bench vise |
| GM-TB-2100 | 2100×750×800 | ≥1000kg | 127.5kg | Standard 4-inch heavy-duty bench vise |
Non-standard customization supported: length can be adjusted as needed, drawers/pegboards/foot guards can be added, and different colors can be selected (pickling and phosphating + powder electrostatic spraying, cured at 250℃ high temperature), meeting ISO/TS 16949 workshop environment and ESD sensitive area compatibility requirements.
