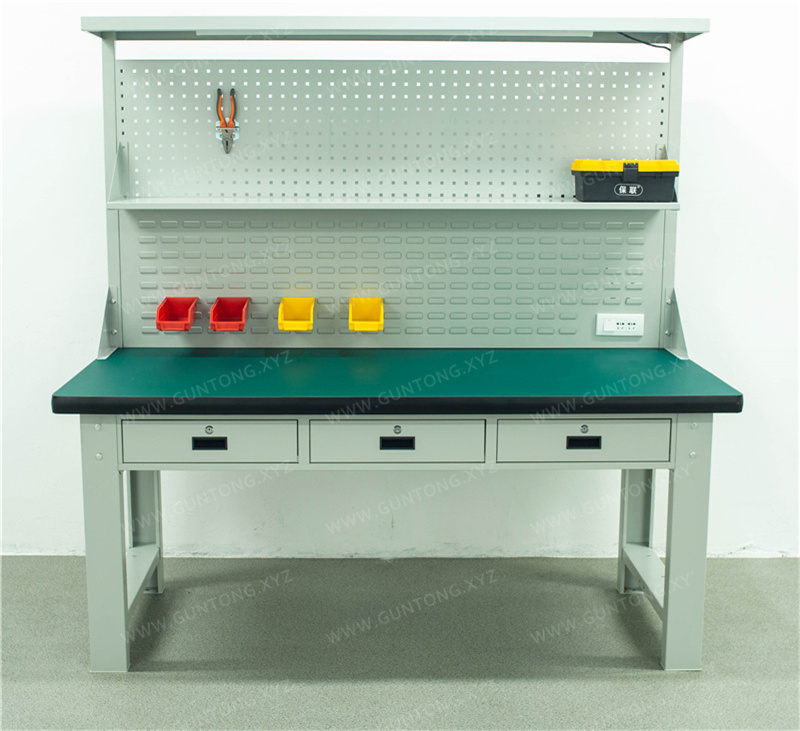

Dual Pegboard Three-Drawer Composite Workbench
The Dual Pegboard Three-Drawer Composite Workbench, independently developed by Guang'ermei Precision Components, features a modular bolt-together design integrating a high-load composite tabletop, dual pegboard systems, and standardized drawer units. It is ideal for workstations requiring advanced space management and load-bearing stability, such as electronic assembly, automotive parts inspection, and mold maintenance.
Highlights
- Composite Tabletop: 50mm thick wear-resistant vinyl over high-density board, 1000kg load capacity, oil-resistant and impact-resistant
- Dual Pegboard System: Square-hole and louver panel combination, 10kg per hole load capacity for flexible tool mounting
- Three-Drawer Horizontal Layout: Three drawers of varying depths, 80kg load capacity per drawer, compatible with diverse tooling
- C-Channel Cold-Rolled Steel Frame: 1.5mm thick main frame, 1000kg overall load capacity, stable and deformation-resistant structure
- Integrated Light Rack: Includes LED lighting, power outlets, and cable management for plug-and-play installation
Specifications
- Standard Dimensions (L×W×H + Light Rack)
- 1500×750×800+1000mm / 1800×750×800+1000mm / 2100×750×800+1000mm
- Tabletop Construction
- 2mm green wear-resistant vinyl + 48mm high-density board + black PVC edge banding, 50mm total thickness
- Frame Material & Thickness
- C-channel cold-rolled steel, 100×50mm cross-section, 1.5mm thickness
- Drawer Configuration
- Three horizontal drawers, 115mm height, internal dimensions 320/420/520×430mm, single slide rail, 80kg load capacity per drawer
- Pegboard Specifications
- One square-hole panel and one louver panel, 450mm height, 10×10mm hole size, 10kg per hole load capacity
- Light Rack System
- 1000mm height, includes LED tube light (16W), 2/3-hole combo outlet, and power cord
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying, cured at 250°C, standard color: light gray
- Structural Design
- Bolt-connected knock-down structure, carton packaging
Composite Workbench Designed for Efficient Workstations
The Dual Pegboard Three-Drawer Composite Workbench is one of the core models in Guang'ermei Precision Components' "Dual Pegboard Series," integrating ergonomic layout, industrial-grade structural strength, and flexible tool mounting capabilities to meet the functional, compatibility, and scalability requirements of modern workshop 6S management and lean production for workstation equipment.
Core Structural Advantages
- Composite Tabletop System:Total thickness of 50mm, composed of a 2mm green wear-resistant laminate + 48mm high-density substrate + black PVC edge banding, hot-pressed into shape, offering excellent wear resistance, oil resistance, and impact resistance, with a static load capacity of up to 1000kg;
- Dual Pegboard Coordinated Configuration:Standard configuration includes one 450mm-high square-hole pegboard (hole pitch 10×10mm) and one louvered pegboard, with a single-hole load capacity of 10kg, supporting diverse mounting of tools, measuring instruments, cable clips, etc., to improve access efficiency;
- Three-Drawer Horizontal Layout:3 independent drawers (height 115mm), with internal dimensions of 320/420/520mm×430mm respectively, equipped with stamped single-slide rails, each drawer supporting up to 80kg, compatible with standard bins and common tooling;
- High-Rigidity Frame:C-type main frame with a cross-section of 100×50mm, formed by integral bending of 1.5mm cold-rolled steel plate, with an overall load capacity of 1000kg, ensuring no deformation during long-term use;
- Integrated Light Rack System:Top-mounted 1000mm-high light rack, including an LED fluorescent lamp (16W), a combined two- and three-hole socket, and matching power cord, ready to use upon installation, ensuring work lighting and equipment power supply.
Specifications and Customization Support
Standard in-stock specifications: 1500×750×800+1000mm, 1800×750×800+1000mm, 2100×750×800+1000mm (unit: mm); other dimensions, colors (gray-white is the default color, with optional pickling phosphating + electrostatic spraying process), and functional modules (such as adding a bench vise, foot-operated pull bar, double-layer cabinet, etc.) all support non-standard customization.
Delivery and Service
Adopts a bolt-connected knock-down structure, packed in cartons for easy transportation and rapid on-site assembly. Guang'ermei provides full-process services from workstation layout assessment, 3D solution design, and factory inspection to optional on-site installation guidance, adapting to practical application environments in multiple industries such as electronics, automotive, hardware molds, and maintenance and testing.
