Drawer Tool Cabinet
Guang'ermei Precision Components' self-developed and manufactured drawer tool cabinet features a cold-rolled steel structure, equipped with high-load single-rail drawers and reinforced shelves. It is designed for workshop environments such as electronic assembly, automotive repair, and mold management, where efficient tool classification, storage, and retrieval are essential.
Highlights
- Cold-rolled steel body: cabinet 1.0 mm / drawer front panel 1.5 mm
- Single-rail drawers: 80 kg load capacity per drawer, 100 kg load capacity per shelf
- Flexible 3–6 drawer configurations with deep adaptation to multi-industry scenarios
- Expandable with custom features including ESD protection, RFID identification, and pegboard systems
Specifications
- Standard Model

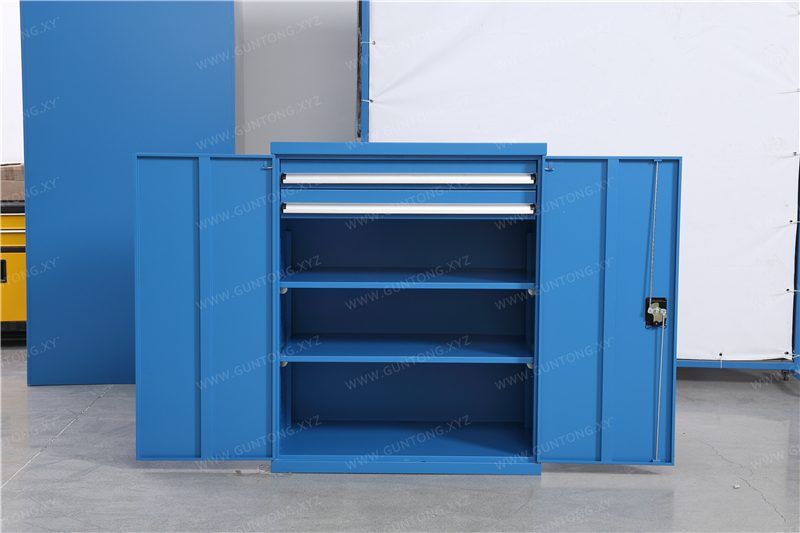

- Double-Door 2-Drawer 2-Shelf Tool Cabinet
- Dimensions (W×D×H)
- 1000 × 500 × 1100 mm
- Drawer Specification
- 100 mm height × 2, stamped single-rail structure
- Shelf Configuration
- 2 adjustable shelves, 100 kg load capacity per shelf
- Material & Process
- Cabinet Body
The Drawer Tool Cabinet is a standardized workstation equipment product launched by Guang'ermi Precision Components to meet the needs for fine tool management. Unlike open shelf cabinets, this series features a modular drawer design that enables tool compartmentalization, dust and damage protection, and quick positioning, significantly improving 6S on-site management standards and operator retrieval efficiency.
Structural Advantages
The main cabinet frame is made of 1.0mm thick high-quality cold-rolled steel sheet, with drawer panels thickened to 1.5mm. The entire unit undergoes pickling and phosphating plus electrostatic powder coating treatment, providing excellent scratch resistance and corrosion resistance. The drawers are equipped with a stamped single-rail guide system for smooth operation and precise return, with each drawer supporting up to 80kg. It includes 2 adjustable shelves with a load capacity of 100kg per shelf, allowing flexible adjustment of the internal space layout.
Applicable Scenarios
- Electronic Manufacturing Production Line:Used for storing ESD-sensitive components, precision measuring instruments, and small assembly tools, with optional ESD accessories for upgrades.
- Automotive Repair Workshop:Functional zoning (such as dedicated drawers for braking systems and electrical systems) to shorten troubleshooting time.
- Hardware and Mold Factory:Combined with a label management system to achieve visual classification and storage of mold accessories, standard parts, and blade spares.
- Vocational College Training Center:Meets the triple needs of teaching demonstrations, student hands-on practice, and standardized tool safety management.
Customization Capabilities
In addition to standard specifications (1000×500×1100mm, double doors + 2 drawers + 2 shelves), Guang'ermi supports non-standard customization services including drawer quantity (3–6 drawers), dimensions (width 600–1200mm / depth 450–600mm / height 900–1500mm), guide rail type (single rail / double rail / silent buffer rail), surface treatment (blue / gray / green / custom color), and functional extensions (pegboard interface, lock upgrades, RFID identification module pre-embedding).
