Drawer Storage Cabinet
The Drawer Storage Cabinet, independently developed by Guang'er Mei Precision Components, features a cold-rolled steel structure and a high-load-capacity single-rail drawer system. It addresses 6S workplace management requirements and high-frequency retrieval operations in workshop environments, making it suitable for electronic assembly, automotive parts sorting, and mold accessory storage workstations.
Highlights

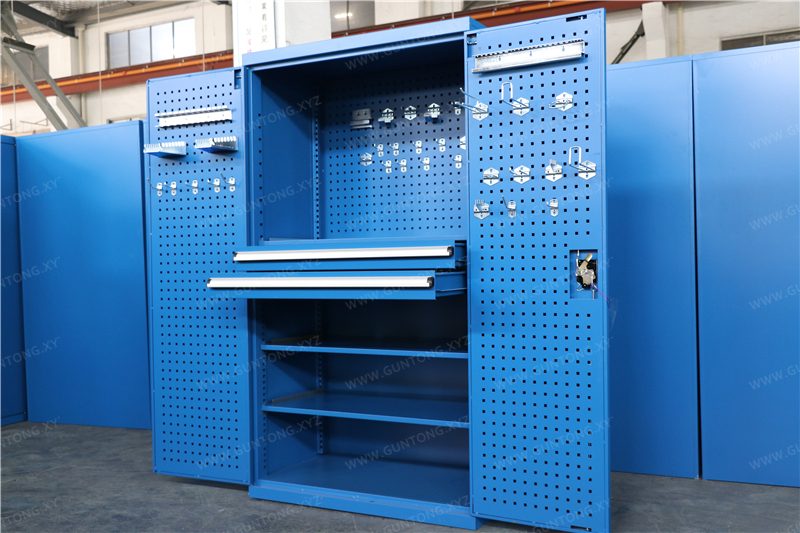

- Four-dimensional storage structure: double doors + 2 drawers + 2 shelf panels + dual-zone pegboards
- Single drawer load capacity: 80 kg; shelf panel load capacity: 100 kg per panel
- Cold-rolled steel body with reinforced drawer panels for stable and durable construction
- Square-hole pegboard supports future functional expansion, compatible with 6S and visual management
Specifications
- Overall Dimensions (W × D × H)
- 1000 × 500 × 1800 mm
- Cabinet Body Sheet Thickness
- 1.0 mm or 1.2 mm cold-rolled steel
- Drawer Panel Thickness
- 1.5 mm cold-rolled steel
- Drawer Specification
- 2 units, 100 mm height, single-rail structure
- Shelf Panel Configuration
- 2 adjustable shelf panels, 100 kg load capacity per level
- Pegboard System
- 2 built-in door panels + square-hole pegboard in upper cabinet interior
- Surface Treatment
- Blue electrostatic powder coating
The Drawer Storage Cabinet is a standardized workstation storage equipment launched by Guang'er Mei Precision Components for refined material management needs. Different from traditional open shelf cabinets, this series adopts a modular design combining drawers and adjustable pegboards, enabling zoned, visible, dust-proof, and easily accessible management of tools, small parts, and standard components.
Structural Advantages

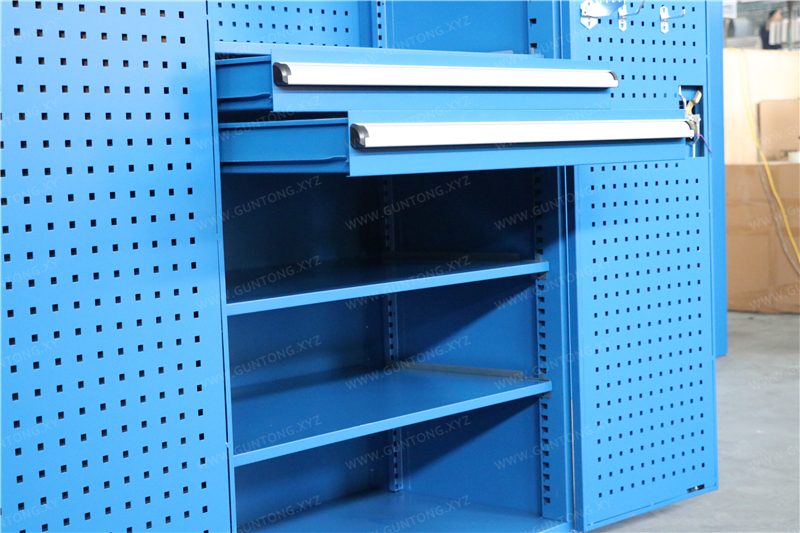

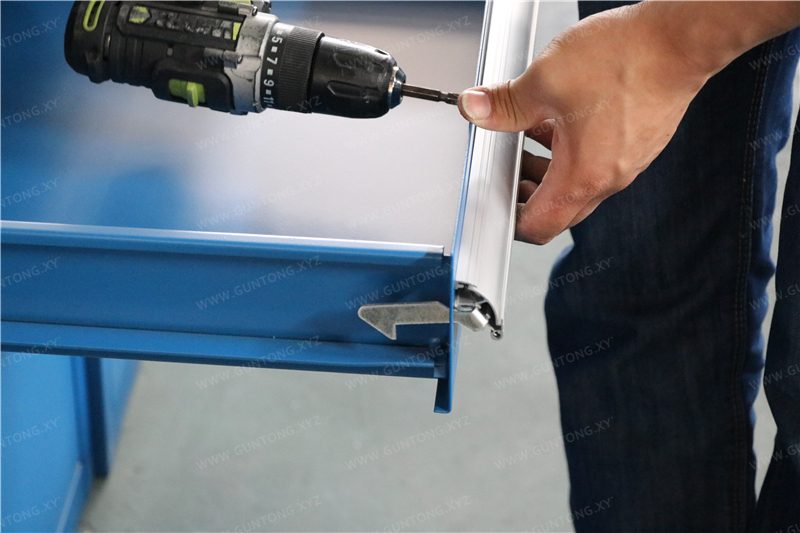

The main cabinet body is formed by bending and welding 1.0mm or 1.2mm high-quality cold-rolled steel plates, ensuring high overall strength and no deformation; the drawer front panels are thickened to 1.5mm, combined with a stamped single-rail structure, with each drawer rated to bear up to 80kg, meeting the storage needs of heavy tools or batch storage bins.
Flexible Configuration

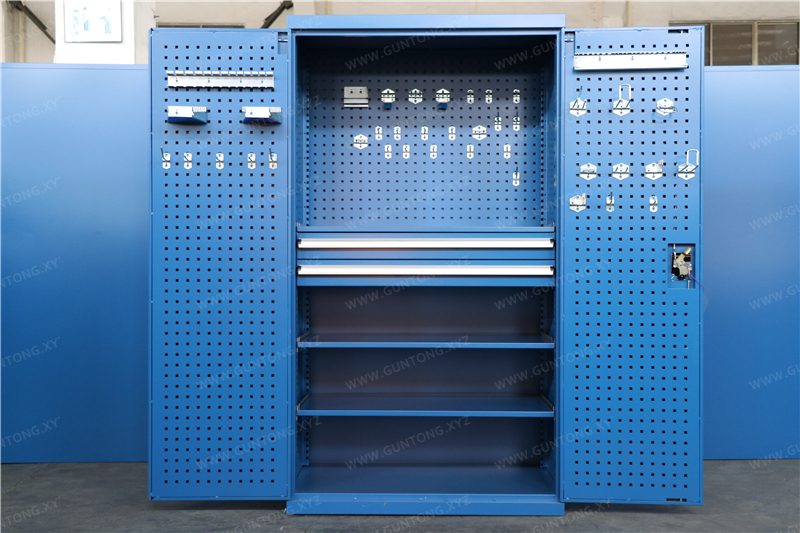

Standard configuration includes 2 drawers of 100mm height and 2 adjustable shelves (single shelf load capacity 100kg); the upper half integrates a square-hole pegboard system — 2 pegboards are built into the door panel, with pegboard mounting positions reserved inside the cabinet, supporting accessory expansion such as hooks, hanging baskets, and label holders; blue electrostatic powder coating surface treatment is scratch-resistant and wear-resistant, complying with industrial environment color management standards.
Application Scenarios
- Electronic Manufacturing: Classified storage of ESD-sensitive components, fixtures, and test jigs
- Automotive Parts Factories: Organized collection of bolt kits, sealing rings, and small assembly parts by vehicle model/workstation
- Mold Repair Workshops: Independent drawer management for easily mixed small parts such as inserts, ejector pins, and springs
- School Training Centers: Visualized and fixed-position management of teaching tools, measuring instruments, and consumables
