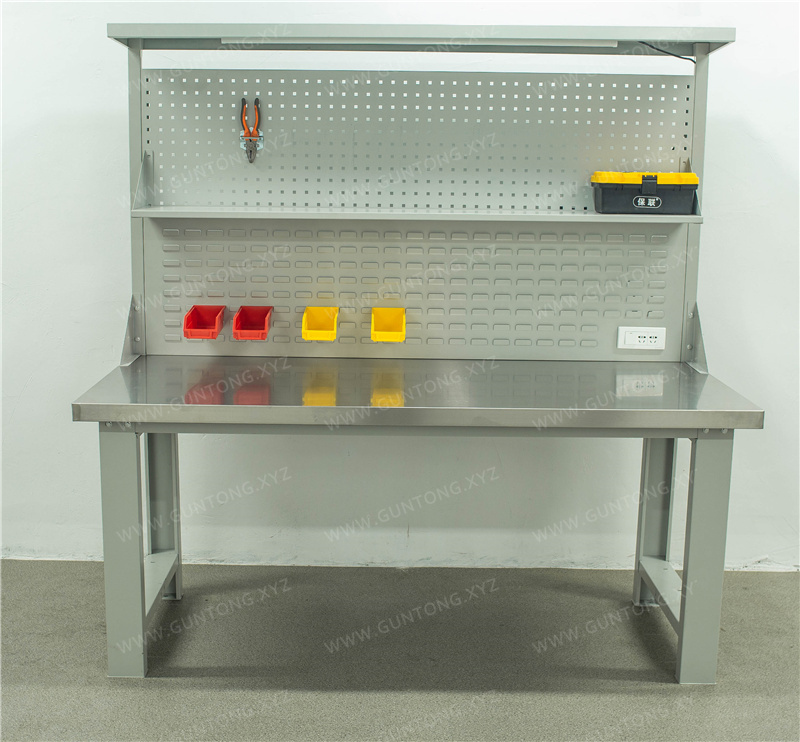

Double Pegboard Stainless Steel Workbench
The Guang'ermi Double Pegboard Stainless Steel Workbench features a 201 stainless steel-wrapped high-density board tabletop with a C-channel cold-rolled steel frame structure. Standard configuration includes dual pegboards (square hole + louver), LED light shelf, and multi-function power outlet, with a load capacity of up to 1000 kg. It is suitable for workstation scenarios requiring high corrosion resistance, dust protection, and durability, such as electronic assembly, automotive component inspection, laboratories, and cleanrooms.
Highlights
- Five-sided stainless steel-wrapped tabletop: corrosion-resistant, dust-proof, 1000 kg load capacity
- Dual pegboard design (square hole + louver) for flexible and efficient tool hanging
- Integrated LED lighting and industrial-grade power outlets, ready to use upon installation
- C-channel cold-rolled steel frame for structural stability, supporting heavy equipment installation
- Modular bolt-together structure, adaptable to factory relocation and production line adjustments
Specifications
- Tabletop Material & Thickness
- 1 mm 201 stainless steel, five-sided wrap over 49 mm high-density board, total thickness 50 mm
- Frame Material & Specification
- 1.5 mm cold-rolled steel plate, C-channel cross-section 100 × 50 mm
- Pegboard Configuration
- 450 mm high square hole pegboard (10 × 10 mm hole spacing) + 1 louver pegboard, board thickness 1.0 mm, 10 kg load per hole
- Light Shelf System
- Height 1000 mm, includes 16W LED fluorescent lamp and combined 2-hole/3-hole industrial power outlet
- Standard Color
- Grey-white (acid pickling & phosphating + electrostatic powder coating + 250℃ high-temperature baking)
- Packaging Method
- Knock-down bolt connection, carton packaging
Double Pegboard Stainless Steel Workbench | Balancing Functional Expansion and Industrial-Grade Load Capacity
The double pegboard stainless steel workbench launched by Guang'ermi Precision Components is specifically designed for modern manufacturing workstations that require high-frequency tool hanging, strong load-bearing capacity, and environmental resistance. The product integrates a modular pegboard system with stainless steel surface craftsmanship, enhancing 6S site management adaptability and long-term usage stability while ensuring structural strength.
Core Structural Features
- Composite Stainless Steel Desktop: Total thickness of 50mm, with 1mm 201 stainless steel five-sided wrapping around a 49mm high-density base material; flat and scratch-resistant surface, acid and alkali corrosion resistant; desktop static load capacity ≥1000kg;
- C-Type Main Frame: Cross-section of 100×50mm, formed by bending 1.5mm high-quality cold-rolled steel plate; overall load capacity reaches 1000kg, with a stable structure supporting heavy equipment installation;
- Dual-Function Pegboard System: Each side is equipped with one 450mm high square hole pegboard (10×10mm hole spacing) and one louver pegboard; single hole load capacity of 10kg, compatible with standard hooks, tool racks, and cable management components;
- Integrated Lighting and Power Supply: 1000mm height light bracket built-in with 16W LED fluorescent lamp and 2-in-3-hole integrated industrial socket, meeting the needs of lighting and plug-and-play equipment;
- Flexible Delivery Options: Disassemblable bolt-connected structure, packed in cartons, supporting factory inspection and full logistics tracking; gray-white is the standard color, other colors can be customized upon request (pickling and phosphating + electrostatic spraying + 250℃ high-temperature curing).
Common Specifications (Unit: mm)
| Model | L×W×H (incl. light bracket) | Gross Weight | Application Scenarios |
|---|---|---|---|
| GMM-DB1500 | 1500×750×800+1000 | 89.8kg | Small to medium workstations, inspection benches, electronics assembly lines |
| GMM-DB1800 | 1800×750×800+1000 | 103.1kg | Medium to large assembly workstations, mold debugging areas |
| GMM-DB2100 | 2100×750×800+1000 | 121.5kg | Multi-Process Integrated Workstation, Automotive Component Inspection Bench |
Note: The above are in-stock specifications; non-standard sizes, added drawers/pull bars/double-layer boards, and other extended configurations support one-on-one engineering customization.
