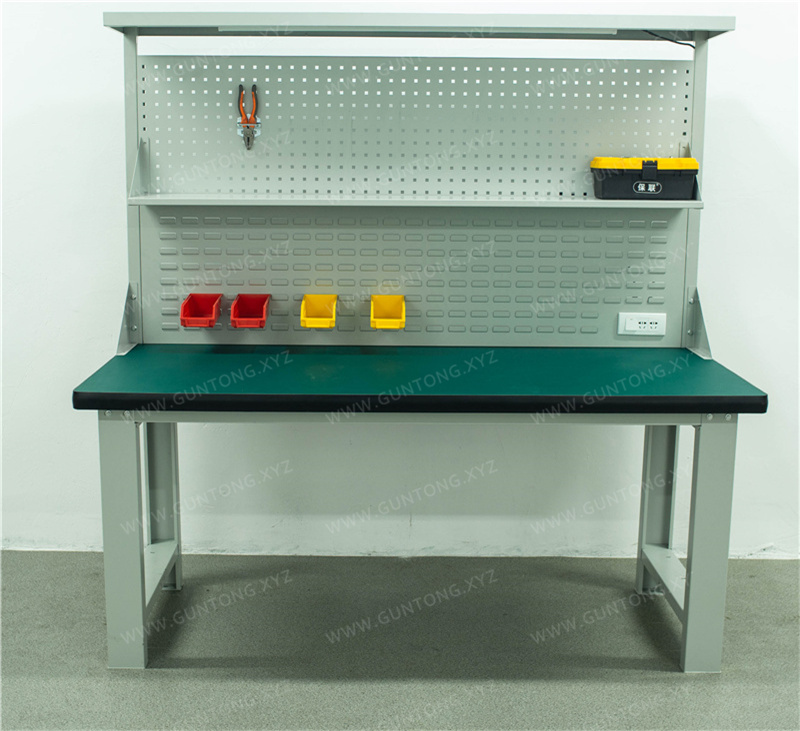

Double Pegboard Composite Workbench
The Double Pegboard Composite Workbench, independently developed by Guang'ermei Precision Components, features a C-channel cold-rolled steel frame and a 50mm thick composite desktop. It integrates a dual-system of square-hole and louver pegboards, supporting flexible tool hanging and 6S visual management. It is ideal for demanding workstation scenarios such as electronic assembly, automotive parts inspection, and hardware mold maintenance.
Highlights
- Dual Pegboard System: Square-hole and louver dual modules for more flexible tool hanging and intuitive 6S management
- 50mm Composite Desktop: Wear-resistant film + high-density board + PVC edge banding, 1000kg load capacity, impact and oil resistant
- C-Channel Cold-Rolled Steel Frame: 1.5mm thick material, 1000kg overall load capacity, stable and deformation-free structure
- Ready-to-Use: Bolted connections, carton packaging, supports factory inspection and logistics tracking
Specifications
- Desktop Structure
- 2mm green wear-resistant film + 48mm high-density board + black PVC edge banding, total thickness 50mm
- Frame Material
- 1.5mm cold-rolled steel plate, C-channel cross-section 100×50mm
- Pegboard Configuration
- 450mm height square-hole pegboard (10×10mm hole pitch) and louver pegboard, 1 piece each, 1.0mm board thickness
- Lighting System
- 1000mm height, integrated LED fluorescent lamp (16W) and 2/3-hole switch socket combo
- Surface Treatment
- Pickling and phosphating + powder electrostatic spraying, cured by baking at 250℃
- Standard Color
- Gray White
- Packaging Method
- Knock-down structure, bolted connections, carton packaging
Double Pegboard Composite Workbench: Modular Design × High-Load Capacity
The Guang'ermei Double Pegboard Composite Workbench is specifically designed for lean operations in modern workshops, integrating three core advantages: structural stability, functional expandability, and on-site adaptability. The product adopts standardized interfaces and a detachable structure, balancing rapid deployment with long-term durability, making it an ideal choice for workstation upgrades in industries such as electronics, automotive, and mold manufacturing.
Core Structural Features
- Composite Desktop System: Total thickness of 50mm, composed of a 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding, integrally hot-pressed for excellent wear resistance, oil resistance, and impact resistance, with a static load capacity of up to 1000kg;
- C-Type Main Frame: Cross-section of 100×50mm, bent and welded from 1.5mm high-quality cold-rolled steel plate, with a rated load capacity of 1000kg for the entire workbench, featuring high structural rigidity and low deformation rate;
- Double Pegboard Coordination System: Standard configuration includes one 450mm-high square-hole pegboard (10×10mm hole spacing) and one louver pegboard, with a single-hole load capacity of 10kg, supporting free combination and installation of various accessories such as tools, cables, and signage;
- Integrated Light Frame Module: 1000mm-high column-type light frame with built-in LED fluorescent lamp (16W) and integrated 2/3-hole switch socket, meeting both lighting and equipment power supply needs;
- Process and Delivery: Pickling and phosphating + powder electrostatic spraying, cured at 250℃ high temperature, with grayish-white as the standard color; bolt-connected detachable structure, carton packaging, supporting factory inspection and full logistics tracking.
Common Specifications and Configurations
| Model | Overall Dimensions (L×W×H mm) | Desktop Thickness | Gross Weight (kg) | Remarks |
|---|---|---|---|---|
| GMM-DGB-1500 | 1500×750×800+1000 | 50mm | 85.4 | In Stock |
| GMM-DGB-1800 | 1800×750×800+1000 | 50mm | 96.4 | In Stock |
| GMM-DGB-2100 | 2100×750×800+1000 | 50mm | 111.9 | In Stock |
Other sizes, colors, shelf configurations, and functional modules (such as drawers, pull stops, double-layer panels, etc.) are all supported for non-standard customization. Engineers will provide 3D layout drawings and configuration lists within 1 working day.
