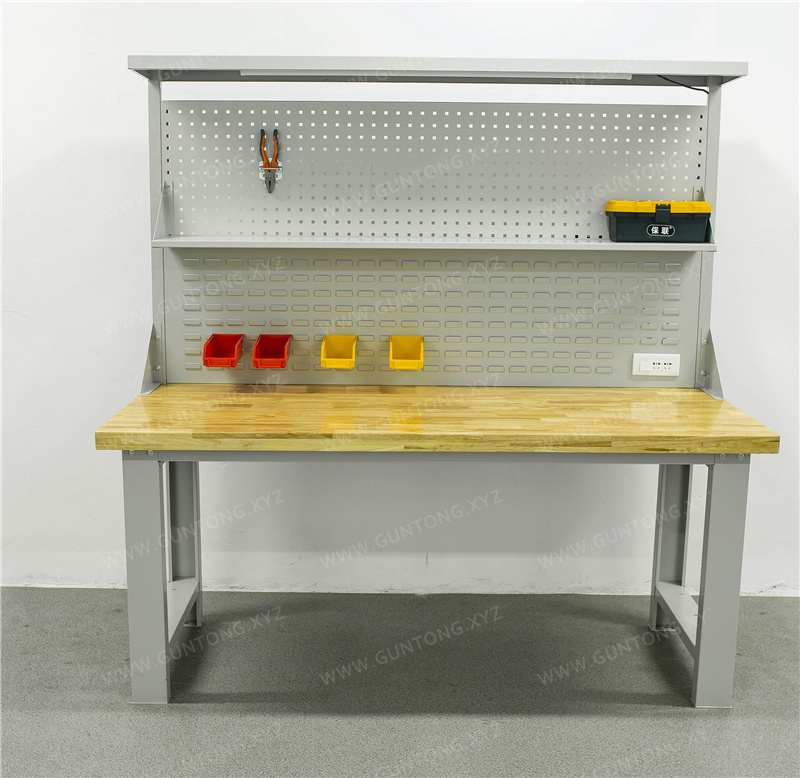

Double Pegboard Beech Wood Workbench
The Double Pegboard Beech Wood Workbench, independently developed by Guang'ermei Precision Components, features a 50mm thick finger-jointed beech wood tabletop combined with a C-channel cold-rolled steel frame. It delivers high load capacity (1000kg tabletop rating), strong impact resistance, and modular pegboard management, making it ideal for workstation environments in electronic assembly, automotive parts inspection, and mold fitting where both stability and tool organization are essential.
Highlights
- 50mm thick finger-jointed beech wood tabletop with 1000kg load capacity and strong impact resistance
- Dual pegboard design (square hole + louver), each hole rated at 10kg for efficient and organized tool storage
- C-channel cold-rolled steel frame with 1.5mm sheet steel, 1000kg overall load capacity, and stable reliable structure
- Integrated LED light bar and industrial power outlet for combined lighting and power supply
- Supports customization of non-standard dimensions, colors, pegboard configurations, and tabletop cutouts
Specifications
- Standard Dimensions (L×W×H mm)
- 1500×750×800+1000; 1800×750×800+1000; 2100×750×800+1000
- Tabletop Material & Thickness
- Imported beech wood, finger-jointed construction, 50mm total thickness
- Frame Material & Cross Section
- 1.5mm cold-rolled steel sheet, C-channel structure, 100×50mm cross section
- Pegboard Configuration
- 450mm high square hole pegboard (10×10mm hole spacing) + 1 louver pegboard, 1.0mm board thickness
- Light Bar Configuration
- 1000mm height, includes 16W LED fluorescent lamp and combined 2/3-hole switch power outlet
- Surface Treatment
- Acid pickling and phosphating + electrostatic powder coating, cured at 250℃
- Packaging
- Knock-down structure, bolt-connected, carton packaging
Double Pegboard Beech Wood Workbench Designed for High-Precision Operations
The Guang'ermei Double Pegboard Beech Wood Workbench combines the performance advantages of solid wood with industrial-grade structural reliability, featuring a 50mm thickened tabletop crafted from solid beech wood using finger-joint technology. The surface is dense, wear-resistant, quiet, and shock-absorbing, making it particularly suitable for fitter repair, small-scale machining, SMT auxiliary material assembly, and 6S visual management workstations.
Core Structural Features
- High-Strength Beech Wood Tabletop: Selected imported beech wood undergoes finger-jointing and hot-press shaping, with a total thickness of 50mm, a static load capacity of 1000kg, and superior bending rigidity compared to conventional composite board tabletops;
- Dual-Function Pegboard System: Standard configuration includes one 450mm high square-hole pegboard (10×10mm hole spacing) and one louvered pegboard, with a single-hole load capacity of 10kg, supporting standardized hanging of tools, measuring instruments, cable clips, etc.;
- Industrial-Grade Frame Structure: The C-type main frame has a cross-section of 100×50mm, formed by bending 1.5mm cold-rolled steel plate, with an overall load capacity of 1000kg. The bolted connection design facilitates disassembly, assembly, and on-site layout adjustments;
- Integrated Light Shelf Configuration: The 1000mm height light shelf is built-in with LED fluorescent lights (16W) and a combined 2-hole and 3-hole switch socket, meeting the integrated needs for lighting and equipment power supply.
Flexible Adaptation to Various Working Conditions
Three standard specifications are available in stock: 1500×750×800+1000mm, 1800×750×800+1000mm, and 2100×750×800+1000mm. Non-standard sizes, colors (gray-white/custom colors), pegboard quantities, shelf configurations, and tabletop hole drilling can all be customized as required. The surface treatment adopts pickling and phosphating plus powder electrostatic spraying, cured at a high temperature of 250℃, ensuring coating adhesion and corrosion resistance.
Typical Application Scenarios
- Electronic Manufacturing: PCBA rework stations, FCT testing workstations, ESD-sensitive component assembly areas;
- Automotive Parts: Small assembly inspection tables, brake pad grinding workstations, wiring harness sub-assembly tables;
- Hardware Molds: Mold accessory repair tables, EDM machining auxiliary tables, measuring instrument calibration workstations;
- Vocational Education: Electromechanical training tables, industrial robot debugging platforms, lean improvement teaching workstations.
