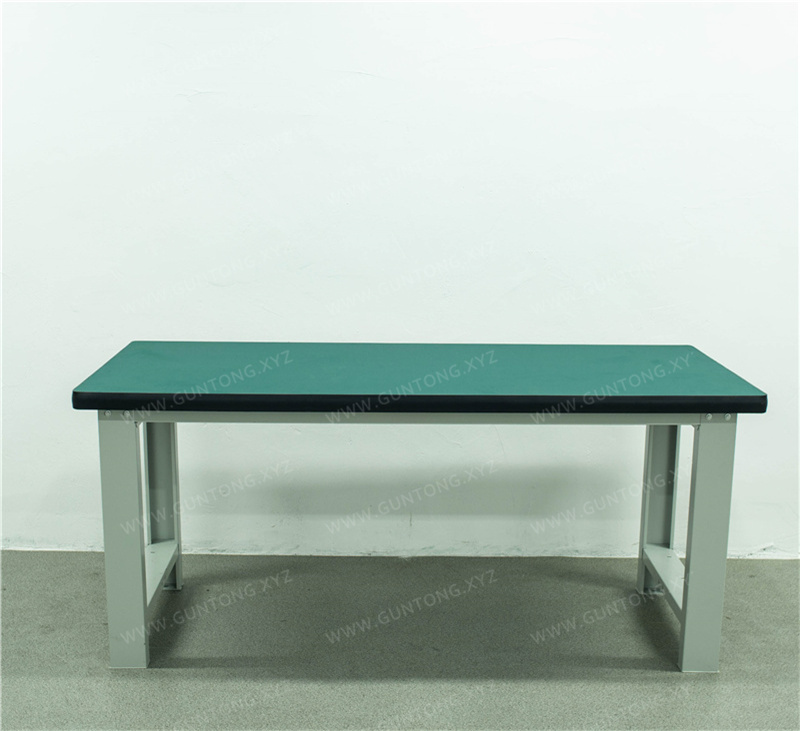

Composite Workbench Without Hanging Panels
Independently developed by Guang'ermei Precision Components, the panel-free composite workbench features a modular C-type frame and a 50mm high-load-bearing composite desktop structure. It balances industrial-grade durability with on-site assembly flexibility, making it ideal for workstations requiring high desktop flatness, impact resistance, and spatial cleanliness, such as electronic assembly, automotive parts inspection, and hardware mold debugging.
Highlights
- Panel-free integrated structure enhances on-site cleanliness and 6S compliance
- 50mm composite desktop: wear-resistant, oil-resistant, impact-resistant, with a load capacity of 1000kg
- C-type cold-rolled steel frame: pickled, phosphated, and electrostatically powder-coated for corrosion resistance and durability
- Three standard specifications available in stock, supporting rapid delivery and in-depth customization
Specifications
- Desktop Structure
- 2mm green wear-resistant rubber + 48mm high-density board + PVC edge banding, total thickness 50mm, machine-pressed integrated molding
- Frame Material & Process
- 1.5mm cold-rolled steel plate, C-section 100×50mm; pickling & phosphating + powder electrostatic spraying (baked at 250°C)
- Load Capacity
- Desktop static load ≥1000kg; overall rated load ≥1000kg
- Installation Method
- Bolt-connected detachable structure, carton packaging, supports factory inspection and logistics tracking
- Standard Color
- Gray-white (customizable to RAL color system upon request)
Panel-Free Composite Workbench Designed for Lean Workstations
The Guang'ermei panel-free composite workbench abandons the traditional hanging panel side-mounted structure, adopting an integrated desktop directly connected to a C-type main frame design, eliminating exposed side-mounted accessories to enhance overall aesthetics and compatibility with 6S on-site management. The desktop and frame are secured with high-strength bolts, supporting quick assembly/disassembly and repositioning to meet the needs of flexible production line adjustments and cross-workshop relocation.
Core Structural Advantages
- 50mm Composite Desktop: 2mm green wear-resistant rubber surface layer + 48mm high-density board substrate + black PVC anti-slip edge banding, hot-pressed into one piece, offering excellent wear resistance, oil resistance, and impact resistance, with a static load capacity of up to 1000kg;
- C-Type Main Frame: Cross-section of 100×50mm, formed by bending 1.5mm cold-rolled steel plate, surface treated with pickling and phosphating + powder electrostatic spraying (cured at 250℃ high temperature), achieving GB/T 1741-2020 Level 1 anti-corrosion standard;
- Panel-Free Structure: Eliminates side panel connections, with the desktop directly supported by the frame crossbeam, reducing interference risks and facilitating cable routing and cleaning maintenance underneath.
Standard Specifications and Customization Support
| Model | Overall Dimensions (L×W×H, mm) | Gross Weight (kg) | Supply Status |
|---|---|---|---|
| GM-WGB-1500 | 1500 × 750 × 800 | 59.8 | In Stock |
| GM-WGB-1800 | 1800 × 750 × 800 | 67.1 | In Stock |
| GM-WGB-2100 | 2100 × 750 × 800 | 75.9 | In Stock |
Other dimensions, colors (gray-white is the standard color), desktop material combinations (such as anti-static layers, stainless steel cladding, etc.), and functional extensions (such as embedded bench vises, lighting brackets, air source interfaces, etc.) are all available for non-standard customization.
