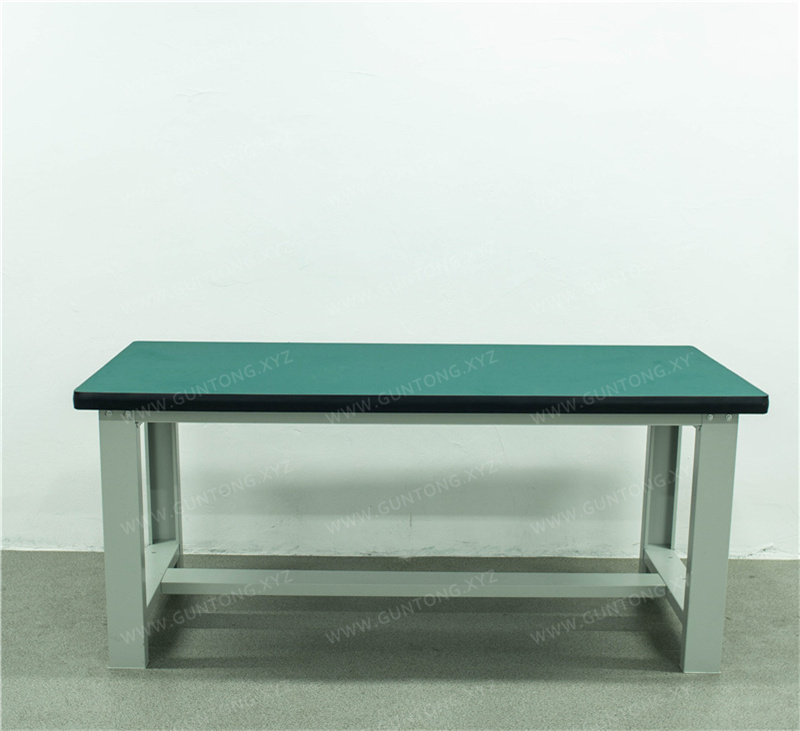

Backplate-Free Cross-Braced Composite Workbench
The backplate-free cross-braced composite workbench, independently developed by Guang'ermei Precision Components, features a modular assembly structure and a high-load composite tabletop. It is designed for workstation scenarios requiring spatial flexibility and operational stability, such as electronic assembly, automotive parts inspection, and mold maintenance.
Highlights
- Backplate-free design eliminates cleaning blind spots and enhances 6S execution efficiency
- 50mm composite tabletop balances wear resistance, impact resistance, and a quiet working experience
- Bottom single cross-brace structure enhances lateral stability and suppresses long-term deformation
- C-shaped cold-rolled steel frame with bolt-on quick-assembly structure balances strength and on-site deployment flexibility
Specifications
- Standard Dimensions
- 1500×750×800 mm | 1800×750×800 mm | 2100×750×800 mm (In Stock)
- Tabletop Composition
- 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding, 50mm total thickness
- Frame Specifications
- C-shaped cold-rolled steel, 100×50mm cross-section, 1.5mm thickness
- Load Capacity
- Tabletop static load ≥1000kg | Overall static load ≥1000kg
- Surface Treatment
- Pickling and phosphating + electrostatic powder coating, cured at 250°C
- Standard Color
- Gray-white (RAL color card customization available)
Backplate-Free Cross-Braced Composite Workbench | Lightweight Structure × High-Load Tabletop
The Backplate-Free Cross-Braced Composite Workbench launched by Guang'ermei Precision Components is specifically designed to enhance workshop 6S management efficiency and ergonomic adaptability. By eliminating the traditional backplate structure and reinforcing lateral rigidity through bottom cross-bracing, combined with an integrated composite tabletop and C-shaped cold-rolled steel frame, it ensures a static load capacity of 1000kg while achieving a cleaner visual appearance and easier cleaning and maintenance.
Core Design Advantages
- Backplate-Free Structure: Eliminates side backplates, reducing dust accumulation in dead corners and facilitating 6S visual management and daily wiping; the overall appearance is more minimalist and unified, meeting the aesthetic requirements of modern factories.
- Composite Wear-Resistant Tabletop: Total thickness of 50mm, composed of a 2mm green wear-resistant film + 48mm high-density board + black PVC edge banding, hot-pressed into shape, offering excellent oil resistance, impact resistance, and scratch resistance.
- Reinforced Cross-Brace Support: A single reinforced cross-brace is installed beneath the workbench body, effectively suppressing frame deformation under long-term use and extending the service life of the entire unit.
- Standardized Interfaces and Expandability: Bolt-connected assembly and disassembly structure supports subsequent addition of tabletop accessories (such as grounding terminals, tool backplates, lighting brackets, etc.), meeting the flexible upgrade needs of production lines.
Typical Application Scenarios
Widely used in:
• PCBA inspection and rework stations in electronics manufacturing production lines
• Assembly, debugging, and quality inspection benches in automotive parts factories
• Fitter mold repair and measurement work areas in hardware mold factories
• Multi-tool collaborative operation platforms in maintenance and testing centers
Basic Specifications
| Item | Parameter Description |
|---|---|
| Standard Dimensions (L×W×H) | 1500×750×800 mm | 1800×750×800 mm | 2100×750×800 mm (available from stock) Custom dimensions supported for non-standard sizes |
| Tabletop Structure | 50mm composite layer: 2mm green wear-resistant film + 48mm high-density board + black PVC edge banding Tabletop static load capacity ≥1000kg |
| Frame Material | C-shaped cold-rolled steel plate, cross-section 100×50mm, plate thickness 1.5mm Overall static load capacity ≥1000kg |
| Surface Treatment | Pickling and phosphating + powder electrostatic spraying, cured at 250℃ high temperature Standard color: gray-white; RAL color series customizable upon request |
| Packaging and Shipping | Knock-down carton packaging 1500 model gross weight approx. 62.5kg | 1800 model approx. 69.9kg | 2100 model approx. 78.8kg |
