6-Drawer Tool Cabinet

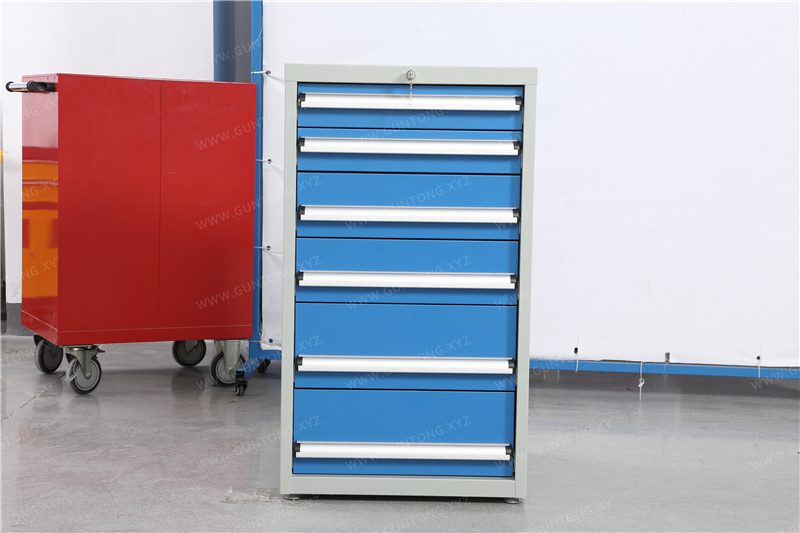

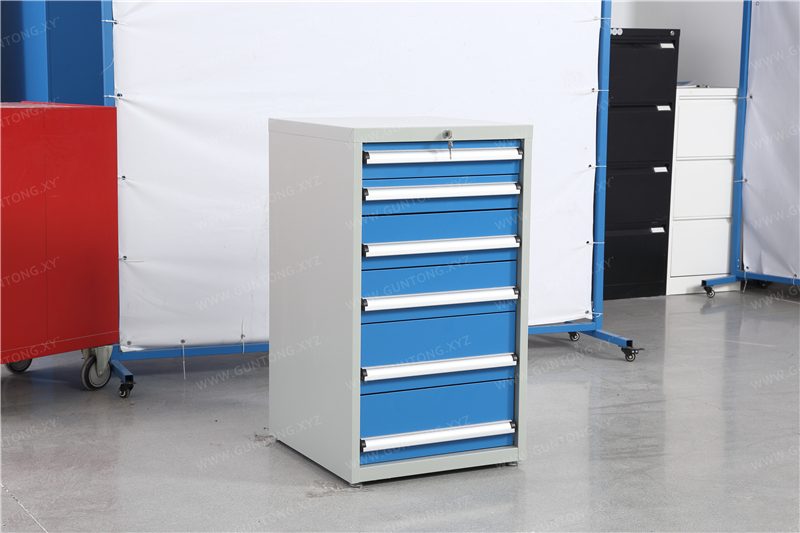

The 6-Drawer Tool Cabinet, custom-manufactured by Guang'ErMei Precision Components, features a cold-rolled steel construction with a 1.0mm cabinet body and 1.5mm drawer panels, equipped with a stamped single-rail guide system. Each drawer supports up to 80kg, meeting the 6S management and high-frequency access requirements of manufacturing workshops in electronics, automotive, mold-making, and other industries.
Highlights
- 80kg load capacity per drawer with 6 drawers in differentiated heights
- 1.0mm cabinet body + 1.5mm drawer panels, structural strength exceeding standard industry configurations
- Uniform 460×460mm internal dimensions, compatible with mainstream industrial bins and custom trays
- Gray-white cabinet body + blue drawer panels, compliant with 6S visual management standards
Specifications
- Overall Dimensions (W×D×H)
- 566 × 600 × 1000 mm
- Drawer Configuration
- 100mm H × 2 | 150mm H × 2 | 200mm H × 2
- Drawer Internal Dimensions
- 460 × 460 × Corresponding Height mm
- Guide Rail Type
- Stamped Single Rail
- Material & Thickness
- Cabinet Body
- Surface Treatment
- Eco-Friendly Powder Coating (Gray-White Cabinet Body, Blue Drawer Panels)
- Gross Weight
- Approx. 57kg
6-Drawer Tool Cabinet: Solid Structure · Scientific Layering · Reliable Load-Bearing
The Guang'Ermei 6-Drawer Tool Cabinet is specifically designed for refined workstation management in the manufacturing industry, balancing large-capacity storage with high-intensity usage scenarios. The cabinet body is integrally formed from high-quality cold-rolled steel plate, with an environmentally friendly baked paint finish that is rust-proof and wear-resistant. The gray-white main color paired with blue drawer panels provides clear visuals and distinct zoning, facilitating on-site visual management and 6S standardization implementation.
Core Structural Advantages
- Scientific Layered Drawer Layout:Equipped with 2 drawers at 100mm height, 2 drawers at 150mm height, and 2 drawers at 200mm height, meeting the classified storage needs for small tools, measuring instruments, standard parts, and long-handled tools; the internal dimensions are uniformly 460×460mm, compatible with mainstream standard bins and custom trays.
- High-Strength Load-Bearing Slide Rail System:All drawers come standard with stamped single slide rails, ensuring smooth operation and precise return. Each drawer has a rated load capacity of 80kg, maintaining long-term use without deformation or jamming.
- Industrial-Grade Material and Craftsmanship:The cabinet body thickness is 1.0mm, with drawer panels thickened to 1.5mm, significantly enhancing impact and deformation resistance; all bending, welding, and spraying processes are executed in accordance with ISO quality control standards.
Wide Range of Applications
Widely applied in typical scenarios such as centralized tool management for electronic assembly lines, fixed-position maintenance tools for automotive component production lines, zoned storage of cutters/fixtures in hardware mold factories, and precision measuring instrument placement in testing laboratories. It supports coordinated deployment with the full range of Guang'Ermei workstation equipment, including anti-static workbenches, lean pipe tooling racks, and wire rod transfer carts.
