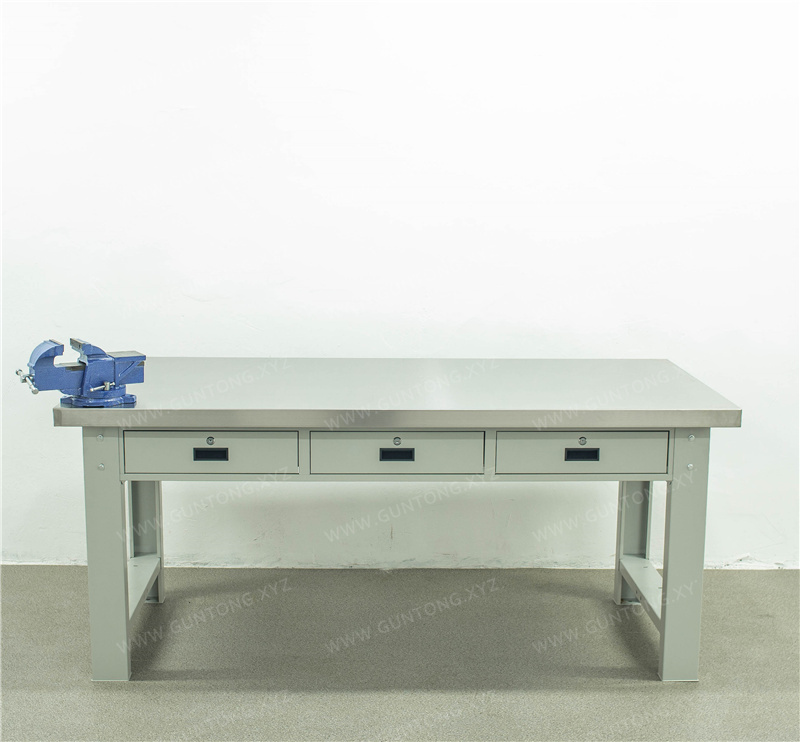

3-Drawer Stainless Steel Workbench with Heavy-Duty Bench Vise
Customized by Guang'er Mei Precision Components, this 3-drawer stainless steel workbench features a 201 stainless steel-wrapped high-density board tabletop and cold-rolled steel frame structure, integrated with a standard 4" heavy-duty bench vise. It delivers high load-bearing capacity, corrosion and dust resistance, and compatibility with workshop 6S management, making it ideal for fitter assembly, hardware processing, and mold repair applications.
Highlights
- Stainless steel 5-sided wrapped tabletop, 1000 kg load capacity, corrosion-resistant and easy to clean
- C-type cold-rolled steel frame with pre-embedded bench vise base for stable clamping and no deformation
- 3-drawer horizontal layout, 80 kg load capacity per drawer, compliant with tool positioning management requirements
- Standard 4" heavy-duty bench vise included (jaw width 100 mm / opening 120 mm), ready to use out of the box
- Supports non-standard customization of dimensions, colors, and bench vise orientation with fast response and reliable delivery
Specifications
- Standard Dimensions (L×W×H)
- 1500×750×800mm | 1800×750×800mm | 2100×750×800mm
- Tabletop Structure
- 1 mm 201 stainless steel 5-sided wrap over 49 mm high-density board, 50 mm total thickness
- Frame Material
- 1.5 mm cold-rolled steel plate, C-type cross-section 100×50 mm
- Drawer Configuration
- 3 horizontal drawers, internal dimensions per drawer: 320/420/520×430×115 mm, 80 kg load capacity per drawer
- Bench Vise Specifications
- Standard 4" heavy-duty, jaw width 100 mm, max opening 120 mm, net weight 11 kg
- Surface Treatment
- Gray-white electrostatic powder coating (baked at 250°C), optional color customization available
- Packaging & Installation
- Knock-down carton packaging, bolt-connected assembly, supports factory inspection and on-site installation guidance
Stainless Steel 3-Drawer Workbench Designed for Precision Operations
The 3-Drawer Stainless Steel Workbench with Heavy-Duty Bench Vise, launched by Guang'ErMei Precision Components, is a modular solution developed for frontline manufacturing workstation needs. While retaining the corrosion-resistant and easy-to-clean properties of stainless steel, this series enhances structural rigidity and tool integration capabilities, making it especially suitable for fitter, machine repair, quality inspection, and small-batch assembly operations that demand high positioning accuracy, clamping stability, and on-site cleanliness.
Core Structural Advantages
- 50mm Composite Worktop: 1mm thick 201 stainless steel fully wraps five sides of a 49mm high-density base material; the surface is flat with no weld seams, supports up to 1000kg, and is impact-resistant, acid- and alkali-resistant, and scratch-resistant;
- C-Channel Reinforced Frame: Formed from 1.5mm cold-rolled steel plate with a cross-section of 100×50mm; the entire workbench has a static load capacity of 1000kg, ensuring no shaking or deformation when the bench vise is clamped;
- Horizontal 3-Drawer System: Each drawer has an internal depth of 430mm and a height of 115mm × 3 layers, featuring a stamped single-rail structure with a load capacity of 80kg per drawer, meeting the categorized storage needs for common measuring tools, cutting tools, and auxiliary materials;
- Standard 4-Inch Heavy-Duty Bench Vise: Jaw width 100mm, maximum opening 120mm, net weight 11kg, with a pre-embedded reinforced base for stable and reliable clamping force; supports left- and right-side installation (advance notice required).
Flexible Adaptation to Manufacturing Sites
Available in three standard sizes in stock: 1500×750×800mm, 1800×750×800mm, and 2100×750×800mm; non-standard sizes can be customized. Gray-white electrostatic powder coating (cured at 250℃ high temperature) is the default color; other color schemes can also be provided according to the customer's 6S color coding or production line visual system. The entire unit uses a bolt-together assembly structure for easy transportation, on-site assembly, and later adjustments.
