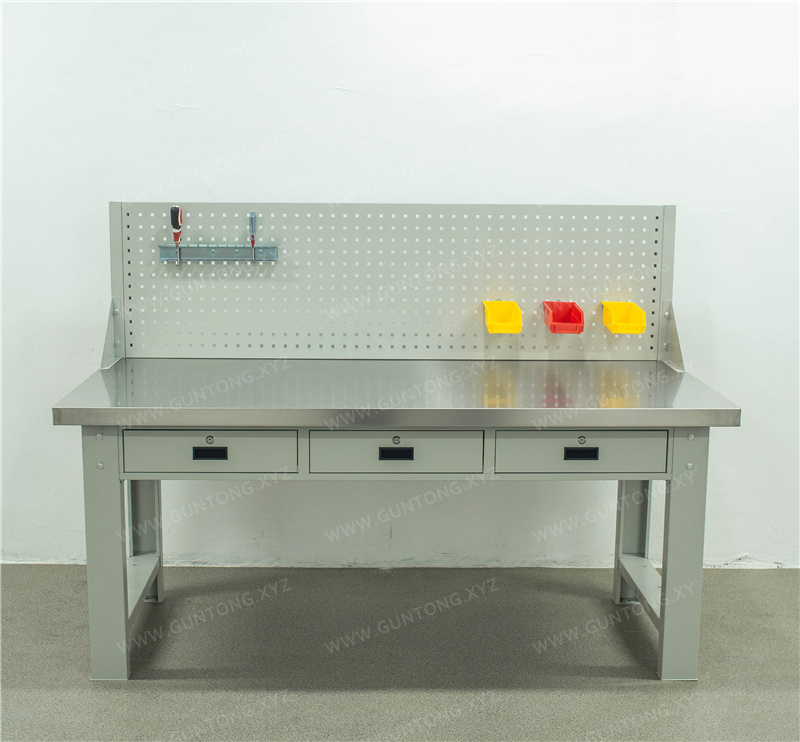

3-Drawer Single Pegboard Stainless Steel Workbench
Independently developed by Guang'ermei Precision Components, the 3-Drawer Single Pegboard Stainless Steel Workbench features a 201 stainless steel-clad high-density board tabletop and a cold-rolled steel frame. It delivers high load capacity (1000 kg overall), corrosion and dust resistance, and 6S workplace management compatibility, with multiple in-stock sizes and custom configurations available.
Highlights
- Five-sided stainless steel-clad tabletop for corrosion resistance, easy cleaning, and high load capacity
- 1000 kg overall load capacity with C-channel cold-rolled steel frame ensuring long-term stability
- Three horizontal drawers plus standard single pegboard for organized, visible, and quick-access tool storage
- Modular bolted assembly for rapid deployment and flexible reconfiguration
- Dual mode of in-stock sizes and custom fabrication to meet diverse production line layouts
Specifications
- Standard Dimensions (L×W×H + Pegboard H)
- 1500×750×800+500mm｜1800×750×800+500mm｜2100×750×800+500mm
- Tabletop Construction
- 1mm 201 stainless steel five-sided cladding over 49mm high-density board, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-channel 100×50mm
- Drawer Configuration
- Three horizontal compartments, 115mm height each, internal depth 320/420/520mm × width 430mm, 80 kg load per drawer
- Pegboard Specification
- 500mm high square-hole pegboard (10×10mm hole pitch), 1.0mm bare plate; louver pegboard optional
- Surface Treatment
- Default gray-white, pickling & phosphating + electrostatic powder coating, cured at 250°C
- Packaging
- Knocked-down carton packaging (tabletop, frame, pegboard, and drawer components individually packed)
Stainless Steel Workbench Optimized for Manufacturing Workstations
The 3-Drawer Single Pegboard Stainless Steel Workbench launched by Guang'ermei Precision Components is designed for production scenarios with high requirements for cleanliness, corrosion resistance, and tool access efficiency, such as electronic assembly, automotive parts inspection, and hardware mold maintenance. The product integrates three core advantages: structural stability, functional modularity, and on-site adaptability, making it an ideal platform for workshop standardization and lean manufacturing upgrades.
Core Structural Features
- Integrated Stainless Steel Tabletop: Total thickness of 50mm, consisting of a 49mm high-density substrate wrapped on five sides with 1mm thick 201 stainless steel. The surface is flat, wear-resistant, acid and alkali resistant, and easy to clean, maintaining its shape over long-term use; the static load capacity of the tabletop reaches 1000kg.
- High-Rigidity C-Frame: Cross-section of 100×50mm, formed from 1.5mm cold-rolled steel plate with full-weld reinforcement. The overall load capacity of the workbench reaches 1000kg, ensuring long-term stable placement of heavy equipment or materials.
- Three-Compartment Horizontal Drawer System: Each compartment has a height of 115mm, with internal depth options of 320/420/520mm × width 430mm depending on specifications. Equipped with stamped single-slide rails as standard, each drawer supports a load of 80kg, offering smooth, quiet, and durable operation.
- Standard Single Pegboard Configuration: 500mm high square-hole pegboard (hole spacing 10×10mm), made of 1.0mm bare plate material, with a single-hole load capacity of 10kg; louvered pegboard is available as an option to enhance visual tool management and spatial flexibility.
- Modular Knock-Down Structure: Fully bolted connection design for easy transportation, on-site assembly, and future adjustments; carton packaging reduces logistics damage and supports nationwide delivery.
Optional Configurations and Adaptability
Three mainstream sizes are available in stock: 1500×750×800+500mm, 1800×750×800+500mm, and 2100×750×800+500mm. Other combinations of length, width, and height, tabletop materials (such as 304 stainless steel upgrade), spray colors (gray-white is the default color, with pickling phosphating + electrostatic powder coating and 250℃ high-temperature curing supported), and additional features (such as foot-operated pull bar, shelf extension, and bench vise mounting position) can all be customized on demand.
Application Scenarios
Widely used in environments with clear requirements for hygiene levels, structural strength, and tool management efficiency, such as SMT patch production line auxiliary material areas, new energy battery module inspection workstations, automotive wiring harness assembly tables, mold repair rooms, laboratory instrument operating tables, and vocational college training platforms.
