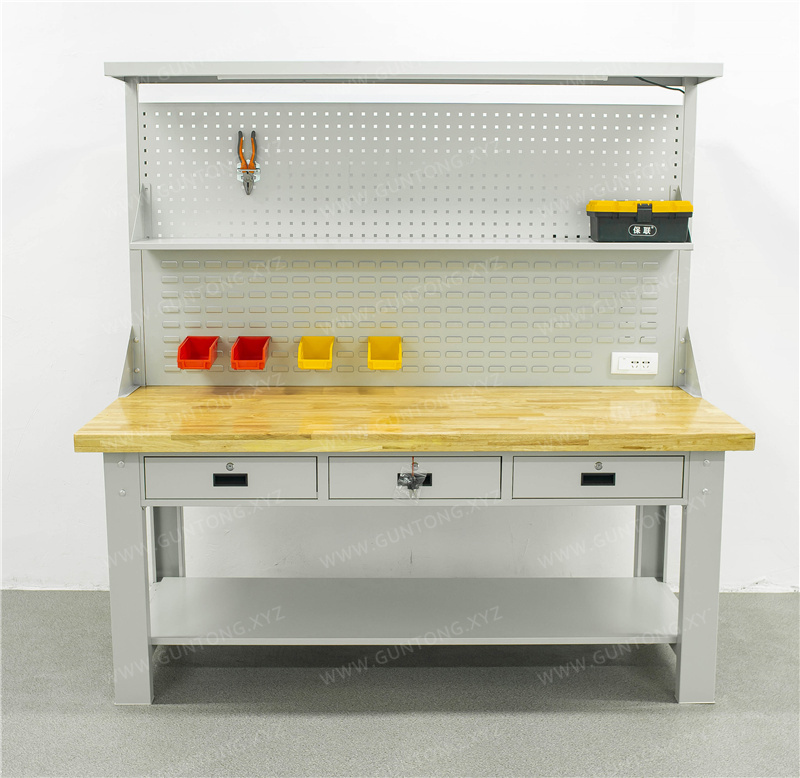

How to Match Workbench Dimensions to Workstation Layout: A Field Guide for Manufacturing Facilities
Manufacturing facilities, electronics assembly lines, and hardware mold factories frequently encounter a common planning problem: workbenches are ordered based on catalog sizes rather than actual workstation constraints. The result is cramped aisles, inefficient operator movement, or underutilized floor space. Matching workbench dimensions to a workstation layout is not a matter of picking the largest available table—it requires a structured evaluation of personnel, equipment, and spatial boundaries.
Signals That Your Workbench Dimensions Need Reevaluation
Before measuring or specifying new workbenches, look for these operational signals in your current workshop:
- Aisle congestion: Operators cannot pass each other or move material carts without stepping into adjacent work zones.
- Reach strain: Workers consistently lean forward or stretch sideways to access tools or components, indicating the workbench depth or width exceeds ergonomic reach zones.
- Equipment overhang: Test instruments, pneumatic tools, or small presses extend beyond the workbench surface, creating safety hazards.
- Underutilized vertical space: The area above or below the workbench is empty while tools and parts clutter the primary work surface.
These signals indicate that the current workbench length, width, or height does not align with the actual workstation layout.
Evaluation Criteria for Workbench Dimensions
Length: Matching Operator Count and Workflow Sequence
Workbench length should be determined by the number of operators and the sequence of tasks performed at each station. For single-operator assembly or inspection tasks, standard lengths such as 1500 mm or 1800 mm are typically sufficient. When two operators work side by side or when a sequential workflow requires multiple stations in a row, lengths of 2100 mm or longer become necessary.
At Guang'ErMei, composite-top workbenches with C-steel legs (100×50×1.5 mm profile) are available in standard lengths of 1500 mm, 1800 mm, and 2100 mm, with overall load capacities reaching 1000 kg. These dimensions serve as reliable baselines for electronics assembly, automotive parts inspection, and hardware mold maintenance scenarios.
Key rule: Allow a minimum of 600 mm of linear workspace per operator for light assembly, and 750–900 mm for tasks involving larger components or tooling.
Width (Depth): Balancing Reach and Equipment Footprint
Workbench width—often called depth in workshop planning—directly affects operator reach and comfort. A depth of 750 mm is the most common specification for general manufacturing workbenches, providing enough surface area for tools, components, and small fixtures while keeping everything within the operator's natural arm reach zone.
When workstations require integrated equipment such as oscilloscopes, soldering stations, or pneumatic presses, the depth may need to increase to 800–900 mm. However, exceeding 900 mm in depth typically forces operators to lean forward, reducing efficiency and increasing fatigue over long shifts.
Key rule: For seated work, keep the primary task zone within 400–500 mm from the operator's edge. For standing work, extend to 600 mm maximum.
Height: Aligning with Posture and Task Type
Workbench height must match the operator's working posture and the nature of the task:
| Task Type | Recommended Height | Posture |
|---|---|---|
| Precision assembly / electronics | 850–950 mm | Seated |
| General inspection / light assembly | 800–850 mm | Seated or standing |
| Heavy fitter work / mold maintenance | 750–800 mm | Standing |
| Packing / material handling | 700–750 mm | Standing |
A standard height of 800 mm covers most general-purpose applications in manufacturing and maintenance environments. For facilities with operators of varying heights, adjustable-height workbenches or anti-fatigue mats can compensate for minor mismatches.
Aisle and Spatial Clearance Requirements
Workbench dimensions cannot be evaluated in isolation—they must fit within the broader workstation layout, including aisle widths and adjacent equipment.
- Single-direction pedestrian aisles: Minimum 800 mm clearance between workbenches or between a workbench and a wall.
- Two-way pedestrian aisles: Minimum 1200 mm clearance.
- Material cart or forklift aisles: Minimum 1500–2000 mm, depending on cart width and turning radius.
- Tool cabinet or storage adjacency: When tool cabinets are placed behind or beside a workbench, add the cabinet depth (typically 400–600 mm) plus a 600 mm operator passage zone to your total spatial calculation.
Failing to account for these clearances is the most common cause of workstation layout failures after installation.
Implementation Boundaries and Risks
Load Capacity vs. Dimension Trade-offs
Larger workbenches do not automatically provide higher load capacity. A 2100 mm workbench with standard C-steel legs may have the same 1000 kg overall load rating as a 1500 mm model, but the distributed load per linear meter is lower. For heavy-duty applications such as mold repair or automotive parts testing, specify reinforced leg structures or additional cross-bracing rather than simply choosing a longer bench.
Non-Standard Customization Thresholds
Standard workbench dimensions (1500×750×800 mm, 1800×750×800 mm, 2100×750×800 mm) cover the majority of workshop scenarios. However, non-standard customization becomes necessary when:
- The workstation must fit into an irregular space or between fixed equipment.
- Integrated features such as built-in drawer cabinets, perforated tool hang boards, or specific cutouts for conveyor integration are required.
- The workbench must interface with automated storage and retrieval systems, where precise height and depth alignment with tote-based miniload systems (typically handling 50–100 kg per tote with rack heights up to 12 meters) is critical.
Guang'ErMei supports both standardized production and non-standard customization, with on-site workstation planning and load-bearing design services to ensure dimensional specifications match actual facility constraints.
6S and Lean Layout Adaptation
Workbench dimensions should also support your facility's 6S management goals. Oversized workbenches encourage clutter accumulation, while undersized benches force operators to store tools and materials in unauthorized locations. Aligning workbench dimensions with actual task requirements is a foundational step in maintaining sorted, set-in-order, and standardized workstations.
Practical Example: Electronics Assembly Workstation
Consider an electronics assembly workstation where two operators perform sequential soldering and inspection tasks:
- Length: 2100 mm provides 1050 mm per operator, accommodating soldering equipment, inspection magnifiers, and component trays.
- Depth: 750 mm keeps all tools within seated reach zones.
- Height: 800 mm suits seated precision work with adjustable chairs.
- Aisle clearance: 1200 mm behind the operators allows material cart passage.
- Storage: A four-drawer tool cabinet with hang board is positioned at the end of the bench, adding 600 mm to the total station footprint.
Total spatial footprint per dual-operator station: approximately 2700 mm × 1950 mm, including all clearances.
Next Steps for Workstation Planning
If your facility is planning a workstation upgrade or new production line layout, start by mapping the actual tasks, operator count, and equipment footprints at each station before selecting workbench dimensions. Standard sizes provide a cost-effective starting point, but non-standard customization ensures precise alignment with your spatial and operational constraints.
Guang'ErMei Precision Components provides on-site workstation planning, load-bearing design, and full-process delivery from manufacturing to installation for facilities across Huizhou, Guangdong Province, and nationwide. Contact our engineering team to discuss your specific workstation layout requirements.
