ESD Workbench Grounding Requirements Checklist: A Field Guide for Electronics Workshop Planners

Who Needs This Checklist

Electronics manufacturers, testing labs, and maintenance facilities handling sensitive components must control electrostatic discharge at every workstation. A poorly grounded ESD workbench can damage microelectronics, cause latent failures, or compromise quality audits. This field guide helps workshop planners, facility engineers, and procurement teams verify that an ESD workbench meets practical grounding requirements before deployment.

Guang'ErMei Precision Components designs and manufactures anti-static workbenches for electronics assembly, inspection, and repair scenarios across Guangdong and nationwide. The following checklist reflects real configuration patterns observed in these environments.

---

Signal 1: Desktop Surface and Grounding Path

The first checkpoint is the work surface itself. In a compliant ESD workstation, static charges must have a controlled path from the desktop to earth ground.

What to verify:

• ESD mat or ESD-integrated desktop:*
• The work surface should either be a purpose-built anti-static laminate or a standard surface (such as stainless steel) overlaid with an ESD mat. The mat connects to ground via a dedicated grounding wire and snap or terminal point.
• Grounding wire routing:*
• The grounding conductor from the mat must terminate at a verified earth ground point — not merely to the workbench frame, unless the frame itself is bonded to earth.
• Surface resistance range:*
• While specific resistance values depend on your internal ESD control plan (often referencing ANSI/ESD S20.20 or IEC 61340), the mat should fall within the dissipative range rather than being fully conductive or fully insulative.

Configuration note from practice: Some workshops use stainless steel workbenches with a separate ESD mat laid on top, connected to ground through a wrist strap grounding point at the desk corner. This approach works but requires periodic verification that the mat has not shifted or that the grounding snap has not loosened.

---

Signal 2: Frame Continuity and Structural Grounding

The workbench frame plays a dual role: it must bear the operational load and, in many configurations, serve as part of the grounding path.

What to verify:

• Metal frame bonding:*
• If the frame is used as a grounding conductor, all joints and bolted connections must maintain electrical continuity. Powder-coated or painted surfaces at connection points can interrupt this path — bare metal-to-metal contact or dedicated bonding jumpers are required.
• Load capacity alignment:*
• ESD workbenches in electronics assembly typically fall in the light-to-medium duty range. Guang'ErMei's anti-static workbench frames use 40×40×1.2mm square steel tubing with load capacities reaching up to 300 kg for standard configurations, which accommodates most assembly and testing setups including soldering stations, microscopes, and test fixtures.
• Leveling feet vs. casters:*
• Adjustable leveling feet provide stable ground contact on uneven floors. If casters are used for mobility, at least two should be conductive or static-dissipative to maintain the ground path when the bench is moved.

Risk boundary: A workbench rated for 300 kg in static load may experience different stress under dynamic conditions (e.g., leaning, equipment vibration). Always specify load requirements with a margin, and confirm that grounding continuity is maintained after any structural modification or accessory addition.

---

Signal 3: Accessory Integration Without Breaking the Ground Chain

Modern ESD workstations rarely consist of a bare table. Drawers, pegboards, shelving, and power rails all interact with the grounding scheme.

What to verify:

• Drawer and cabinet bonding:*
• Metal drawers and cabinets mounted on or under the workbench should be electrically bonded to the frame. Slides and hinges can create intermittent contact — verify continuity with a low-resistance ohmmeter after installation.

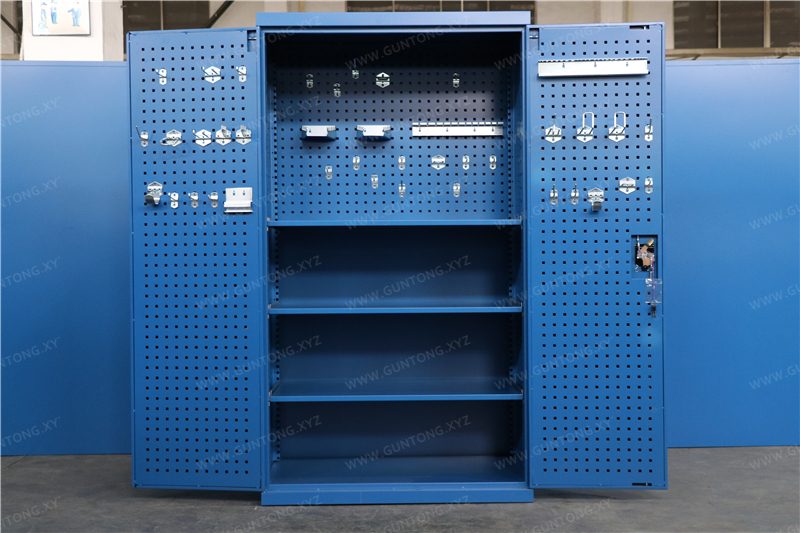

• Pegboard and tool rail grounding:*
• If a steel pegboard is mounted to the back panel of the workbench, it should be bonded to the same ground reference. Tools hung on the pegboard will then remain at the same potential as the work surface.
• Power and air supply routing:*
• Pre-drilled power holes at desk corners (a standard feature on Guang'ErMei workbenches) allow clean routing of electrical outlets and grounding bus bars. Ensure that the grounding bus is tied to the same earth reference as the ESD mat — not to a separate circuit ground that may have a different potential.
• Wrist strap stations:*
• At minimum, one wrist strap grounding point should be installed per operator position, connected through a 1 MΩ current-limiting resistor to the common ground point.

Practical example: In a dual-operator electronics assembly station, a 1800×750×800mm anti-static workbench can be configured with a full-width ESD mat, two wrist strap points, a rear pegboard for tool hanging, and under-bench drawers for component storage. All metal accessories bond to the frame, and the frame connects to the facility ground bus through a single verified point.

---

Signal 4: Environmental and Layout Considerations

Grounding performance is affected by the surrounding environment and workstation layout.

What to verify:

• Floor surface:*
• Conductive or static-dissipative flooring enhances the overall ESD control system. If the floor is standard epoxy or tile, the workbench ground path becomes even more critical since personnel grounding through footwear is less reliable.
• Humidity levels:*
• Low humidity (below 30% RH) increases static generation. In dry environments, verify that the ESD mat surface resistance remains within specification — some materials become more insulative as humidity drops.
• Adjacent equipment:*
• Welding stations, high-voltage test equipment, or large motors in the same area can introduce electrical noise or ground potential differences. ESD workbenches in these zones may need isolated ground runs back to the main building ground bar.

---

Evaluation Criteria Summary

| Checkpoint | Acceptable Condition | Common Failure |
|---|---|---|
| ESD mat to ground | Continuous path ≤ specified resistance | Loose snap connector, broken wire |
| Frame continuity | All joints < 1 Ω resistance | Paint or coating at bolt points |
| Accessory bonding | Drawers, pegboards bonded to frame | Plastic slides isolating metal parts |
| Wrist strap point | 1 MΩ resistor to common ground | Direct ground (no resistor) or open circuit |
| Load vs. rating | Operational load < 80% of rated capacity | Overloading causing frame deformation and joint separation |
| Floor and environment | Compatible flooring, humidity controlled | Dry air increasing surface resistance |

---

Risk Boundaries and What This Checklist Does Not Cover

This checklist addresses the physical workbench and its immediate accessories. It does not replace a full ESD control program, which should include:

• Personnel grounding (footwear, garments, wrist straps)
• Ionization for insulative materials that cannot be grounded
• Periodic verification and audit schedules per your applicable standard
• Packaging and transport ESD controls outside the workstation

If your facility requires third-party ESD certification or compliance with a specific standard (e.g., ANSI/ESD S20.20, IEC 61340-5-1), involve a qualified ESD auditor during workstation design and validation.

---
