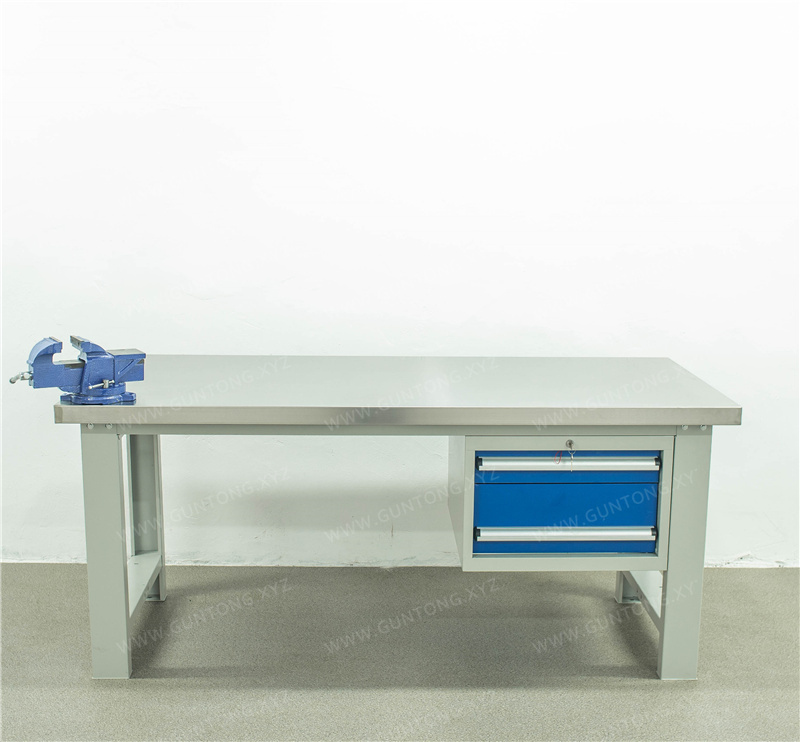

Two-Drawer Cabinet Stainless Steel Workbench with Bench Vise
Custom-manufactured by Guang'ermei Precision Components, this two-drawer cabinet stainless steel workbench integrates a 4-inch heavy-duty bench vise, ideal for benchwork assembly, machining, maintenance, and inspection in workshop environments demanding strong clamping force and corrosion resistance.
Highlights
- 50mm thick five-sided stainless steel wrapped worktop for corrosion resistance and high load capacity
- C-channel cold-rolled steel frame with dual-height drawers, balancing structural strength and storage efficiency
- Standard 4-inch heavy-duty bench vise for clamping, scribing, tapping, and other essential benchwork operations
- Modular bolt-together design for rapid on-site assembly and layout reconfiguration
- Customizable dimensions, colors, bench vise models, and other non-standard specifications
Specifications
- Common Dimensions (L×W×H, mm)
- 1500×750×800 | 1800×750×800 | 2100×750×800
- Worktop Structure
- 1mm 201 stainless steel five-sided wrap over 49mm high-density board, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-channel cross-section 100×50mm
- Drawer Configuration
- 2 drawers (100mm H × 1, 200mm H × 1), internal space 460×460mm, 80kg load per drawer
- Bench Vise Specification
- 4-inch heavy-duty cast iron bench vise, jaw width 100mm, max opening 120mm
- Surface Treatment
- Acid pickling & phosphating + gray-white electrostatic powder coating (250℃ baking)
- Packaging
- Knock-down bolt assembly, carton packaging
Stainless Steel Benchwork Table Designed for Precision Operations
This two-drawer cabinet stainless steel workbench is independently developed and manufactured by Guang'ermi Precision Components. It integrates a high-strength structure, a modular drawer system, and a professional-grade bench vise to meet the comprehensive needs of manufacturing sites for stability, corrosion resistance, and proximity tool management. The product adopts a bolt-connected knock-down structure for easy transportation, installation, and later adjustment, suitable for various industrial environments such as electronics, automotive parts, hardware molds, and vocational college training.
Core Configuration Highlights
- Integrated Stainless Steel Worktop: 50mm total thickness, 1mm 201 stainless steel five-sided wrapping over a high-density base material; flat and scratch-resistant surface, acid/alkali resistant and rust-proof, with a load capacity of up to 1000kg;
- Sturdy C-Steel Frame: 100×50mm cross-section cold-rolled steel frame (1.5mm thickness), with a rated load capacity of 1000kg for the entire unit, ensuring long-term use without deformation;
- Dual-Layer Practical Drawer System: Includes one 100mm and one 200mm height drawer, with an internal space of 460×460mm, equipped with stamped single rail guides; each drawer supports a load of 80kg and features a label slot for management;
- Standard Heavy-Duty Bench Vise: 4-inch (100mm jaw width) cast iron bench vise with an actual opening of 120mm and a net weight of approximately 11kg; features strong clamping force and high repeat positioning accuracy;
- Flexible Appearance and Delivery: Default finish is gray-white powder electrostatic coating (cured at 250℃ high temperature), with custom colors available upon request; standard specifications are in stock, and non-standard sizes can be quickly customized.
Typical Application Scenarios
· Automotive Parts Assembly and Rework Station
· Hardware Mold Debugging and Fitting Bench
· Electronics Factory SMT Equipment Maintenance Area
· Vocational College Mechanical Training Platform
· Precision Instrument Calibration and Testing Workstation
