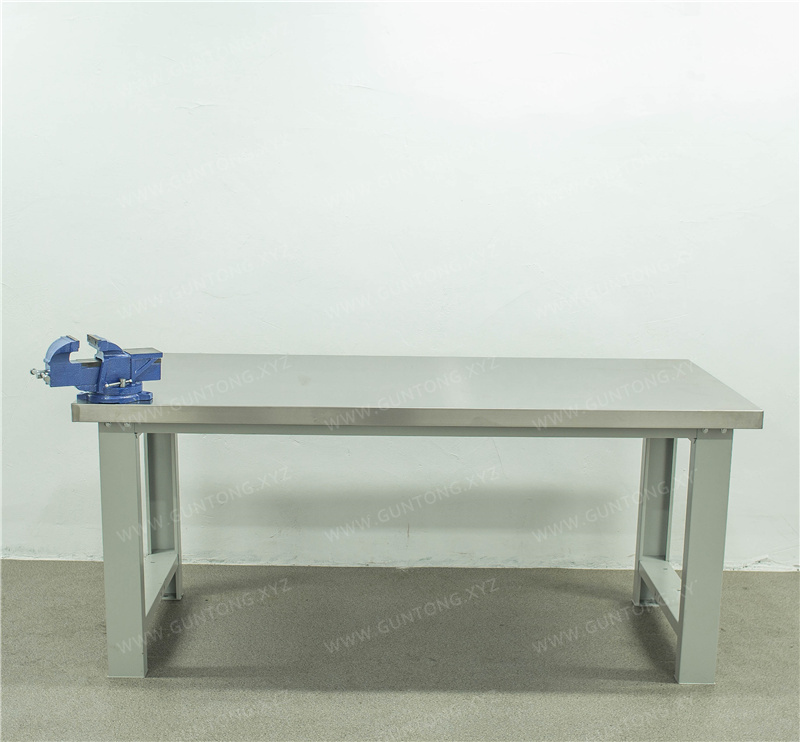

Stainless Steel Workbench with Bench Vise
Custom-manufactured by Guang'ermei Precision Components, this stainless steel workbench integrates a 4-inch heavy-duty bench vise, ideal for high-precision operations such as fitter assembly, equipment maintenance, and mold debugging. Featuring a 201 stainless steel-clad high-density board tabletop and a cold-rolled steel frame structure, it delivers superior load-bearing capacity, corrosion resistance, and compliance with 6S workplace management standards.
Highlights
- Standard 4-inch heavy-duty bench vise with 100mm jaw width and 120mm maximum opening
- 50mm thick five-sided stainless steel-clad tabletop: acid-resistant, alkali-resistant, easy to clean, and high load capacity
- C-type cold-rolled steel frame with 1000kg total load capacity; stable, detachable structure
- Supports versatile functional extensions including drawer units, cabinet units, and pegboard panels
Specifications
- Tabletop Material
- 1mm 201 stainless steel + 49mm high-density MDF, five-sided cladding, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-type structure, 100×50mm cross-section
- Bench Vise Specification
- 4-inch heavy-duty, 100mm jaw width, 120mm maximum opening, net weight approx. 11kg
- Standard Color
- Gray-white (acid pickling & phosphating + electrostatic powder coating + 250℃ high-temperature baking)
- Structural Design
- Modular bolted connection, carton packaging, supports rapid on-site assembly
- Application Scenarios
- Fitter assembly, equipment maintenance, mold debugging, electronic inspection, teaching & training, etc.
Guang'ermei Precision Components has focused on the R&D and manufacturing of workshop workstation equipment for over a decade. This stainless steel workbench with bench vise is specifically designed for high-intensity operational environments on the front lines of manufacturing, and is widely used in electronic assembly lines, automotive parts repair workshops, hardware mold factories, and vocational college training centers.
Core Advantages
- Sturdy Load-Bearing Structure: The C-type frame is formed from 1.5mm thick cold-rolled steel plate with a cross-section size of 100×50mm, and the entire table has a rated load capacity of 1000kg;
- Corrosion-Resistant and Durable Worktop: 50mm total thickness worktop, consisting of 1mm 201 stainless steel five-sided wrapping around 49mm high-density MDF, resistant to acid and alkali, rust-proof, and easy to clean, meeting the usage requirements of clean rooms and humid environments;
- Professional-Grade Bench Vise Configuration: Standard equipped with a 4-inch heavy-duty bench vise (net weight approximately 11kg), jaw width 100mm, maximum opening 120mm, strong clamping force, precise adjustment, and reliable locking;
- Flexible Adaptability: Supports knock-down bolt connection structure for easy transportation and on-site reassembly; standard gray-white coating (pickling and phosphating + electrostatic powder coating + 250℃ high-temperature curing), with color and surface treatment processes customizable upon request.
Typical Specifications
| Model | Overall Dimensions (L×W×H, mm) | Worktop Load Capacity | Total Gross Weight |
|---|---|---|---|
| GM-SSW-1500 | 1500×750×800 | ≥1000kg | 64.2kg |
| GM-SSW-1800 | 1800×750×800 | ≥1000kg | 73.8kg |
| GM-SSW-2100 | 2100×750×800 | ≥1000kg | 85.5kg |
Note: The above are standard stock specifications. Deep customization services are supported, including non-standard dimensions, drawer/pegboard/cabinet combinations, and bench vise brand upgrades (such as domestic precision or imported brands).
