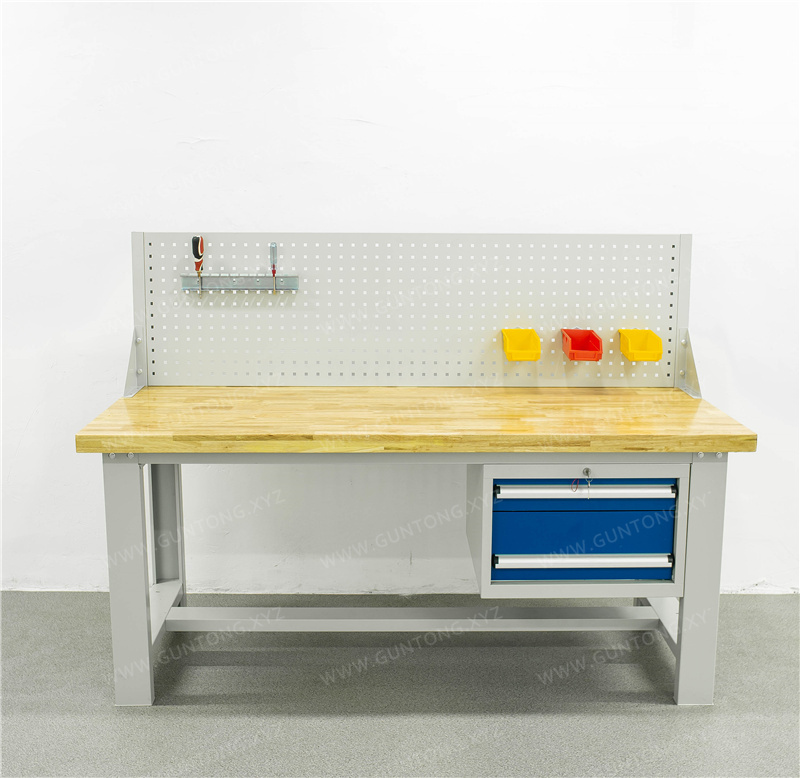

Single Pegboard, Two-Drawer with Bottom Rail Beech Wood Workbench
The beech wood workbench, independently developed by Guang'ermei Precision Components, features a finger-jointed beech tabletop (50 mm thick) and a C-type cold-rolled steel frame structure. It integrates a single pegboard, two drawers, and a bottom pull rail, delivering high load capacity, strong stability, and modular expandability. It is ideal for workstation scenarios in electronic assembly, automotive component inspection, and mold debugging, where tabletop precision and tool accessibility are critical.
Highlights
- Finger-jointed beech tabletop, 50 mm thick, 1000 kg load capacity, meeting machining-grade flatness requirements
- C-type cold-rolled steel frame with dual drawers and bottom pull rail – triple structural reinforcement eliminates tabletop wobble and deformation
- Square-hole pegboard with label slots and aluminum alloy handles, compliant with 6S visual management standards
- Modular design supporting flexible combinations of pegboard type, drawer quantity, tabletop material, and color
Specifications
- Tabletop Material & Thickness
- Imported beech finger-jointed construction, 50 mm total thickness
- Frame Material & Load Capacity
- 1.5 mm cold-rolled steel C-type frame, 1000 kg static load capacity
- Drawer Configuration
- 2 drawers (100 mm + 200 mm height), internal dimensions 460 × 460 mm, 80 kg per drawer
- Pegboard Specifications
- 500 mm high square-hole pegboard (10 × 10 mm hole spacing), 10 kg per hole; louvered pegboard optional
- Bottom Rail Structure
- 1 horizontal bottom rail to enhance torsional rigidity
- Surface Treatment
- Acid washing & phosphating + electrostatic powder coating, cured at 250°C
- Standard Color
- Gray-white (other RAL colors available upon request)
- Packaging
- Knock-down carton packaging, includes all fasteners and installation instructions
Beech Wood Workstation System Designed for High-Precision Operations
Guang'Er Mei Single Pegboard, Two-Drawer with Bottom Rail Beech Wood Workbench combines the performance advantages of a solid wood top with the reliability of industrial-grade steel structure, offering a standardized + customized solution for manufacturing site upgrades. The product strictly complies with workshop 6S management standards, supporting visual tool storage on the pegboard, layered and categorized drawer storage, anti-slip positioning via the bottom rail, and heavy-duty processing on the work surface.
Core Structural Features
- High-Strength Beech Wood Top: 50mm total thickness, multi-piece beech finger-joint process, surface flatness ≤0.3mm/m, static load capacity up to 1000kg, impact-resistant and scratch-resistant, suitable for drilling, milling, riveting, inspection and other processes;
- C-Type Main Frame: 100×50mm cross-section, 1.5mm cold-rolled steel plate bent into shape, overall load capacity 1000kg, bolt-connected dismountable structure for easy transportation and on-site reassembly;
- Dual-Function Drawer System: Equipped with 1 drawer of 100mm height + 1 drawer of 200mm height, internal space 460×460mm, standard stamped single rail, single drawer load capacity 80kg, panel made of 1.5mm cold-rolled plate + aluminum alloy handle + label slot;
- Expandable Pegboard System: Standard 500mm high square-hole pegboard (hole spacing 10×10mm, single hole load capacity 10kg), supports replacement with louvered pegboard or custom hook components for instant tool access;
- Lower Bottom Rail Structure: 1 horizontal bottom rail is set below the desk body to enhance overall rigidity, prevent lateral deformation of the top, and improve stability when placing large workpieces.
Basic Specifications and Configuration
| Item | Parameter Description |
|---|---|
| Common Specifications (L×W×H + Pegboard Height) | 1500×750×800+500mm | 1800×750×800+500mm | 2100×750×800+500mm (In Stock) |
| Cabinet Dimensions | 566×600×380mm (W×D×H), 1.0mm cold-rolled plate main body, 1.5mm drawer panel |
| Surface Treatment | Pickling and phosphating + electrostatic powder coating, 250℃ high-temperature curing, gray-white standard color (custom colors supported) |
| Packaging and Delivery | Carton separate packaging, including all connectors and installation instructions; supports factory inspection and full logistics tracking |
Application Scenarios
Widely used in:Electronic Manufacturing Line Assembly Workstations、Automotive Parts Inspection and Rework Tables、Hardware Mold Debugging and Mold Repair Area、School Training Center Benchwork/Machining Training Workbench, and can also be customized according to workshop layout, load capacity rating, ESD requirements, or 6S labeling standards.
