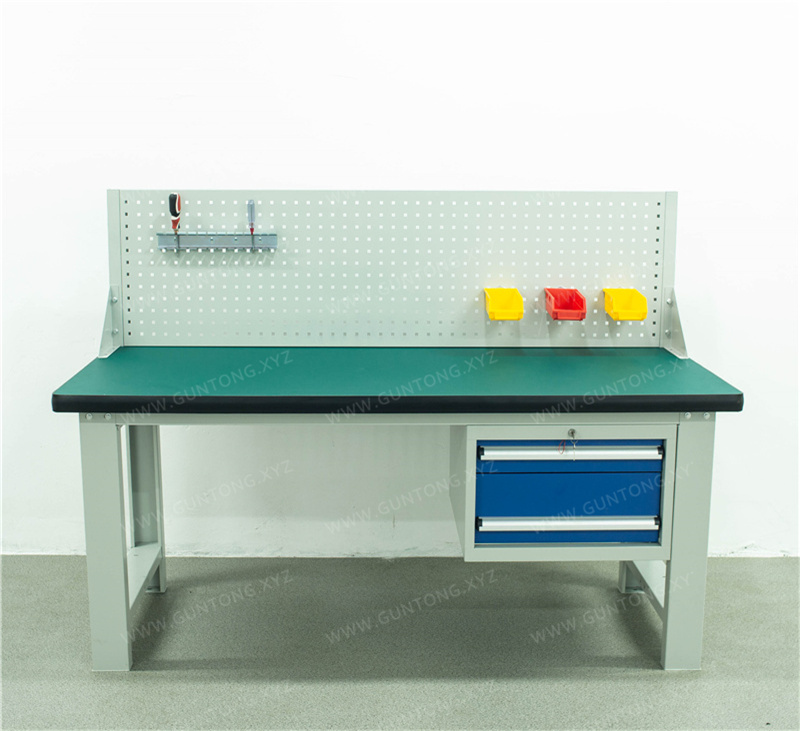

Single Pegboard Two-Drawer Composite Workbench
The Single Pegboard Two-Drawer Composite Workbench by Guang'ermei Precision Parts features a high-density board with wear-resistant laminate composite tabletop and a C-shaped cold-rolled steel frame. It balances load capacity, durability, and modular expandability, making it ideal for electronics assembly, automotive parts assembly, mold maintenance, and other multi-scenario workstation needs.
Highlights
- Composite Tabletop: 50mm thick wear-resistant laminate + high-density board, 1000kg load capacity, impact and oil stain resistant
- C-Shaped Cold-Rolled Steel Frame: 1.5mm sheet metal, 1000kg overall load capacity, stable and deformation-free structure
- Dual Drawers + Square Hole Pegboard: Tool compartmentalization for visual 6S management
- Modular Assembly Design: Bolt-connected, carton packaged for easy transport and installation
- Customization Supported: Dimensions, colors, pegboard types, and additional accessories configured on demand
Specifications
- Standard Dimensions (L×W×H + Pegboard H)
- 1500×750×800+500mm | 1800×750×800+500mm | 2100×750×800+500mm
- Tabletop Structure
- 2mm green wear-resistant laminate + 48mm high-density board + black PVC edge banding, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-section 100×50mm
- Drawer Configuration
- 2 drawers (100mm H ×1 + 200mm H ×1), inner space 460×460mm, single rail, 80kg load per drawer
- Pegboard Specification
- 500mm high square hole pegboard (10×10mm hole pitch), 1.0mm bare board thickness, louver pegboard optional
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying + 250°C high-temperature baking
- Color Options
- Standard gray-white, RAL color system customization supported
- Packaging Method
- Knock-down bolt connection, carton packaging
Composite Workbench Designed for Efficient Workstations
The Single Pegboard Two-Drawer Composite Workbench, independently developed by Guang'ermei Precision Components, integrates ergonomic layout with industrial-grade structural strength to meet the comprehensive requirements of modern workshops for functional integration, space utilization, and 6S management. The product supports both standard-size in-stock supply and custom non-standard configurations, adapting to different production line takt times and material storage logic.
Core Structural Advantages
- Composite Tabletop System: Total thickness 50mm, comprising a 2mm green wear-resistant vinyl sheet (oil-resistant, scratch-resistant) + 48mm high-density board substrate + black PVC edge banding. The tabletop has a static load capacity of up to 1000kg, with high surface flatness, facilitating labeling, positioning, and fixture installation;
- Sturdy Load-Bearing Frame: C-type main frame with a cross-section of 100×50mm, formed by one-piece bending of 1.5mm high-quality cold-rolled steel plate. The entire workbench has a rated load capacity of 1000kg and remains deformation-free under long-term use;
- Practical Drawer Configuration: Dual-drawer layout (one 100mm high + one 200mm high), internal clearance 460×460mm, equipped with stamped single-slide rails as standard. Each drawer has a load capacity of 80kg. Drawer fronts are made of 1.5mm cold-rolled steel plate with aluminum alloy handles and support label slot management;
- Flexible Pegboard System: Standard 500mm-high square-hole pegboard (hole spacing 10×10mm, single-hole load capacity 10kg), thickness 1.0mm. Can be replaced with louver pegboard or fitted with tool hooks, cable clips, and other accessories as needed, enabling visual tool management and instant access;
- Industrial-Grade Surface Treatment: Gray-white as the primary color, processed through acid pickling, phosphating, powder electrostatic spraying, and 250°C high-temperature curing. The coating offers strong adhesion, corrosion resistance, and easy cleaning. RAL color series customization is also supported.
Adaptable to Various Production Scenarios
This model is widely used in:
• PCBA assembly and inspection workstations on electronics manufacturing production lines
• Sub-assembly, rework, and small-parts temporary storage areas in automotive parts factories
• Fitter operations and measuring instrument storage in hardware mold workshops
• Multi-functional work platforms in repair and testing centers
• Standardized teaching workstations in vocational college training labs
Convenient Delivery and Service Support
Standard specifications (1500×750×800+500mm / 1800×750×800+500mm / 2100×750×800+500mm) are routinely stocked, with delivery within 7–10 working days after order placement. Non-standard dimensions and functional upgrades (such as adding shelves, pull stops, anti-static components, etc.) are supported with one-on-one solution design and sample confirmation. Factory inspection reports, 3D layout drawings, and installation guidance services are provided.
