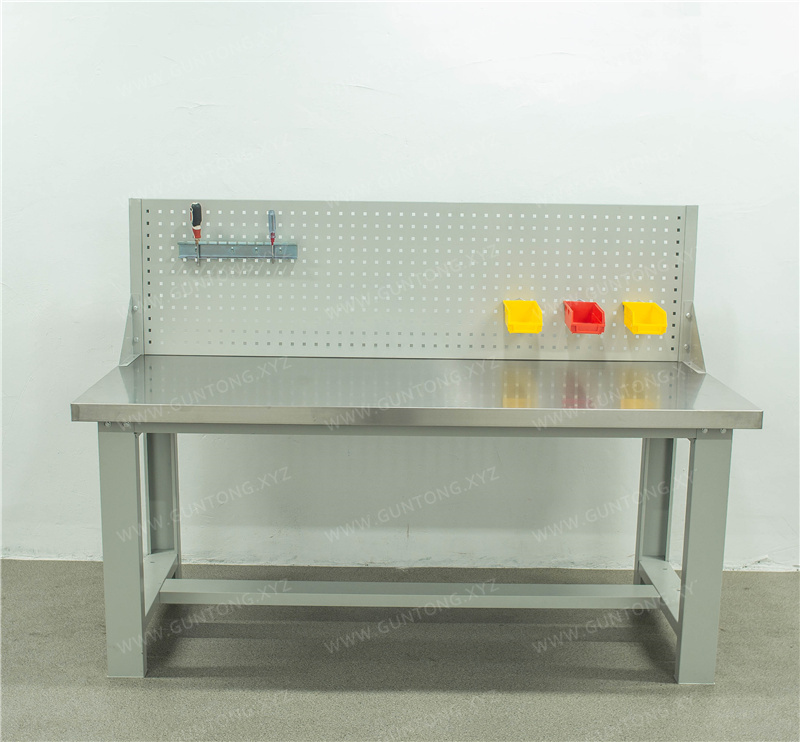

Single Pegboard Backstop Stainless Steel Workbench
The Single Pegboard Backstop Stainless Steel Workbench from Guang'ermei Precision Components features a 1mm 201 stainless steel-clad high-density board tabletop (50mm total thickness) with five-sided full cladding, balancing high load-bearing capacity and corrosion resistance. It comes standard with a C-type frame (100×50mm cross-section, 1.5mm cold-rolled steel plate), a single lower backstop structure, and a 500mm-high square-hole pegboard (10×10mm hole pitch, 10kg per hole load capacity), supporting modular assembly/disassembly and 6S workstation management integration.
Highlights
- Five-sided stainless steel-clad tabletop: corrosion-resistant, easy to clean, 1000kg load capacity
- C-type cold-rolled steel frame with lower backstop structure ensures high rigidity and zero wobble
- 500mm standard square-hole pegboard supports quick mounting of tools, cables, and small fixtures
- Full bolted assembly/disassembly design adapts to workshop relocation, production line adjustments, and continuous 6S improvement
Specifications
- Standard Dimensions (L×W×H, mm)
- 1500×750×800+500｜1800×750×800+500｜2100×750×800+500
- Tabletop Construction
- 1mm 201 stainless steel five-sided cladding over 49mm high-density board, 50mm total thickness
- Frame Material & Cross-Section
- 1.5mm cold-rolled steel plate, C-type structure, 100×50mm cross-section
- Backstop Configuration
- Single horizontal backstop bar beneath the tabletop
- Pegboard Specifications
- 500mm-high square-hole pegboard, 10×10mm hole pitch, 1.0mm board thickness, 10kg per hole load capacity (louvered pegboard optional)
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying, cured at 250°C
- Packaging
- Carton packaging, includes all fasteners and assembly instructions
Single Pegboard Backstop Stainless Steel Workbench Designed for High-Cleanliness and Strong Anti-Corrosion Environments
This series of workbenches is independently developed and mass-produced by Huizhou Guang'ermei Precision Components Co., Ltd., targeting manufacturing environments with clear requirements for dustproofing, anti-corrosion, and easy cleaning, such as electronic assembly, medical devices, food processing, laboratories, and automotive parts inspection. The products uphold the design philosophy of 'practical, durable, and efficient,' achieving balanced optimization in structural stability, mounting flexibility, and surface protection.
Core Structural Features
- Integrated Stainless Steel Tabletop: 1mm 201 stainless steel five-sided cladding over 49mm high-density substrate, total thickness 50mm, static load capacity up to 1000kg, flat and wear-resistant surface, resistant to weak acid and alkali corrosion;
- High-Rigidity Main Frame: C-type cold-rolled steel main frame (cross-section 100×50mm, plate thickness 1.5mm), overall load capacity 1000kg, ensuring long-term use without deformation;
- Practical Backstop + Pegboard Combination: A horizontal backstop is installed below the table body to enhance lateral rigidity; the top is equipped with a 500mm high standard square-hole pegboard (hole pitch 10×10mm, plate thickness 1.0mm), supporting quick mounting of tools, cable clips, small material boxes, etc., with optional louvered pegboard for improved ventilation and visibility;
- Flexible Installation and Expandability: Fully bolted connection for disassembly and assembly, facilitating transportation, on-site assembly, and later adjustments; compatible with other Guang'ermei pegboard accessories, drawer units, lighting components, grounding terminals, etc., to meet 6S on-site management upgrade requirements.
Basic Specifications and Delivery Information
| Model Dimensions (L×W×H mm) | Tabletop Structure | Frame Material/Thickness | Gross Weight (kg) | Standard Color |
|---|---|---|---|---|
| 1500×750×800+500 | 1mm 201 Stainless Steel + 49mm High-Density Board | 1.5mm Cold-Rolled Steel Plate | 83 | Gray-White (Pickling & Phosphating + Electrostatic Spraying, 250℃ High-Temperature Curing) |
| 1800×750×800+500 | Same as Above | Same as Above | 85.3 | Custom Colors Supported (RAL Code Required) |
| 2100×750×800+500 | Same as above | Same as above | 98.2 | —— |
Note: The above are standard in-stock specifications; non-standard sizes, thickened tabletops, 304 stainless steel upgrades, anti-static treatment, custom pegboard layouts, etc. can all be customized on demand, with production lead times confirmed based on specific plans.
