Pegboard Storage Cabinet (Inner Half-Pegboard Type)
The Pegboard Storage Cabinet (Inner Half-Pegboard Type), independently developed by Guang'ErMei Precision Components, features a cold-rolled steel construction that combines shelf load-bearing capacity with flexible pegboard access. It is designed for workstations in electronic assembly lines, automotive parts workshops, and mold maintenance areas where high-frequency retrieval of tools and consumables, along with 6S visual management, is required.
Highlights

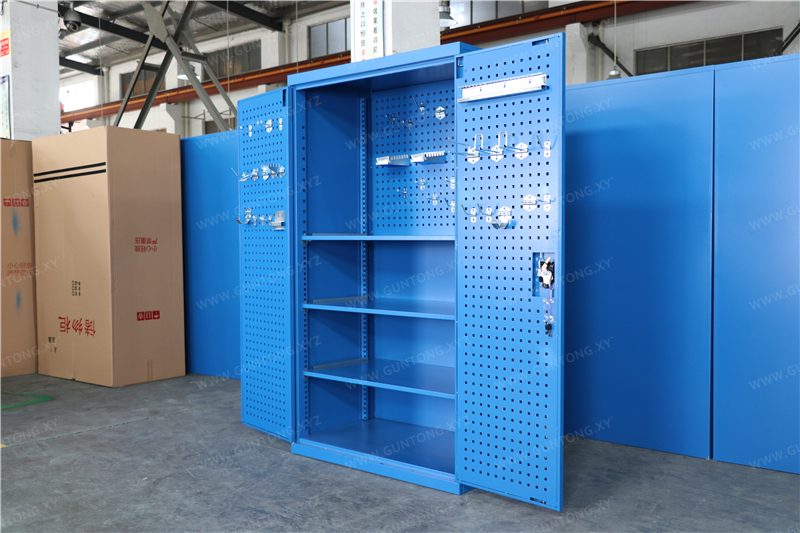

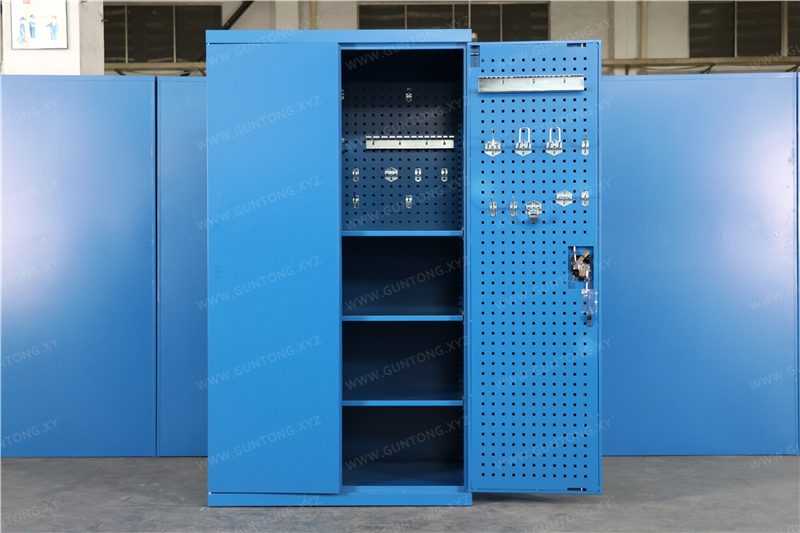

- Inner half-pegboard structure: upper interior section + dual pegboard layout on cabinet door for improved retrieval efficiency
- 100 kg load capacity per shelf; 3 adjustable shelves to meet heavy-duty material storage needs
- Standard square-hole pegboard system compatible with Guang'ErMei and industry-standard hooks
- Cold-rolled steel with electrostatic powder coating, meeting workshop durability and 6S visual management requirements
Specifications
- Overall Dimensions (W × D × H)
- 1000 × 500 × 1800 mm
- Main Body Material
- 1.0 mm or 1.2 mm cold-rolled steel
- Shelf Configuration
- 3 adjustable shelves, 100 kg load capacity per shelf
- Pegboard Placement
- 2 panels inside cabinet door + 1 set of square-hole pegboard in upper interior section
- Surface Treatment
- Acid washing & phosphating + electrostatic powder coating (standard blue, RAL5010)
- Application Scenarios
- Electronics, automotive parts, hardware molds, maintenance & inspection, vocational training, and other manufacturing workstations
Inner Half-Pegboard Storage Cabinet Designed for High-Frequency Access and Space Optimization
Guang'ermPegboard Storage Cabinet(Inner Half-Pegboard Type) is a modular storage solution developed to meet the refined management needs of modern manufacturing sites. Unlike traditional shelf cabinets or full-pegboard cabinets, this product integrates a standard square-hole pegboard system in the upper half of the cabinet interior, while also equipping two pegboards on the inside of the cabinet door, achieving dual-dimension mounting capability of 'inside cabinet + cabinet door', significantly improving the visibility, accessibility, and return efficiency of frequently used items such as small tools, measuring instruments, fixtures, label cards, and anti-static consumables.
Structural Features and Process Advantages
- High-Rigidity Main Structure: The cabinet body is made of 1.0mm or 1.2mm high-quality cold-rolled steel plate, processed through bending, welding, pickling and phosphating, and electrostatic powder coating. The surface is flat and scratch-resistant, with a blue (RAL5010) standard color scheme compatible with most workshop visual management systems;
- Layered Load-Bearing Design: Standard equipped with 3 adjustable shelves, each shelf can bear a uniformly distributed static load of up to 100kg. The edges of the shelves are designed with anti-slip folded edges to ensure the stability of heavy materials;
- Strong Pegboard Compatibility: Both the interior pegboard and the cabinet door pegboard adopt the internationally standard Φ6.5mm square-hole array (25mm spacing), which can seamlessly adapt to Guang'erm series hooks, baskets, brackets, and third-party standard hanging tools;
- Industrial-Grade Detail Processing: The cabinet door is equipped with high-strength hinges and an embedded door lock, ensuring smooth and stable opening and closing; the bottom is reserved with installation positions for leveling feet to adapt to uneven ground.
Typical Application Scenarios
This product is widely used in:
• SMT auxiliary material hanging area next to electronic assembly lines
• Torque wrench/calibration part fixed management area of automotive parts production lines
• Centralized hanging and taking station for measuring and testing tools in hardware mold maintenance rooms
• Lean improvement teaching aid display and storage unit in training classrooms
