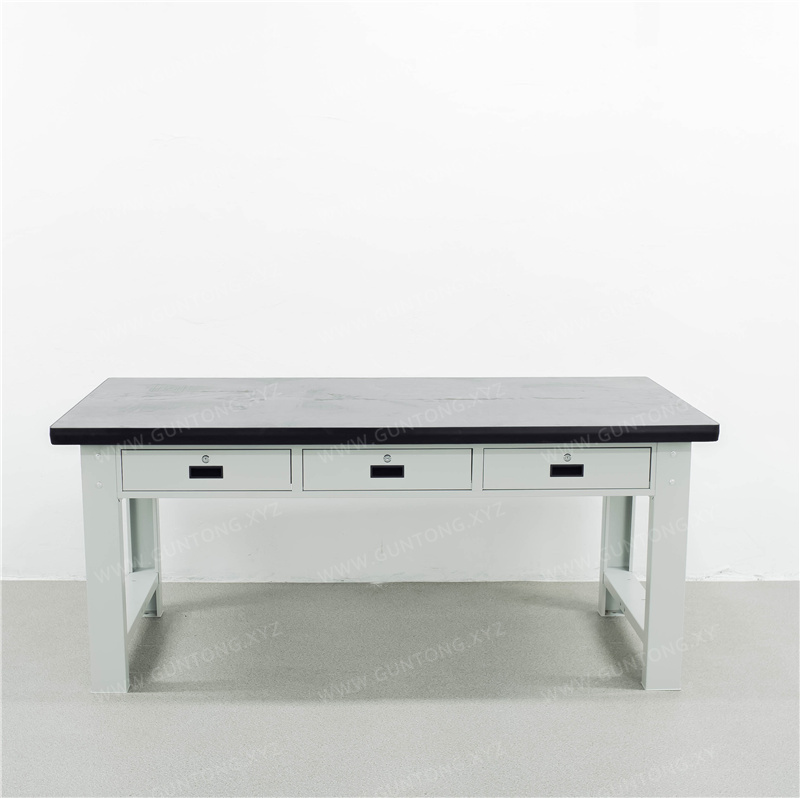

Heavy-Duty Three-Drawer Steel Plate Workbench
The Guang'ermei Precision Components Standard Series Heavy-Duty Three-Drawer Steel Plate Workbench features a C-type frame with a 5mm raw steel plate composite tabletop, supporting up to 1000kg per unit. It is designed for high-load workstation scenarios including electronic assembly, automotive parts maintenance, and hardware mold processing.
Highlights
- 50mm total tabletop thickness with 5mm raw steel plate layer, 1000kg load capacity
- C-type 100×50mm main frame, one-piece bent 1.5mm cold-rolled steel
- Three-drawer horizontal layout, 80kg per drawer, stamped single-rail guides
- Gray-white powder coating, 250℃ high-temperature baking, corrosion-resistant and easy to maintain
- Dual mode of standardized production and non-standard customization, with simultaneous response for stock and custom orders
Specifications
- Common Specifications (L×W×H)
- 1500×750×800mm / 1800×750×800mm / 2100×750×800mm
- Tabletop Structure
- 5mm cold-rolled steel plate + 45mm high-density board + PVC edge banding, 50mm total thickness
- Frame Material & Specifications
- C-type structure, 100×50mm cross-section, 1.5mm cold-rolled steel plate
- Drawer Configuration
- 3 horizontal drawers, 115mm height, internal dimensions by specification (320/420/520×430mm)
- Cabinet Plate
- 1.0mm bare plate cabinet
- Surface Treatment
- Pickling and phosphating + electrostatic powder coating, 250℃ high-temperature curing
- Packaging
- Knock-down bolt connection, carton packaging
High-Strength Load Capacity · Modular Design · Industrial-Grade Durability
The Heavy-Duty Three-Drawer Steel Plate Workbench, independently developed by Guang'Er Mei Precision Components, is specifically designed for high-load, high-frequency usage environments in manufacturing. The product follows the unified process specifications of the standard series, balancing structural stability, functional practicality, and on-site adaptability. It is widely used in electronic production line auxiliary material areas, automotive after-sales workstations, mold repair benches, and large equipment maintenance platforms.
Core Structural Advantages
- Composite Reinforced Tabletop: 5mm original cold-rolled steel plate + 45mm high-density base material + black PVC wear-resistant edge banding, total thickness 50mm, impact-resistant, high-temperature resistant, scratch-resistant, static load capacity ≥1000kg;
- C-Type Main Frame: Cross-section 100×50mm, 1.5mm cold-rolled steel plate bent and formed, strong overall structural rigidity, no deformation after long-term use;
- Three-Drawer Functional Layout: 3 independent drawers arranged horizontally (height 115mm), internal dimensions categorized by specification (320/420/520×430mm), standard stamped single rail, single drawer load capacity 80kg;
- Industrial-Grade Surface Treatment: Pickling and phosphating + powder electrostatic spraying, 250℃ high-temperature curing, gray-white as the main color, corrosion-resistant, easy to clean, supports custom colors on demand.
Flexible Configuration and Delivery Support
Available in three in-stock specifications: 1500×750×800mm, 1800×750×800mm, 2100×750×800mm; non-standard sizes support fast customization. The whole machine adopts bolt assembly structure, carton packaging, convenient for transportation and on-site assembly. Supports factory inspection, logistics tracking, and optional on-site installation guidance services.
