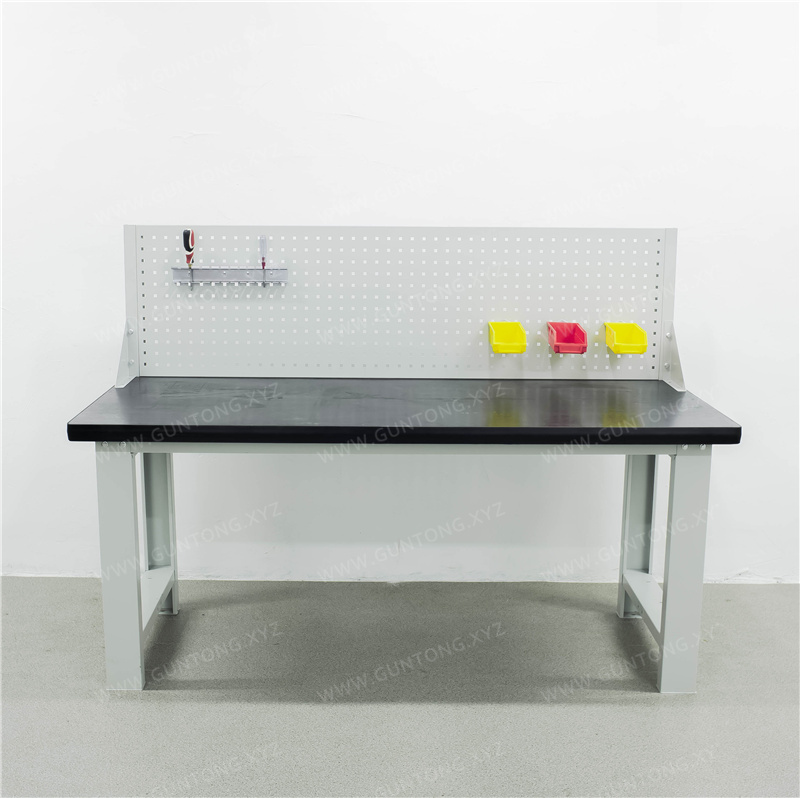

Heavy-Duty Single Pegboard Steel Workbench (Standard Series)
The Standard Series Heavy-Duty Steel Workbench, independently developed by Guang'ermei Precision Components, features a composite desktop structure of 5mm raw steel plate and high-density substrate. With a total load capacity of 1000 kg, it is designed for high-intensity manufacturing operations and supports modular pegboard expansion and custom non-standard dimensions.
Highlights
- 1000 kg total load capacity with a composite desktop of 5mm raw steel plate and high-density substrate
- Standard 500mm high square-hole pegboard (10×10mm hole spacing), upgradeable to louver panels and other options
- C-channel cold-rolled steel frame with pickling, phosphating, and electrostatic powder coating for corrosion resistance and durability
- Modular bolted connection structure for quick assembly, disassembly, and on-site leveling
- Three standard lengths — 1500/1800/2100mm — available in stock for shorter lead times
Specifications
- Desktop Structure
- 5mm cold-rolled steel plate + 45mm high-density board + black PVC edge banding, 50mm total thickness
- Frame Material
- 1.5mm cold-rolled steel plate, C-channel cross-section 100×50mm
- Pegboard Configuration
- 1× 500mm high square-hole pegboard (10×10mm hole diameter, 1.0mm board thickness)
- Surface Treatment
- Pickling & phosphating + electrostatic powder coating (250℃ high-temperature curing)
- Standard Color
- Light Grey (RAL 7035), other RAL colors available upon request
- Packaging
- Knock-down carton packaging, includes installation accessories and instruction manual
Standardized Steel Workbench Designed for Heavy-Duty Applications
The GEM Heavy-Duty Single Pegboard Steel Workbench is a core product of the Standard Series, designed for manufacturing scenarios such as electronic assembly, automotive parts inspection, hardware mold repair, and maintenance workshops, where load capacity, wear resistance, and tool hanging management are explicitly required. This series continues GEM's design philosophy of 'Practical, Durable, and Efficient', achieving balanced optimization in structural strength, ergonomics, and 6S site adaptability.
Core Structural Advantages
- Composite Steel Top: 5mm high-quality cold-rolled steel plate + 45mm high-density eco-friendly base material + black PVC anti-slip edge banding, with a total thickness of 50mm; high surface flatness, impact-resistant, high-temperature resistant, scratch-resistant, and deformation-free under long-term use; static load capacity of the worktop ≥1000kg.
- Sturdy C-Frame: The main frame is formed by bending 1.5mm cold-rolled steel plate with a cross-section size of 100×50mm, treated with pickling and phosphating + electrostatic powder coating (cured at 250℃ high temperature), reaching the Grade 1 standard of GB/T 1741-2020 for corrosion resistance.
- Standardized Pegboard System: Standard equipped with 1 piece of 500mm high square-hole pegboard (hole spacing 10×10mm, board thickness 1.0mm), with a single-hole load capacity of 10kg; supports quick replacement with louvered pegboards, hook strips, or customized functional panels to meet diverse hanging needs for tools, gauges, cables, fixtures, etc.
- Flexible Installation and Transportation: Full bolt-connected dismountable structure, pre-assembled at the factory + carton packaging, facilitating logistics transportation and rapid on-site deployment; supports leveling feet adjustment to adapt to uneven ground environments.
Common Specifications and Configurations
| Model | Overall Dimensions (L×W×H, mm) | Worktop Height (mm) | Pegboard Height (mm) | Gross Weight (kg) | Supply Status |
|---|---|---|---|---|---|
| GEM-SP1500 | 1500×750×800+500 | 800 | 500 | 103.6 | In Stock |
| GEM-SP1800 | 1800×750×800+500 | 800 | 500 | 120.9 | In Stock |
| GEM-SP2100 | 2100×750×800+500 | 800 | 500 | 137.3 | In Stock |
Note: Other lengths, widths, heights, and pegboard quantities/positions can be customized as needed; the default color is gray-white, with optional RAL color system selection.
