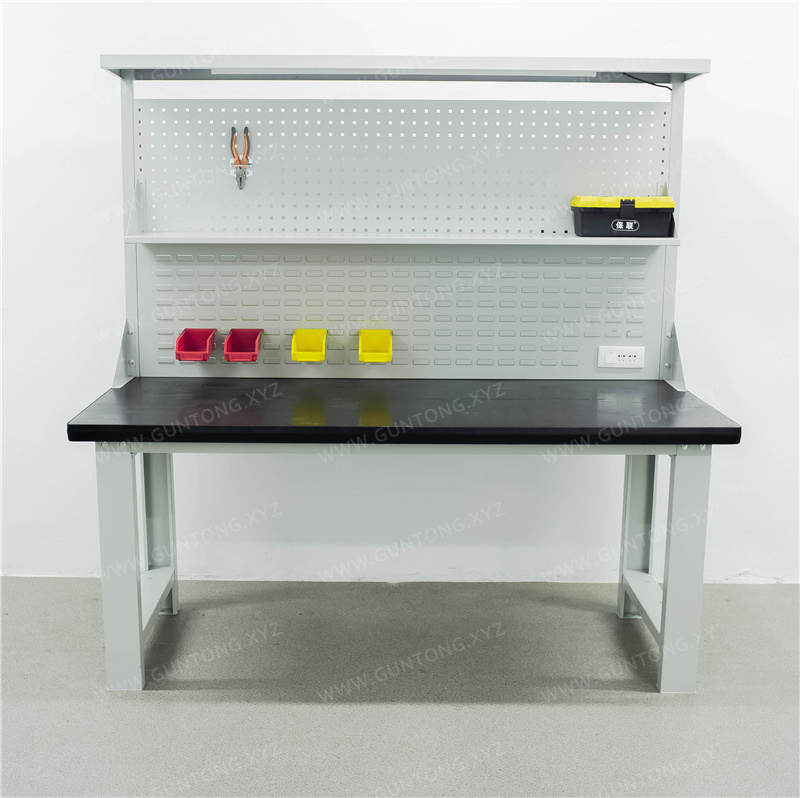

Heavy-Duty Double Pegboard Steel Plate Workbench
The Heavy-Duty Double Pegboard Steel Plate Workbench, independently developed by Guang'ErMei Precision Components, features a composite desktop structure of 5mm raw steel plate and high-density base material, with a total load capacity of 1000kg. It is designed for high-intensity applications such as automotive parts assembly, mold repair, and heavy-duty tooling.
Highlights
- 5mm raw steel plate + high-density board composite desktop, 1000kg load capacity, impact and heat resistant
- Double pegboard system (square hole + louver), 10kg load per hole, supporting modular tool management
- C-type 100×50mm cold-rolled steel frame, stable overall structure, suitable for heavy-duty tooling applications
- Integrated LED light bar + multi-hole power strip, meeting both lighting and equipment power supply needs
- Acid washing, phosphating + 250℃ high-temperature powder coating, standard gray-white color, custom colors available
Specifications
- Desktop Structure
- 5mm raw steel plate + 45mm high-density board + black PVC edge strip, 50mm total thickness
- Frame Material & Specification
- 1.5mm cold-rolled steel plate, C-type cross-section 100×50mm
- Pegboard Configuration
- Square hole pegboard (10×10mm hole spacing) + louver pegboard, 1 piece each, 450mm height, 1.0mm board thickness
- Light Bar System
- 1000mm height, includes 16W LED fluorescent lamp and combined 2-hole/3-hole power socket
- Standard Dimensions (L×W×H + Light Bar)
- 1500×750×800+1000mm / 1800×750×800+1000mm / 2100×750×800+1000mm
- Total Load Capacity
- ≥1000kg (static evenly distributed load)
- Surface Treatment
- Acid washing & phosphating + electrostatic powder coating, 250℃ high-temperature baking cure
- Packaging
- Knock-down bolt connection, carton packaging
High-Strength Load Capacity · Modular Pegboard · Industrial-Grade Durable Design
The Guang'ermei Standard Series Heavy-Duty Double Pegboard Steel Plate Workbench is specifically designed for heavy-duty workstation needs in the manufacturing industry. The desktop is made of 5mm original cold-rolled steel plate and 45mm high-density board hot-pressed and laminated together, with the surface covered by black PVC anti-slip rubber strips, combining wear resistance, impact resistance, and high-temperature resistance; the C-type frame is formed by one-piece bending of 1.5mm cold-rolled steel plate, with a cross-section size of 100×50mm, ensuring a stable static load capacity of up to 1000kg for the entire workbench.
Double Pegboard System: Flexible Expansion, Tools at Your Fingertips
Standard equipped with two sets of 450mm height pegboards—1 square-hole pegboard (10×10mm hole spacing, 10kg load capacity per hole) and 1 louvered pegboard, supporting quick installation of various hooks, trays, and tool racks; the pegboards are detachable and adjustable to meet the needs of 6S visual management and dynamic production line adjustments.
Integrated Light Frame and User-Friendly Details
The top integrates a 1000mm height light frame, built-in with 16W LED fluorescent lamp and 2/3-hole multi-function socket, achieving integrated lighting and power supply; the whole machine adopts pickling and phosphating + powder electrostatic spraying process, cured at 250℃ high temperature, with a gray-white coating that is scratch-resistant and wear-resistant, and also supports custom colors on demand.
Specifications and Delivery
Three standard sizes available in stock:1500×750×800+1000mm、1800×750×800+1000mm、2100×750×800+1000mm(Total height including light frame). Non-standard sizes support customization, with a bolt-connected detachable design, packaged in cartons for easy transportation and on-site assembly.
