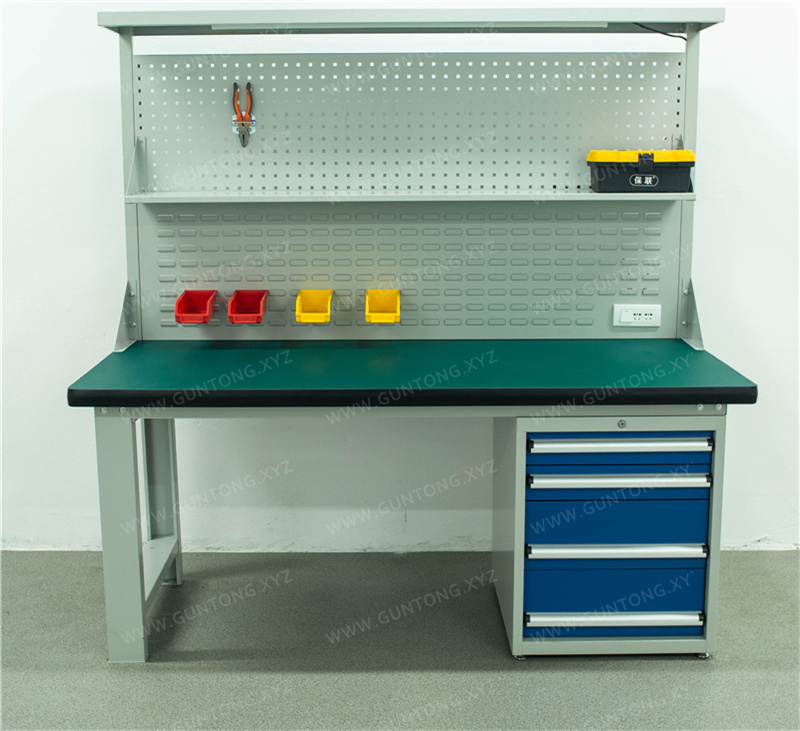

Double Pegboard Four-Drawer Composite Workbench
Independently developed by Guang'ermei Precision Components, the Double Pegboard Four-Drawer Composite Workbench features a modular knock-down structure integrating a high-load composite desktop, dual-type pegboard system, and LED lighting frame. It is ideal for workstations requiring advanced space management and load-bearing performance, such as electronic assembly, automotive parts inspection, and mold maintenance.
Highlights
- Composite Desktop: 50mm thick 3-layer structure, wear-resistant and oil-resistant, load capacity up to 1000kg
- Dual Pegboard System: Square hole + louver combination, 10kg load per hole for flexible tool hanging
- Four-Drawer Design: Mixed-height drawer configuration for categorized storage and high-frequency access
- Integrated Lighting Frame: Includes LED lighting and power outlets to enhance workstation functionality and safety
- Modular Production: Customizable dimensions, colors, and functional modules on demand
Specifications
- Standard Dimensions (L×W×H + Frame Height)
- 1500×750×800+1000; 1800×750×800+1000; 2100×750×800+1000 (mm)
- Desktop Structure
- 2mm green wear-resistant rubber mat + 48mm high-density board + black PVC edge banding, total thickness 50mm
- Frame Material
- 1.5mm cold-rolled steel plate, C-section 100×50mm
- Drawer Configuration
- 4 drawers (100mm H ×2 + 200mm H ×2), internal clearance 460×460mm, 80kg load per drawer
- Pegboard Specifications
- 450mm H × 750mm W, 1 square hole panel + 1 louver panel, 10×10mm hole pitch, 1.0mm bare panel thickness
- Lighting Frame Configuration
- 1000mm height, includes 16W LED light, 2/3-hole combo outlet, power cord
- Surface Treatment
- Pickling & phosphating + powder electrostatic spraying, cured at 250°C
- Packaging
- Bolt-connected knock-down structure, standard carton packaging
Structural Design Balancing Functionality and Expandability
This workbench features a C-frame as the main support structure with a cross-section of 100×50mm, formed by one-piece bending of 1.5mm cold-rolled steel sheet, providing a static load capacity of up to 1000kg for the entire table. The desktop has a total thickness of 50mm, composed of 2mm green wear-resistant rubber mat, 48mm high-density board, and black PVC edge banding laminated through hot-pressing process, offering excellent wear resistance, oil resistance, and impact resistance.
Four Drawers + Double Pegboard + Integrated Lighting for Efficient 3D Space Utilization
Equipped with four independent drawers (100mm high × 2 + 200mm high × 2), with internal dimensions of 460×460mm, featuring a stamped single-rail structure and a load capacity of 80kg per drawer; the cabinet dimensions are 566×600×700mm, with both the cabinet door and panel made of 1.5mm cold-rolled steel sheet, fitted with aluminum alloy handles and label slots for convenient 6S visual management.
A 450mm-high pegboard is installed on each side: one side features a square-hole pegboard (hole spacing 10×10mm), and the other side features a louver pegboard, with a bare board thickness of 1.0mm and a load capacity of 10kg per hole, supporting flexible mounting of standard accessories such as tools, measuring instruments, and cable clips.
The top integrates a 1000mm-high lamp rack, standard equipped with a 16W LED fluorescent lamp, a 2-in-1 and 3-hole integrated socket, and a power cord, meeting both lighting and equipment power supply needs.
Standardized Dimensions and Customized Adaptation in Parallel
Three standard specifications are available (unit: mm):
● 1500×750×800+1000
● 1800×750×800+1000
● 2100×750×800+1000
Supports non-standard dimensions, colors (gray-white as the standard color), surface treatment (pickling and phosphating + powder electrostatic spraying, cured at 250℃ high temperature), and additional functional modules, adapting to different workshop layouts and 6S management standards.
The entire unit adopts a bolt-connected knock-down structure, packed in cartons for convenient transportation and quick on-site assembly.
