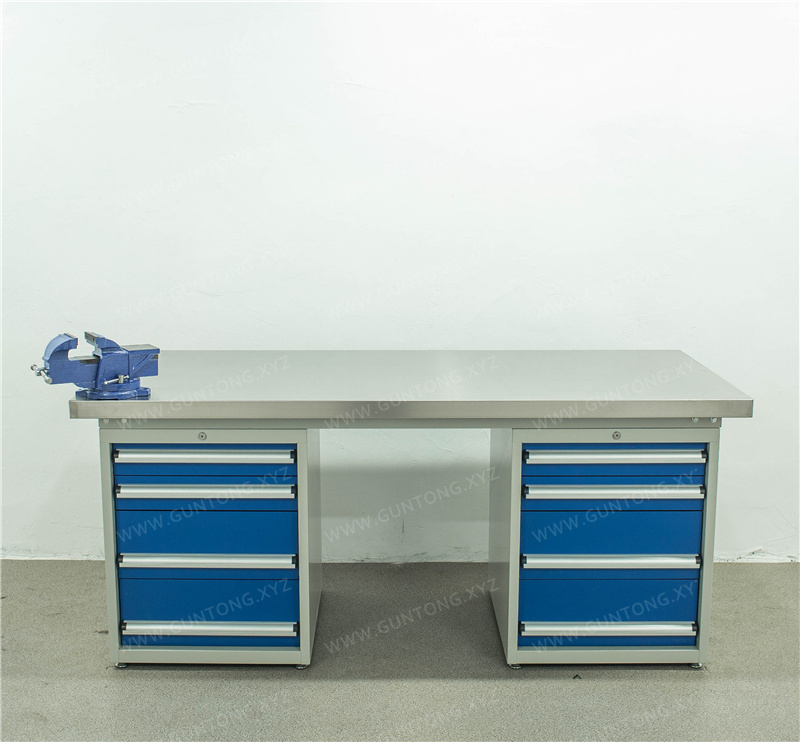

Double 4-Drawer Stainless Steel Workbench with Bench Vise
Guang'ermei Precision Components custom double 4-drawer cabinet stainless steel workbench, integrated with a 4" heavy-duty bench vise, designed for high-precision operations such as benchwork assembly, machining repair, and mold debugging. It combines high load capacity, corrosion resistance, and 6S workplace management requirements.
Highlights
- 5-sided stainless steel wrapped tabletop, load capacity ≥1000kg, acid/alkali resistant and easy to clean
- C-type cold-rolled steel frame, overall table load capacity 1000kg, ensuring bench vise operation stability
- Dual cabinet with 8 drawers total, layered storage + label management, compliant with 6S workplace standards
- Standard 4" heavy-duty bench vise (jaw width 100mm / throat depth 120mm), supports left or right installation
Specifications
- Common Specifications (L×W×H)
- 1500×750×800mm | 1800×750×800mm | 2100×750×800mm
- Tabletop Structure
- 1mm 201 stainless steel wrapped around 49mm high-density board, total thickness 50mm, 5-sided wrap
- Frame Material
- 1.5mm cold-rolled steel plate, C-type cross-section 100×50mm
- Drawer Configuration
- 2 cabinets × 4 drawers = 8 drawers; drawer interior 460×460mm; single drawer load capacity 80kg
- Bench Vise Specifications
- 4" heavy-duty bench vise, jaw width 100mm, maximum opening 120mm, net weight approx. 11kg
- Surface Treatment
- Gray-white powder electrostatic coating, cured at 250℃ high-temperature baking (custom colors available upon request)
- Packaging & Installation
- Knock-down bolt-connected structure, carton packaging, supports factory inspection and logistics tracking
High-strength stainless steel workstation designed for precision assembly and maintenance inspection
The Guang'ermei Double 4-Drawer Stainless Steel Workbench with Bench Vise is a modular solution deeply optimized for frontline manufacturing workstations. The entire unit adopts a stainless steel-clad composite tabletop with a cold-rolled steel frame structure, comes standard with a 4-inch heavy-duty bench vise, and supports multi-size stock supply and non-standard customization, meeting the comprehensive requirements for stability, corrosion resistance, and tool integration in scenarios such as electronic assembly, automotive parts repair, hardware mold debugging, and vocational college training.
Core Structural Advantages
- 5-Sided Stainless Steel-Clad Tabletop: 1mm thick 201 stainless steel fully clad over a 49mm high-density board substrate, with a total thickness of 50mm, load capacity ≥1000kg, scratch-resistant, wear-resistant, acid and alkali resistant, easy to clean, compliant with cleanroom and rust-proof anti-corrosion scenario specifications;
- High-Rigidity C-Type Frame: Cross-section 100×50mm, formed by bending 1.5mm cold-rolled steel plate, static load capacity of the entire table reaches 1000kg, ensuring no shaking or deformation during bench vise clamping operations;
- Double Cabinet Four-Drawer Efficient Storage: Each cabinet is equipped with 4 independent drawers (2×100mm high + 2×200mm high), internal space 460×460mm, fitted with stamped single rails, single drawer load capacity 80kg, aluminum alloy handle + label slot, compatible with 6S visual management;
- Industrial-Grade Bench Vise Integration: Standard 4-inch heavy-duty bench vise (net weight approx. 11kg), jaw width 100mm, maximum opening 120mm, stable clamping force, detachable for maintenance, supports left or right side installation to accommodate different operating habits.
Flexible Adaptation and Delivery Guarantee
Offers three mainstream specifications in stock: 1500×750×800mm, 1800×750×800mm, 2100×750×800mm; other sizes, colors (gray-white/custom colors), surface treatments (acid pickling phosphating + electrostatic spraying, 250℃ high-temperature curing), and functional expansions (such as pegboards, power boxes, lighting brackets, etc.) all support non-standard customization. The entire unit features a bolt-assembly structure, packaged in cartons for convenient transportation and quick on-site assembly.
