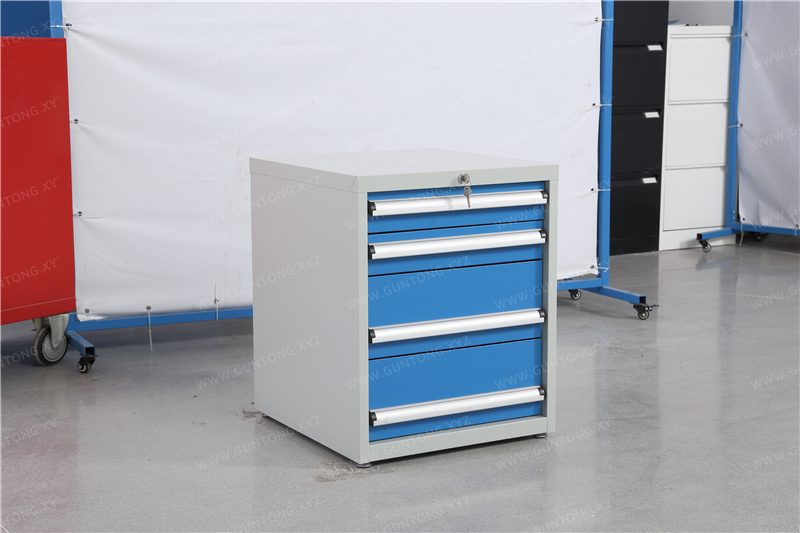

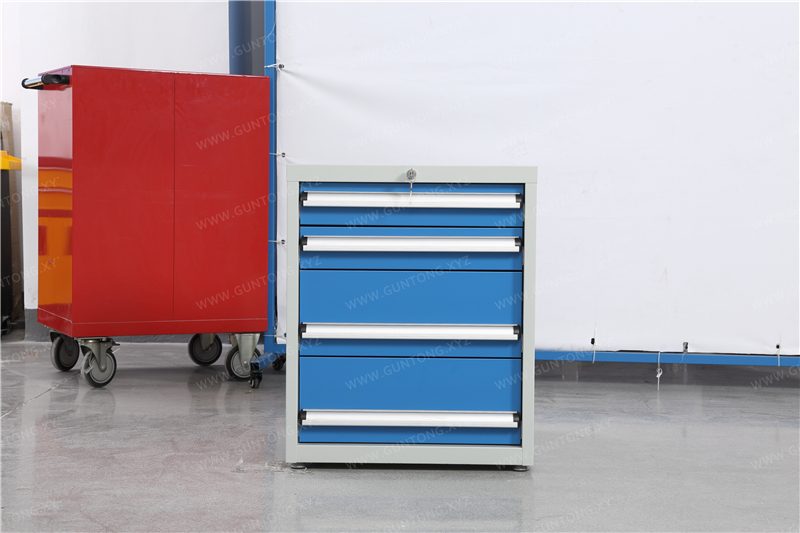

4-Drawer Tool Cabinet
The 4-drawer tool cabinet, independently developed by Guang'ermei Precision Components, features a cold-rolled steel construction with a 1.0mm cabinet body and 1.5mm drawer front panels. It is equipped with dual-specification stamped single-rail drawers (2×100mm high + 2×200mm high), with each drawer supporting up to 80kg, meeting the comprehensive needs of electronics, automotive parts, and hardware mold manufacturing scenarios for tool classification storage, quick retrieval, and on-site 6S management.
Highlights
- 1.0mm cabinet body + 1.5mm reinforced drawer front panels, gross weight approx. 40kg, stable and reliable structure
- Dual-specification drawer combination (100mm×2 + 200mm×2), internal dimensions 460×460mm, compatible with mainstream tool boxes
- Single drawer load capacity 80kg, total static load capacity ≥320kg, meets long-term heavy tool storage needs
- Standard gray-white cabinet body + blue drawer front panels, custom coating colors available per customer VI
Specifications
- Overall Dimensions (W×D×H)
- 566 × 600 × 700 mm
- Drawer Specifications
- 100mm high × 2 + 200mm high × 2; internal 460 × 460 × (95 / 195) mm
- Sheet Thickness
- Cabinet body
- Slide Rail Type
- Stamped single-rail (no ball bearings, high load stability)
- Single Drawer Load Capacity
- ≤80kg
- Standard Color
- Cabinet body
The Guang'ermei 4-Drawer Tool Cabinet is a standardized storage solution specifically designed for modern workshop workstations, combining structural strength, operational convenience, and visual uniformity. It is widely used in scenarios with high requirements for tool fixed-position management, such as electronic assembly lines, automotive parts repair areas, mold debugging workstations, and inspection laboratories.
Core Design Advantages
● Layered Load-Bearing Structure: Dual-layer drawer layout (2 x 100mm shallow drawers + 2 x 200mm deep drawers), suitable for categorized storage of small tools such as wrenches and screwdrivers, and medium-to-large equipment such as sockets and measuring instruments;
● High-Rigidity Cabinet Body: The main frame and side panels are made of 1.0mm premium cold-rolled steel, with drawer front panels thickened to 1.5mm, offering strong deformation resistance and ensuring long-term use without deformation or loosening;
● Stable Slide Rail System: Equipped with standard stamped single slide rails for smooth operation and precise return, verified for durability through 30,000 push-pull tests;
● 6S-Friendly Color Scheme: The cabinet body in gray-white (RAL 7035) paired with blue drawer front panels (RAL 5015) complies with manufacturing visual management standards and supports custom color schemes according to corporate VI.
Typical Application Scenarios
- Electronics Factory SMT Workshop — Centralized storage of ESD-safe tools such as soldering irons, desoldering pumps, and ESD tweezers
- Automotive 4S Shop Quick Repair Workstation — Categorized storage of torque wrenches, diagnostic instrument accessories, and specialized disassembly/assembly tools
- Mold Factory Bench Fitter Station — Nearby storage of files, scribes, micrometers, and standard gauge blocks to reduce walking waste
- Vocational College Training Center — Cultivating students' awareness of standardized tool placement and equipment maintenance
This product supports non-standard extensions: optional modular configurations include pegboard systems, label slots, lock upgrades (dual locks/password locks), bottom swivel casters (with brakes), and drawer internal dividers, meeting personalized workstation integration needs.
