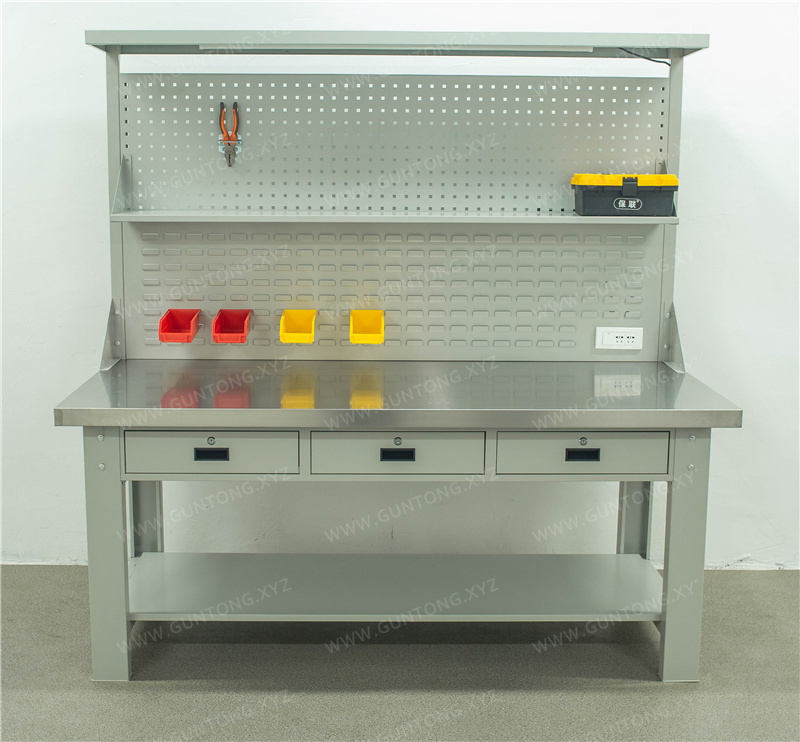

Double Pegboard 3-Drawer Double-Tier Stainless Steel Workbench
Independently developed by Guang'ermei Precision Components, this double pegboard, 3-drawer, double-tier stainless steel workbench features a modular bolt-together structure that combines high load capacity, flexible tool mounting, and multi-level storage. It is ideal for workshop environments such as electronic assembly, automotive parts inspection, and hardware mold maintenance, where cleanliness, corrosion resistance, and 6S management standards are critical.
Highlights
- Dual pegboard system (square hole + louver) supports dynamic tool layout and 6S visual management
- Three horizontally arranged drawers, each rated for 80 kg, optimized for high-frequency small-parts access
- Top work surface + lower shelf + optional pegboard shelf for three-tier vertical storage
- 1,000 kg total load capacity with C-channel cold-rolled steel frame and five-sided stainless steel-clad worktop for lasting durability
- Integrated LED lighting, industrial outlets, and power cord for plug-and-play operation compliant with production-line electrical standards
Specifications
- Common Dimensions (L × W × H, mm)
- 1500×750×800+1000 | 1800×750×800+1000 | 2100×750×800+1000
- Worktop Structure
- 1 mm 201 stainless steel, five-sided wrap over 49 mm high-density board; total thickness 50 mm; 1,000 kg load capacity
- Frame Material
- 1.5 mm cold-rolled steel plate, C-channel structure (100 × 50 mm cross-section)
- Drawer Configuration
- 3 horizontal drawers; internal cavity options: 320/420/520 × 430 × 115 mm; single-rail; 80 kg per drawer
- Pegboard System
- 450 mm high square-hole pegboard (10 × 10 mm) + 1 louver pegboard; 10 kg per hole
- Light Bar Configuration
- 1,000 mm height; includes 16 W LED lamp, dual/triple-hole combo outlet, and matching power cord
- Surface Treatment
- Acid wash & phosphating + electrostatic powder coating (250°C high-temperature bake); standard gray-white
- Packaging & Assembly
- Bolt-together modular structure; carton packaging; supports rapid on-site assembly with optional installation guidance
Double-Tier Stainless Steel Workbench Designed for High-Demand Workstations
This Double Pegboard 3-Drawer Double-Tier Stainless Steel Workbench is the flagship model in Guang'ermi Precision Components' 'Double Pegboard Series', integrating three core requirements: structural stability, space utilization, and on-site adaptability. The entire unit adopts a composite process of industrial-grade stainless steel and cold-rolled steel plate, supporting a pegboard tool system, drawer-based material management, and a double-tier work surface layout, meeting the comprehensive demands of modern workshops for functionality, durability, and standardized management.
Structural Highlights and Practical Configurations
- Double-Tier Work Platform: Main desktop + lower fixed shelf, forming upper and lower dual operation areas to improve vertical space utilization efficiency; optional pegboard shelf available to expand overhead storage capacity.
- Dual Pegboard Coordination System: Standard equipped with one 450mm high square hole pegboard (10×10mm hole spacing) and one louver pegboard, with a single hole load capacity of 10kg, compatible with universal hooks, trays, cable clips, and other lean accessories, supporting dynamic adjustment of tool layout.
- Three-Drawer Horizontal Layout: 3 independent drawers (internal dimensions available in 320/420/520×430mm), featuring a stamped single-rail structure with a load capacity of 80kg per drawer, smooth sliding operation, ideal for categorized storage of small workpieces, measuring tools, or consumables.
- Reinforced Load-Bearing Frame: C-type main frame (100×50mm cross-section), 1.5mm cold-rolled steel plate integrally bent and formed, with a total rated load capacity of 1000kg, ensuring no deformation under long-term heavy-duty use.
- Integrated Light Rack System: Top integrated 1000mm height light rack, including 16W LED fluorescent lamp, 2/3-hole combination socket, and power cord, ready to use upon installation, ensuring lighting and electrical safety.
Material and Process Standards
Desktop total thickness 50mm, composed of 1mm 201 stainless steel five-sided wrapping around 49mm high-density MDF base material, with a flat, scratch-resistant, acid-alkali resistant, and easy-to-clean surface; cabinet body adopts 1.0mm bare plate, structural components undergo pickling and phosphating + electrostatic spraying (250℃ high-temperature curing), gray-white as standard color, supporting custom colors and surface treatment processes on demand.
Flexible Delivery and Service Support
Available in three stock specifications: 1500×750×800+1000mm, 1800×750×800+1000mm, 2100×750×800+1000mm; non-standard sizes support rapid customization. The entire series adopts bolt-connected disassembly structure, carton packaging, convenient for transportation and on-site assembly. Guang'ermi provides full-process services from 3D solution design, factory inspection, logistics tracking to optional installation guidance.
