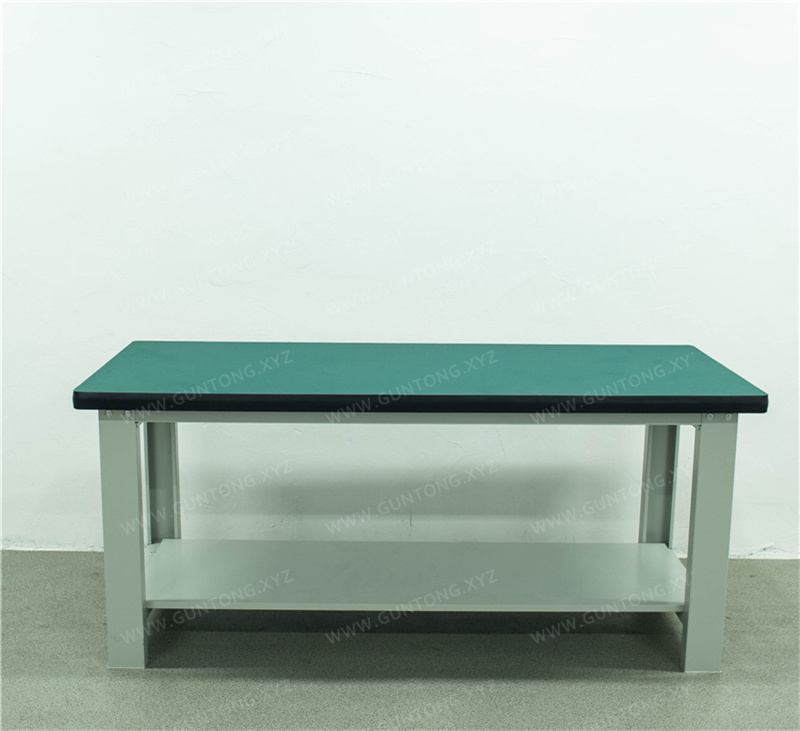

Double-Layer Composite Workbench Without Pegboard
The pegboard-free double-layer composite workbench, independently developed by Guang'ermei Precision Components, features a modular bolt-together structure and a high-load-capacity composite tabletop. It is designed for workstation scenarios that demand spatial flexibility and load stability, such as electronic assembly, automotive parts inspection, and hardware mold maintenance.
Highlights
- Pegboard-free design eliminates dust accumulation dead corners, enhancing 6S execution efficiency
- 50 mm composite tabletop: wear-resistant laminate + high-density board + PVC edge banding, impact-resistant and oil-proof
- C-channel cold-rolled steel frame supports up to 1000 kg, enabling long-term heavy-duty operation
- Modular bolt assembly facilitates factory inspection, logistics transport, and rapid on-site installation
Specifications
- Standard Dimensions (L × W × H)
- 1500 × 750 × 800 mm | 1800 × 750 × 800 mm | 2100 × 750 × 800 mm (custom sizes available upon request)
- Tabletop Structure
- 50 mm total thickness
- Frame Material
- 1.5 mm cold-rolled steel plate, C-channel cross-section 100 × 50 mm, pickled & phosphated + electrostatic powder coating
- Shelf Configuration
- 1 lower reinforced shelf (positioned directly beneath the tabletop)
- Standard Color
- Gray-white (custom RAL color codes available upon request)
- Packaging
- Knock-down carton packaging, including full set of fasteners and installation manual
Streamlined Structure · Reliable Load Capacity · Easy Installation
The Double-Layer Composite Workbench Without Pegboard is one of the core products in Guang'ermei's "Pegboard-Free Series." It abandons the traditional pegboard connection structure and enhances overall rigidity and visual simplicity through a C-type frame and direct bolt connection process. The tabletop features a 50mm thick composite structure: the surface layer is a 2mm green wear-resistant film (scratch-resistant and oil-resistant), the middle layer is a 48mm high-density board substrate, and the edges are embedded with black PVC protective strips, hot-pressed to ensure impact resistance and long-term flatness.
Core Structural Advantages
- Pegboard-Free Design: Eliminates side pegboards, reduces cleaning blind spots, and better aligns with 6S site management and cleanroom requirements;
- Double-Layer Load-Bearing Layout: A reinforced shelf is configured below the main tabletop, expanding temporary storage space for tools and materials;
- High-Rigidity Frame: 100×50mm cross-section C-type cold-rolled steel plate (1.5mm thick), pickled and phosphated with electrostatic powder coating (cured at 250°C high temperature), available in standard gray-white color with customization options;
- Ready-to-Use Assembly: Full bolt connection, packaged in separate cartons, supporting quick on-site assembly and flexible adjustments later.
Adaptable to Multi-Scenario Workstation Upgrades
This series of products has been widely used in PCBA production line auxiliary workstations, automotive braking system testing benches, mold repair area operating platforms, and vocational college training workbenches, meeting a 1000kg static load requirement. It is also compatible with anti-static accessories (such as grounding chains and conductive casters) and can be extended into an anti-static composite workbench solution as needed.
