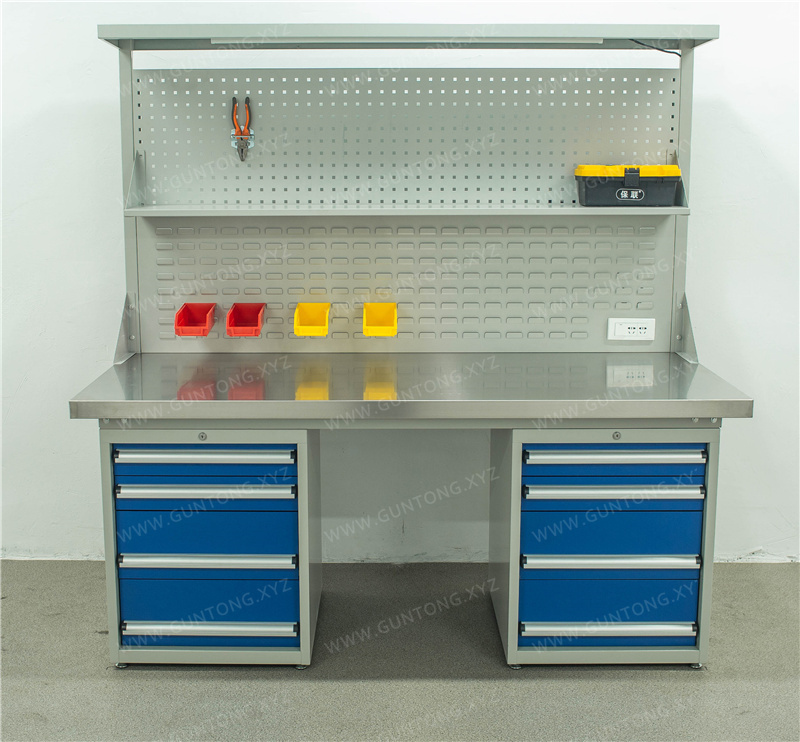

Double 4-Drawer Stainless Steel Workbench with Dual Pegboards
Independently developed by Guang'ermei Precision Components, the Double 4-Drawer Stainless Steel Workbench features a 1mm 201 stainless steel-clad high-density board tabletop and a C-shaped cold-rolled steel frame. It comes standard with square-hole and louvered dual pegboards and an integrated LED light rack, balancing high load capacity, modular expandability, and 6S workplace management requirements. It is ideal for high-cleanliness and high-corrosion-resistance environments such as electronics assembly, automotive parts inspection, and hardware mold workshops.
Highlights
- 1000kg overall load capacity with dual high-strength design for tabletop and frame
- Dual pegboards (square-hole + louvered) support tool visualization and dynamic adjustment
- Integrated LED lighting and industrial-grade sockets for plug-and-play installation without additional wiring
- Five-sided stainless steel-clad tabletop: acid/alkali resistant, easy to clean, and meets basic anti-static requirements
- Standard specifications available in stock with rapid customization response for non-standard sizes
Specifications
- Standard Dimensions (L×W×H, unit
- mm)
- Tabletop Structure
- 1mm 201 stainless steel five-sided cladding over 49mm high-density board, 50mm total thickness, 1000kg load capacity
- Frame Material
- C-shaped 100×50mm cross-section, 1.5mm cold-rolled steel plate, 1000kg overall load capacity
- Drawer Configuration
- 4 drawers per cabinet
- Pegboard System
- 450mm-high square-hole pegboard (10×10mm hole pitch) + 1 louvered pegboard; 10kg load per hole
- Light Rack & Electrical
- 1000mm height; includes 16W LED light, 2/3-hole combo socket, independent switch, and power cord
- Surface Treatment
- Gray-white powder electrostatic spray coating (baked at 250°C), custom colors available
- Packaging & Installation
- Knock-down bolted structure, carton packaging, on-site installation guidance available
Double 4-Drawer Stainless Steel Combination Workbench Designed for Lean Manufacturing
The Double 4-Drawer Stainless Steel Workbench with Dual Pegboards, launched by Guang'ermei Precision Components, is a highly adaptable flagship model in the combination cabinet series. Integrating structural stability, functional scalability, and on-site management friendliness, it is widely used in manufacturing workstation scenarios with specific requirements for dustproofing, corrosion resistance, load-bearing capacity, and visual tool management.
Core Structural Advantages
- Integrated High-Strength Worktop: 50mm total thickness, 1mm 201 stainless steel five-sided cladding over 49mm high-density substrate, flat and scratch-resistant surface with a load capacity of up to 1000kg, meeting the needs of heavy-duty tooling and precision inspection;
- Sturdy Load-Bearing Frame: C-section 100×50mm main frame, integrally formed from 1.5mm cold-rolled steel plate, with a rated load capacity of 1000kg for the entire unit, supporting long-term high-frequency use;
- Dual Pegboard Tool Management System: Equipped with one 450mm-high square-hole pegboard (10×10mm hole pitch) and one louver pegboard, each hole supporting 10kg, compatible with standard hooks, tool racks, and label systems, facilitating 6S visual management implementation;
- Integrated Smart Lighting Solution: 1000mm height-adjustable light stand, pre-installed with a 16W LED fluorescent lamp, a 2-in-1 socket with two and three holes, and an independent switch, ready to use out of the box, enhancing safety and efficiency for nighttime operations.
Flexible Configuration and Process Assurance
Available in three standard specifications: 1500×750×800+1000mm, 1800×750×800+1000mm, and 2100×750×800+1000mm, all supporting in-stock delivery; non-standard sizes can be customized on demand. The cabinet body features a 1.0mm cold-rolled steel main body with 1.5mm drawer panels, paired with aluminum alloy handles and insertable label slots; surface treatment supports gray-white powder electrostatic spraying (cured at 250°C high temperature), and processes such as pickling and phosphating can also be selected per customer requirements.
Modular Design, Adaptable to Production Line Upgrades
Fully bolted disassembly structure with standardized carton packaging for easy transportation and rapid on-site assembly. Drawers adopt a stamped single-rail design, including two 100mm-high drawers and two 200mm-high drawers, with an internal space of 460×460mm and a load capacity of 80kg per drawer, meeting tiered and categorized storage needs. As a key unit in the combination cabinet series, it seamlessly integrates with other Guang'ermei workstation equipment (such as tool cabinets, mold racks, and lean pipe accessories), supporting flexible workshop layout and continuous improvement.
