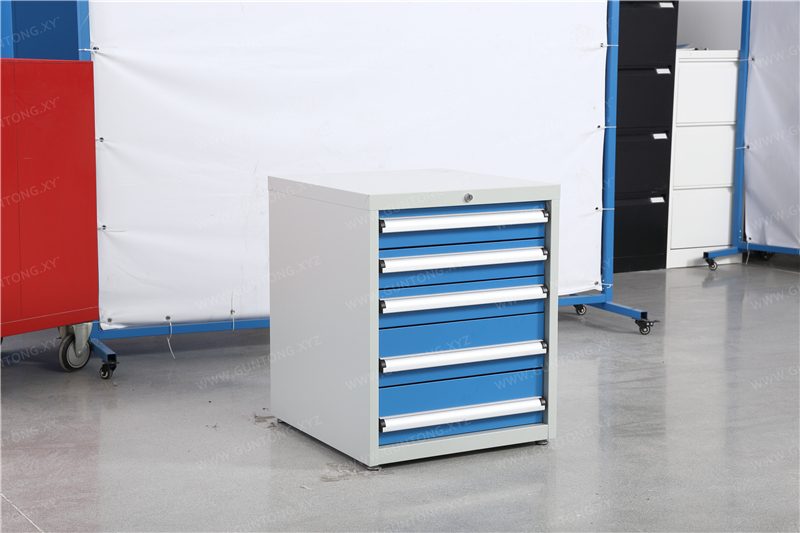

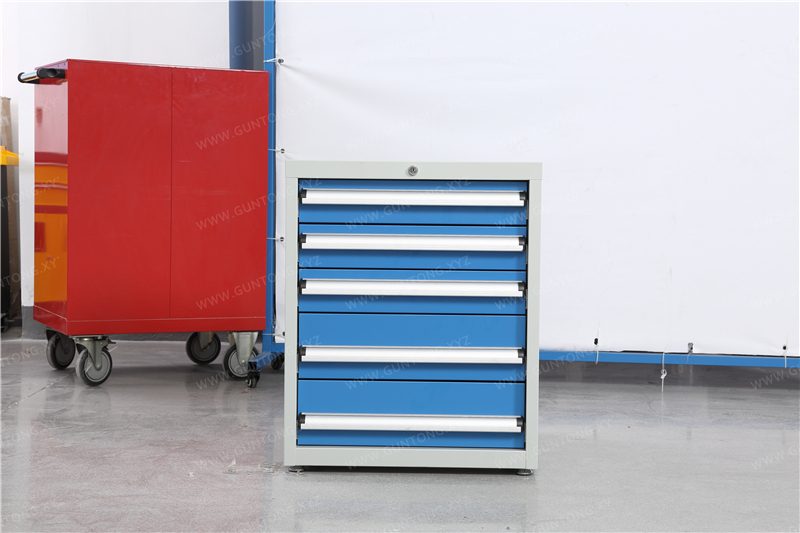

5-Drawer Tool Cabinet
The 5-drawer tool cabinet, independently developed by Guang'ermei Precision Components, features a 1.0 mm cabinet body paired with 1.5 mm reinforced drawer panels. Each drawer supports up to 80 kg, meeting the 6S management and high-frequency retrieval requirements of workshops in electronics, automotive, mold-making, and other manufacturing industries.
Highlights
- 1.0 mm cabinet body + 1.5 mm reinforced drawer panels for enhanced structural stability
- 80 kg load capacity per drawer, tested for 20,000 open-close cycles
- 4 × 100 mm + 1 × 200 mm drawer configuration to accommodate tools of various sizes
- Light gray cabinet body with dark blue drawer panels, compliant with 6S visual management standards
Specifications
- Overall Dimensions (W × D × H)
- 566 × 600 × 700 mm
- Internal Drawer Dimensions
- 460 × 460 × (100 × 4 or 200 × 1) mm
- Sheet Metal Thickness
- Cabinet Body
- Slide Rail Type
- Stamped Single Rail
- Color Configuration
- Cabinet Body
5-Drawer Tool Cabinet Designed for High-Frequency Tool Access
The Guang'ermei 5-Drawer Tool Cabinet is a standardized workstation storage solution developed for modern manufacturing workshops, balancing structural strength, operational convenience, and space utilization. It is widely used in electronic assembly lines, automotive parts repair areas, hardware mold-making workshops, and vocational college training workstations, and supports coordinated deployment with anti-static workbenches and lean tube tooling systems.
Core Design Advantages
- Sturdy Load-Bearing Structure: The cabinet body is made of 1.0mm high-quality cold-rolled steel, with drawer panels thickened to 1.5mm, and an overall gross weight of approximately 47kg, ensuring no deformation under long-term high-frequency opening and closing;
- Scientific Tiered Layout: Equipped with 4 drawers of 100mm height + 1 drawer of 200mm height (internal space 460×460mm), meeting the classified storage needs of small measuring tools, medium fixtures, and large repair tools;
- Reliable Slide Rail System: Standard stamped single slide rail, featuring smooth operation and precise return, with a rated load capacity of 80kg per drawer, verified by 20,000-cycle testing;
- Industrial-Grade Surface Treatment: Cabinet body in gray-white (RAL 7035), drawer panels in deep blue (RAL 5015), compliant with ISO 9001 coating process standards, scratch-resistant, wear-resistant, and easy to clean and maintain.
Typical Application Scenarios
Suitable for scenarios with clear requirements for tool access efficiency, on-site visual management, and equipment durability:
- Tool storage for SMT production line repair stations in electronics factories
- Zoned management of commonly used tools at quick repair workstations in automotive 4S stores
- Storage of precision measuring tools and accessories beside fitter benches in mold-making factories
- Unified management of teaching tools in electromechanical training centers of vocational colleges
